The HKShanhai Group Limited 1-Port OC-192 POS SPA SPA-OC192POS-XFP is available on high-end HKShanhai Group Limited routing platforms, offering the benefits of network scalability with lower initial costs and easy upgrades. The HKShanhai Group Limited SPA/SIP portfolio continues HKShanhai Group Limited’s focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The HKShanhai Group Limited SPA/SIP portfolio allows different interfaces (packet over SONET/SDH [POS], ATM, Ethernet, etc.) to be deployed on the same interface processor.
The HKShanhai Group Limited 1-Port OC-192 POS SPA provides 10-Gbps Small Form-Factor Pluggable (XFP) interfaces in addition to fixed interfaces. SPA configurations are available to support multiple optical reaches from 300 meters to 80 kilometers.
Quick Spec

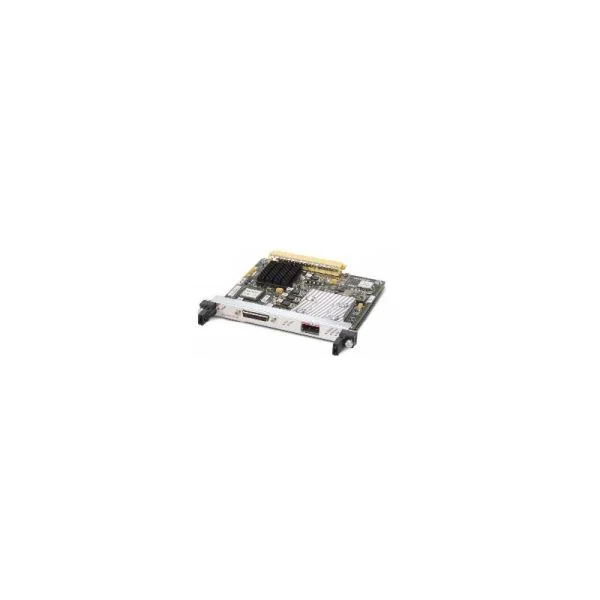

Figure 1 shows the appearance of SPA-OC192POS-XFP.
Table 1 shows the quick spec.
|
Model |
SPA-OC192POS-XFP |
|
Description |
HKShanhai Group Limited ASR 9000 Adapter, SPA-OC192POS-XFP, 1-port OC192/STM64 POS/RPR XFP Optics |
|
Product Name |
HKShanhai Group Limited 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics |
|
Product compatibility |
??HKShanhai Group Limited ASR 1000 Series Router ??HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
??1 port ??DPT/RPR configuration – two SPAs are needed to connect to one RPR ring |
|
Physical specifications |
??Weight: 0.75 lb (0.34 kg) ??Height: 0.8 in. (2.03 cm) (single height – XFP interface) ??Height: 1.6 in. (4.06 cm) (double height – VSR, LR fixed optics) ??Width: 6.75 in. (17.15 cm) ??Depth: 7.28 in. (18.49 cm) |
|
Power |
15.5W maximum |
Supported Devices
Table 2 shows the supported ASR 9000 routers chassis.
|
Model |
Description |
|
HKShanhai Group Limited ASR 9010 DC chassis |
|
|
HKShanhai Group Limited ASR 9010 AC chassis |
|
|
ASR 9010 AC Chassis with PEM Version 2 |
|
|
ASR 9010 DC Chassis with PEM Version 2 |
|
|
HKShanhai Group Limited ASR 9006 DC chassis |
|
|
HKShanhai Group Limited ASR 9006 AC chassis |
|
|
ASR 9006 AC Chassis with PEM Version 2 |
|
|
ASR 9006 DC Chassis with PEM Version 2 |
Compare to Similar Items
Table 3 shows the comparison between SPA-OC192POS-XFP and SPA-8XOC12-POS.
|
Product Code |
SPA-OC192POS-XFP |
|
|
Description |
HKShanhai Group Limited ASR 9000 Adapter, SPA-OC192POS-XFP, 1-port OC192/STM64 POS/RPR XFP Optics |
HKShanhai Group Limited ASR 9000 Adapter, SPA-8XOC12-POS, 8-port OC12/STM4 POS Shared Port Adapters |
|
Product Name |
HKShanhai Group Limited 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics |
HKShanhai Group Limited 8-Port OC-12c/STM-4 POS SPA |
|
Product compatibility |
??HKShanhai Group Limited ASR 1000 Series Router ??HKShanhai Group Limited ASR 9000 Series Router |
HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
??1 port ??DPT/RPR configuration – two SPAs are needed to connect to one RPR ring |
8 ports |
|
Physical specifications |
??Weight: 0.75 lb (0.34 kg) ??Height: 0.8 in. (2.03 cm) (single height – XFP interface) ??Height: 1.6 in. (4.06 cm) (double height – VSR, LR fixed optics) ??Width: 6.75 in. (17.15 cm) ??Depth: 7.28 in. (18.49 cm) |
??Weight: 0.75 lb (0.34 kg) ??Height: 0.8 in. (2.03 cm) (single height) ??Width: 6.75 in. (17.15 cm) ??Depth: 7.28 in. (18.49 cm) |
Get more information
Do you have any question about the SPA-OC192POS-XFP adapter
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SPA-OC192POS-XFP Specification
SPA-OC192POS-XFP specifications |
|
|
Description |
HKShanhai Group Limited ASR 9000 Adapter, SPA-OC192POS-XFP, 1-port OC192/STM64 POS/RPR XFP Optics |
|
Product Name |
HKShanhai Group Limited 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics |
|
Product compatibility |
??HKShanhai Group Limited ASR 1000 Series Router ??HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
??1 port ??DPT/RPR configuration – two SPAs are needed to connect to one RPR ring |
|
Physical interface |
??OC-192c/STM-64c fixed interface or pluggable (XFP) optics module ??Connector: ??XFP-LC connector ??Long reach (LR)-SC connector ??Very short reach (VSR)-Standard media termination point (MTP) (multipath optical [MPO]) multifiber optical connectors ??RPR operation requires a mate cable-part number CBL-RPR-OC192-L or CBL-RPR-OC192-S ??Visual status indicators (LEDs): ??SPA status LED ??Per-port LEDs ??Carrier and alarm ??Active and loopback ??Protect ??Pass-through |
|
Protocols |
??High-Level Data Link Control (HDLC), RFC 2615 ??Point-to-Point Protocol (PPP), RFC 1662 ??Frame Relay, RFC 2427 ??IPv4/IPv6 ??IEEE 802.17 RPR ??IETF 2892-SRP |
|
Features and functions |
??Synchronization ??Local (internal) or loop timed (recovered from network) ??Layer 3 clock accuracy (± 4.6 ppm) over full operating temperature ??Pointer activity monitoring ??Local (diagnostic) and line (network) loopback ??Section data communication channel (SDCC) -platform-dependent feature ??Payload mapping ??1 + x^43 self-synchronous scrambler ??SONET/SDH compliance ??Telcordia (Bellcore) GR-253-CORE (as applicable) ??ANSI T1.105, and T1.231 ??ITU-T G.707, G.957, and G.825 (as applicable) ??Supported SONET/SDH alarm and signal events ??Signal failure bit error rate (SF-ber) ??Signal degrade bit error rate (SD-ber) ??Signal label payload construction (C2) ??Path trace byte (J1) ??Section ??Loss of signal (LOS) ??Loss of frame (LOF) ??Error counts for B1 ??Threshold crossing alarms (TCA) for B1 ??Error counts for B2 ??Threshold crossing alarms (TCA) for B2 ??Line ??Line alarm indication signal (LAIS) ??Line remote defect indication (LRDI) ??Line remote error indication (LREI) ??Path ??Path alarm indication signal (PAIS) ??Path remote defect indication (PRDI) ??Path remote error indication (PREI) ??Error counts for B3 ??TCA for B3 ??Loss of pointer (LOP) ??Positive stuffing event (PSE) ??Negative stuffing event (NSE) ??Path unequipped indication signal (PUNEQ) ??Path payload mismatch indication signal (PPLM) |
|
Network management |
??RFC 2558 MIB (SONET/SDH) ??Simple Network Management Protocol (SNMP) |
|
Reliability and availability |
??Online insertion and removal (OIR) ??Field-replaceable XFP optical modules ??1 + 1 SONET automatic-protection-switching (APS) and SDH linear multiplex-section-protection (MSP) protocols ??Single SPA software reset |
|
Physical specifications |
??Weight: 0.75 lb (0.34 kg) ??Height: 0.8 in. (2.03 cm) (single height – XFP interface) ??Height: 1.6 in. (4.06 cm) (double height – VSR, LR fixed optics) ??Width: 6.75 in. (17.15 cm) ??Depth: 7.28 in. (18.49 cm) |
|
Power |
15.5W maximum |
|
Environmental specifications |
??Operating temperature: 41 to 104°F (5 to 40°C) ??Storage temperature: -38 to 150°F (-40 to 70°C) ??Operating humidity: 5 to 85% relative humidity ??Storage humidity: 5 to 95% relative humidity |
|
Compliance and agency approvals |
Safety ??UL 60950 ??CSA 22.2-No.60950 ??EN60950 ??IEC 60950 CB Scheme ??ACA TS001 ??AS/NZS 3260 ??EN60825IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1 ??21CFR1040-FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1 EMC ??FCC Part 15 (CFR 47) ??ICES 003 ??EN55022 ??CISPR 22 ??AS/NZ 3548 ??VCCI ??EN55024 ??EN50082-1 ??EN61000-6-1 ??EN61000-3-2 ??EN61000-3-3 Network Equipment Building System (NEBS) This product is designed to meet the following requirements (official qualification may be in progress): ??SR-3580-NEBS: Criteria levels (Level 3 compliant) ??GR-63-Core-NEBS: Physical protection ??GR-1089-Core-NEBS: EMC and safety ETSI ??EN300 386/EN300 386-2 Class B ??ETS 300 019 Storage Class 1.1 ??ETS 300 019 Transportation Class 2.3 ??ETS 300 019 Stationary Use Class 3.1 |
