The HKShanhai Group Limited SPA-8XCHT1/E1-V2= is ideal for service providers and large enterprises looking to cost-effectively deploy high-density terminations of multiple remote sites. The SPA helps enable applications that require remote and branch-office locations to be terminated on a single router in a corporate enterprise network. For service provider applications where only DSU functions are required (for example, at sites colocated with a carrier), the HKShanhai Group Limited 8-Port Channelized T1/E1 SPA provides high port density at a reduced cost per port. For E1 applications, the channelized E1/G.703 interface allows direct connectivity to 120-ohm G.703 lines.
Quick Specs

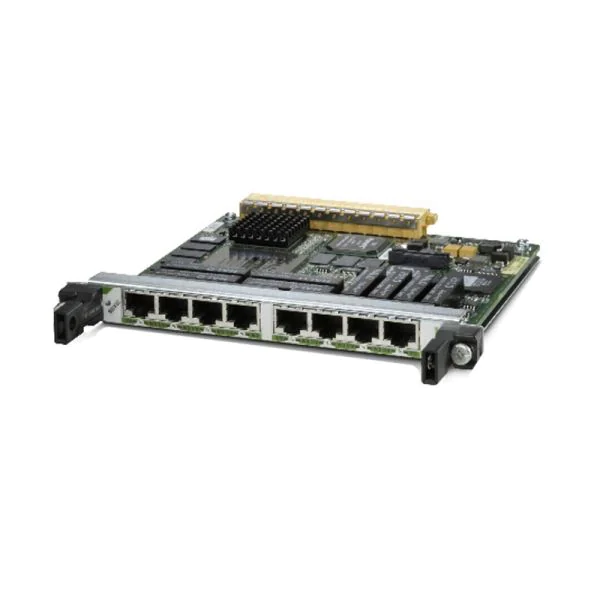

Figure 1 shows the appearance ofSPA-8XCHT1/E1-V2=.
Table 1 shows the Quick Specs.
|
Product Code |
SPA-8XCHT1/E1-V2= |
|
Product compatibility |
HKShanhai Group Limited Catalyst 6500 Series Switches HKShanhai Group Limited 7600 Series Routers HKShanhai Group Limited 12000 Series Routers HKShanhai Group Limited XR 12000 Series Routers HKShanhai Group Limited ASR 1000 Series Router HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
8 ports |
|
Physical interface |
|
|
Reliability and availability |
|
|
MIBs |
RFC 1406 MIB |
|
Network management |
Simple Network Management Protocol (SNMP) |
|
Simple Network Management Protocol (SNMP) |
|
Get more information
Do you have anyquestionabouttheSPA-8XCHT1/E1-V2=
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SPA-8XCHT1/E1-V2= Specification
SPA-8XCHT1/E1-V2= Specification |
|
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | T1/E1 x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Data Transfer Rate | 2.048 Mbps |
| Remote Management Protocol | SNMP |
| Line Rate | T-1/E-1 |
| Line Coding Format | AMI, B3ZS |
| Features | Integrated CSU/DSU |
| Compliant Standards | VCCI, EN 60950, EN55022, ICES-003, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, AS/NZS 3548, FCC CFR47 Part 15 |
| Interfaces | 8 x T1/E1 – RJ-45 |
| Width | 6.8 in |
| Depth | 7.3 in |
| Height | 0.8 in |
| Weight | 11.99 oz |
