The HKShanhai Group Limited SPA-5X1GE-V2Â is available on high-end HKShanhai Group Limited routing platforms, offering the benefits of network scalability with lower initial costs and ease of upgrades. The HKShanhai Group Limited SPA portfolio continues the company’s focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The HKShanhai Group Limited SPA portfolio allows deployment of different interfaces (Packet over SONET/SDH [PoS], ATM, Ethernet, etc.) on the same interface processor.
This SPA-5X1GE-V2Â is similar with the SPA-5X1GE-V2=. The SPA-5X1GE-V2=Â is a spare one.
Product Features
The HKShanhai Group Limited SPA/SIP portfolio offers many advantages, including the following:
- ??Modular, flexible, intelligent interface processors
??Flexible design allows mixing and matching of interface types on the same interface processor for consistent services, independent of access technology.
??Programmable interface processors provide flexibility for the service diversity required in next-generation networks.
– Innovative design provides intelligent delivery of services without compromising performance.
- ??Increased speed-to-service revenue
??The programmable HKShanhai Group Limited architecture extended to 10 Gigabits per second dramatically improves customer density, increasing potential revenue per platform and facilitating compatibility with future versions.
??Interface breadth (copper, channelized, POS, ATM, and Ethernet) on a modular interface processor allows service providers to quickly roll out new services, facilitating consistent, secure services for all customers, large and small.
??XFP interfaces are featured for high-port-count applications with reach flexibility. Future optical technology improvements can be adopted using existing SPAs.
- ??Dramatically improved financials for your routing purchase
??Improved slot economics and increased density reduce capital expenditures (CapEx).
??The ability to easily add new interfaces as they are needed facilitates a “pay-as-you-grow” business model while still offering a high-density solution.
??SPAs are shared across multiple platforms and can be easily moved from one to another, providing consistent feature support, accelerated product delivery, and a significant reduction in operating expenses (OpEx) through common sparing as service needs change.
Quick Specs

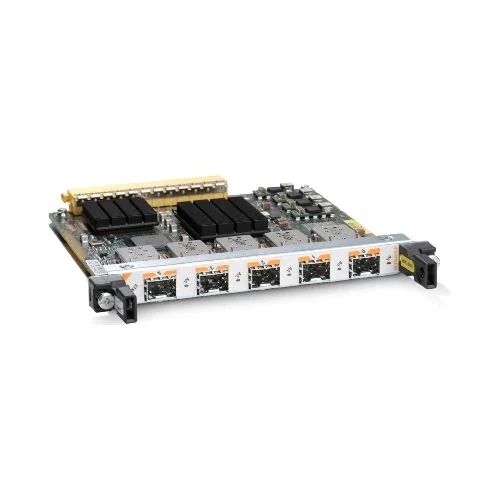

Figure 1 shows the appearance of SPA-5X1GE-V2.
Â
Product Applications
The HKShanhai Group Limited 1-Port 10-GE SPAs can be used in any combination of the following applications:
- ??Residential Triple Play
- ??Metro Ethernet Services
- ??Converged Residential and Business Services
- ??Internet Peering
- ??Inter- and intra-point of presence (POP) Aggregation
Table 1 shows the Quick Specs.
|
Product Code |
SPA-5X1GE-V2 |
|
Port density per SPA |
2*, 5, 8, or 10 Gigabit Ethernet ports * Usable in combination of SFP and RJ-45 ports for a total of 2 Gigabit Ethernet ports |
|
Reliability and availability |
|
|
Power |
|
Get more information
Do you have any question about the SPA-5X1GE-V2?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SPA-5X1GE-V2 Specification
SPA-5X1GE-V2 Specification |
|
|
Product compatibility |
??HKShanhai Group Limited Catalyst 6500 Series Switches (2 and 10-port GE SPAs) ??HKShanhai Group Limited 7600 Series Router (2-, 5-, and 10-port GE SPAs) ??HKShanhai Group Limited 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs) ??HKShanhai Group Limited XR 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs) ??HKShanhai Group Limited ASR 1000 Series Router (2-, 5-, 8-, and 10-port GE SPAs) ??HKShanhai Group Limited CRS Carrier Routing System (5-, 8-, and 10-port GE SPAs) ??HKShanhai Group Limited 10000 Series Router (2 and 5-port GE SPAs) |
|
Port density per SPA |
2*, 5, 8, or 10 Gigabit Ethernet ports * Usable in combination of SFP and RJ-45 ports for a total of 2 Gigabit Ethernet ports |
|
Physical interfaces |
??Short wavelength (SX) ??Long reach/long haul (LX/LH) ??Extended distance (ZX) SFP ??SFP-GE-T (5-, 8-, and 10-port Gigabit Ethernet SPAs) ??Built-in RJ-45 (2-port Gigabit Ethernet SPA) |
|
LED indicators |
SPA status: Bicolor green and amber LEDs encode the SPA status as follows: ??LED off: SPA is powered off ??LED amber: SPA is powered on and initializing ??LED green: SPA is powered on and operational In addition to the status LED, the SPAs also have a bicolor, surface-mount, right-angle LED dedicated to each port to indicate port status. The green and amber LEDs encode the port status as follows: ??LED off: Port is not enabled by software ??LED: Port is enabled by software, but there is a problem with the Ethernet link ??LED green: Port is enabled by software, and there is a valid Ethernet link |
|
Features and functions |
??Autonegotiation ??Full-duplex operation ??802.1Q VLAN termination ??802.1ad QinQ termination (stacked VLAN processing) ??Jumbo Frames support (9188 bytes) ??Support for command-line interface (CLI)-controlled online insertion and removal (OIR) ??802.3x flow control ??Bridge protocol data unit (BPDU), HKShanhai Group Limited Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering ??Layer 2 Protocol (BPDU, HKShanhai Group Limited Discovery Protocol, and VTP) Tunneling ??Layer 2 access list (MAC address-based filtering) ??Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q ??Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress) ??Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port ??Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets ??Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets ??Per-port byte counters for good bytes and dropped bytes |
|
Network management |
Network management using: ??Host-system CLI ??Simple Network Management Protocol (SNMP) Inventory- and asset management-related MIBs: ??Entity-MIB (RFC 2737) ??HKShanhai Group Limited-entity-asset-MIB Fault management: ??HKShanhai Group Limited-entity-field-replaceable unit (FRU)-control-MIB ??HKShanhai Group Limited-entity-alarm-MIB ??HKShanhai Group Limited-entity-sensor-MIB Physical interface management: ??IF-MIB ??Etherlike-MIB (RFC 2665) Other MIBs: ??Remote Monitoring (RMON)-MIB (RFC 1757) ??HKShanhai Group Limited-class-based-QoS-MIB ??MPLS-related MIBs ??Ethernet MIB/RMON |
|
Reliability and availability |
??OIR of the SPA within the SIP and the optics within the SPA ??Field-replaceable SFP optical modules |
|
Physical specifications |
Weight: 0.75 lb (0.34 kg) Height: 0.8 in. (2.03 cm) (single height) Width: 6.75 in. (17.15 cm) Depth: 7.28 in. (18.49 cm) |
|
Power |
5-port Gigabit Ethernet SPA: 18.1W |
|
Environmental specifications |
??Storage temperature: -38 to 150°F (-40 to 70°C) ??Operating temperature, nominal: 32 to 104°F (0 to 40°C) ??Operating temperature, short term: 32 to 131°F (0 to 55°C) ??Storage relative humidity: 5 to 95% relative humidity ??Operating humidity, nominal: 5 to 85% relative humidity ??Operating humidity, short term: 5 to 90% relative humidity ??Operating altitude: -60 to 4000m |
|
Compliance and agency approvals |
Safety ??UL 60950-1 ??CSA C22 No. 60950-1 ??EN 60950-1 ??IEC 60950-1 ??AS/NZS 60950 ??EN 60825-1 ??EN 60825-2 ??21 CRF 1040 EMC ??CFR 47 ??FCC Part 15-Class A ??ICES 003-Class A ??CISPR 22 Class A ??EN 55022 Class A ??EN 300386 Class A ??AS/NZS Class A ??VCCI-Class B ??EN 50082-1 ??EN 55024 ??IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air) ??IEC/EN61000-4-3 Radiated Immunity (10 V/m) ??IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal) ??IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM) ??IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor) ??IEC/EN61000-4-5 Surge DC Port (1 kV) ??IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms) ??IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m) ??IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations Telecom ??IEEE 802.3z Industry Standards The HKShanhai Group Limited Gigabit Ethernet SPAs are designed to meet the following requirements (some qualifications are currently in progress): ??SR-3580 Network Equipment Building Standards (NEBS): criteria levels (Level 3 compliant) ??GR-63-CORE-NEBS: Physical protection ??GR-1089-CORE-NEBS EMC and safety |
