SPA-1XCHOC48/DS3 is the HKShanhai Group Limited ASR 9000 and XR 12000 Series Shared Port Adapter. This HKShanhai Group Limited 1-Port Channelized OC-48/STM-16 SPA is available on high-end HKShanhai Group Limited routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The HKShanhai Group Limited SPA/SIP portfolio continues the HKShanhai Group Limited focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The HKShanhai Group Limited SPA/SIP portfolio allows different interfaces (Packet over SONET/SDH [POS], ATM, Ethernet, etc.) to be deployed on the same interface processor.
Quick Specs

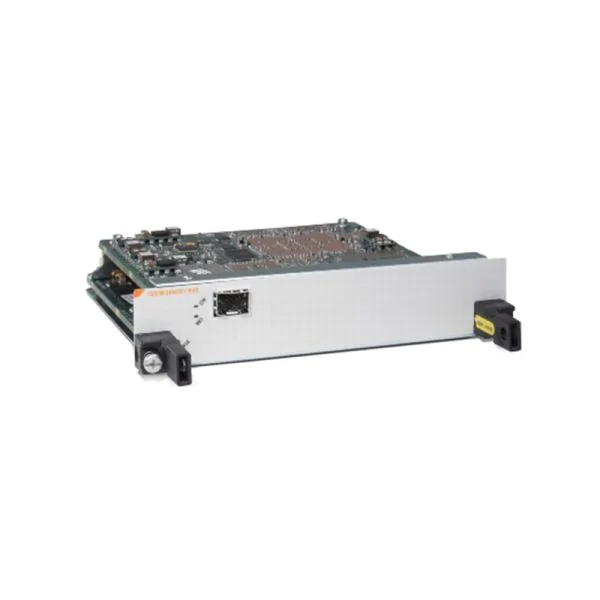

This figure shows the appearance of SPA-1XCHOC48/DS3.
Table 1 shows the quick specs.
|
Model |
SPA-1XCHOC48/DS3 |
|
Type |
SPA-1XCHOC48/DS3 HKShanhai Group Limited ASR 9000 Series & XR 12000 Shared Port Adapter |
|
Product compatibility |
HKShanhai Group Limited XR 12000 Series Routers HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
1-port Channelized OC-48/STM-16 |
|
Physical interface |
OC-48c/STM-16 Small Form-Factor Pluggable (SFP) optics module (refer to optical parameters in Table 2) Visual status indicators (LEDs):
|
|
Physical specifications |
|
|
Power |
|
Compare to Similar Item
Table 2 shows the comparison between SPA-2XCHOC12/DS0 and SPA-1XCHOC48/DS3.
|
Model |
SPA-1XCHOC48/DS3 |
|
|
Type |
HKShanhai Group Limited ASR 9000 Series Shared Port Adapter |
SPA-1XCHOC48/DS3 HKShanhai Group Limited ASR 9000 Series & XR 12000 Shared Port Adapter |
|
Product compatibility |
HKShanhai Group Limited ASR 9000 Series Router |
HKShanhai Group Limited XR 12000 Series Routers HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
2-port channelized OC-12/STM-4 |
1-port Channelized OC-48/STM-16 |
Get more information
Do you have any question about the HKShanhai Group Limited SPA-1XCHOC48/DS3
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SPA-1XCHOC48/DS3 Specification
SPA-1XCHOC48/DS3 Specifications |
|
|
Type |
SPA-1XCHOC48/DS3 HKShanhai Group Limited ASR 9000 Series & XR 12000 Shared Port Adapter |
|
Product compatibility |
HKShanhai Group Limited XR 12000 Series Routers HKShanhai Group Limited ASR 9000 Series Router |
|
Port density per SPA |
1-port Channelized OC-48/STM-16 |
|
Physical interface (Channelized OC-48) |
OC-48c/STM-16 Small Form-Factor Pluggable (SFP) optics module (refer to optical parameters in Table 2) Visual status indicators (LEDs): ??SPA status LED ??Per-port LEDs ??Carrier and alarm ??Active and loopback |
|
Protocols |
??IETF RFC 1490, Frame Relay Encapsulation ??RFC 1662, Point-to-Point Protocol (PPP) in High-Level Data Link Control (HDLC)-like framing ??HKShanhai Group Limited HDLC ??PPP, HDLC, and Frame Relay User Network Interface (UNI) encapsulations |
|
Features and functions |
DS3 ??Full- and half-duplex connectivity at DS-3 rate (44.736 MHz) ??Scrambling and subrate support of major data-service-unit (DSU) vendors ??C-bit or M23 framing in DS-3 mode ??G.751 or G.832 in E3 mode ??Support for 16- and 32-bit cyclic redundancy check (CRC) (16-bit default) ??24-hour history maintained for error statistics and failure counts ??DS-3 alarm and event detection (once-per-second polling) ??Alarm indication signal (AIS) ??Out of frame (OOF) ??Far-end receive failure (FERF) |
|
SONET errors, alarms, and performance monitoring |
Synchronization ??Local (internal) or loop timed (recovered from network) ??Pointer activity monitoring Local (diagnostic) and line (network) loopback Payload mapping ??POS with 1 + X^43 self-synchronous scrambler SONET/SDH compliance ??Telcordia (Bellcore) GR-253-CORE (as applicable) ??ANSI T1.105, T1.231 ??ITU-T G.707, G.957, G.825 (as applicable) Supported SONET/SDH alarm and signal events ??Signal failure bit error rate (SF-ber) ??Signal degrade bit error rate (SD-ber) ??Signal label payload construction (C2) ??Path trace byte (J1) ??Section ??Loss of signal (LoS) ??Loss of frame (LoF) ??Error counts for B1 ??Threshold crossing alarms (TCA) for B1 ??Line ??Line alarm indication signal (LAIS) ??Line remote defect indication (LRDI) ??Line remote error indication (LREI) ??Error counts for B2 ??TCA for B2 ??Path ??Path alarm indication signal (PAIS) ??Path remote defect indication (PRDI) ??Path remote error indication (PREI) ??Error counts for B3 ??TCA for B3 ??Loss of pointer (LoP) ??Positive stuffing event (PSE) Negative stuffing event (NSE) Path unequipped indication signal (PUNEQ) Path payload mismatch indication signal (PPLM) |
|
Network management |
??SONET-MIB (RFC 3592) ??SONET/SDH-MIB (RFC 2558) ??CISCO-SONET-MIB ??DS-3/E3-MIB (RFC 3896) ??Simple Network Management Protocol (SNMP) |
|
Reliability and availability |
??Online insertion and removal (OIR) ??Field-replaceable SFP optical modules ??1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols ??Single SPA software reset |
|
Physical specifications |
??Weight: 1.27 lb (0.57 kg) ??Height: 1.56 in. (3.96 cm) (double height) ??Width: 6.75 in. (17.15 cm) ??Depth: 7.28 in. (18.49 cm) |
|
Power |
??1-port Channelized OC-48/STM-16 = 44W (with optics) |
|
Environmental specifications |
??Operating temperature: 41 to 104°F (5 to 40°C) ??Storage temperature: -38 to 150°F (-40 to 70°C) ??Operating humidity: 5 to 85% relative humidity ??Storage humidity: 5 to 95% relative humidity |
|
Compliance and agency approvals |
Safety ??UL/CSA 60950-1 ??IEC/EN 60950-1 ??AS/NZS 60950.1 ??EN60825/IEC60825 laser safety ??21CFR1040 -FDA Code of Federal Regulations (USA) laser safety EMC ??FCC Part 15 (CFR 47) ??ICES 003 ??CISPR 22 ??AS/NZS CISPR22 ??VCCI ??EN55022 ??EN55024 ??EN300 386 ??EN50082-1 ??EN61000-6-1 Network Equipment Building Standards (NEBS) This product is designed to meet the following requirements (official qualification may be in progress): ??SR-3580 – NEBS: Criteria levels (Level 3 compliant) ??GR-63-CORE – NEBS: Physical Protection ??GR-1089-CORE – NEBS: EMC and Safety |
