The HKShanhai Group Limited SPA-1CHSTM1/OC3V2=,1-Port STM-1/OC-3 SPA Version 2 enables customers to scale services by upgrading bandwidth from DS-0/E1 to T3/E3 connections – all without any additional interfaces in their routers.
Quick Specs

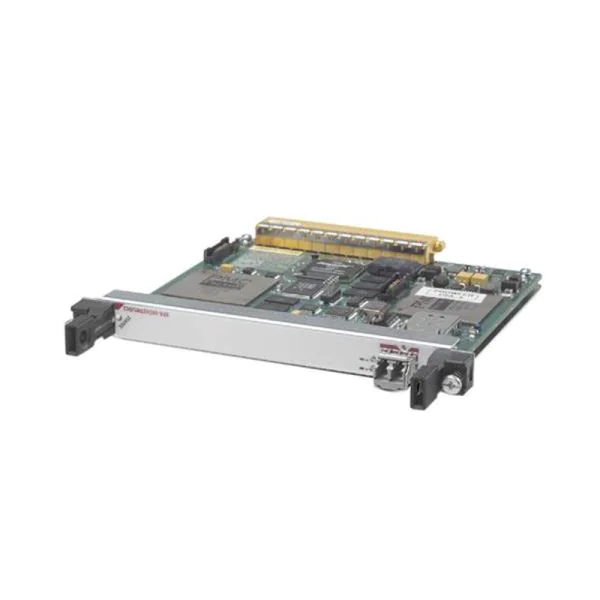

Figure 1 shows the appearance ofSPA-1CHSTM1/OC3V2=.
Table 1 shows the Quick Specs.
|
Product Code |
SPA-1CHSTM1/OC3V2= |
|
Product compatibility |
|
|
Minimum software version |
|
|
Protocols |
Serial encapsulations: *High-Level Data Link Control (HDLC) Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle): *Multilink PPP (MLPPP), RFC 1990 Networking protocols: *IPv4/IPv6 |
|
Cards, ports, and slots |
1 port |
|
Reliability and availability |
OIR Field-replaceable SFP optics modules Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols Single SPA software reset |
|
MIBs |
RFC 2558 MIB (SONET/SDH) RFC 2495 MIB (T1/E1) RFC 2496 MIB (T3/E3) |
|
Network management |
Simple Network Management Protocol (SNMP) |
|
Physical specifications |
Weight: 0.75 lb (0.34 kg) Height: 0.8 in. (2.03 cm) Width: 6.75 in. (17.15 cm) Depth: 7.28 in. (18.49 cm) |
Get more information
Do you have anyquestionabouttheSPA-1CHSTM1/OC3V2=
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SPA-1CHSTM1/OC3V2= Specification
SPA-1CHSTM1/OC3V2= Specification |
|
|
Product compatibility |
|
|
Minimum software version |
|
|
Protocols |
Serial encapsulations: *High-Level Data Link Control (HDLC) Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle): *Multilink PPP (MLPPP), RFC 1990 Networking protocols: *IPv4/IPv6 |
|
Cards, ports, and slots |
1 port |
|
Reliability and availability |
OIR Field-replaceable SFP optics modules Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols Single SPA software reset |
|
MIBs |
RFC 2558 MIB (SONET/SDH) RFC 2495 MIB (T1/E1) RFC 2496 MIB (T3/E3) |
|
Network management |
Simple Network Management Protocol (SNMP) |
|
Physical specifications |
Weight: 0.75 lb (0.34 kg) Height: 0.8 in. (2.03 cm) Width: 6.75 in. (17.15 cm) Depth: 7.28 in. (18.49 cm) |
