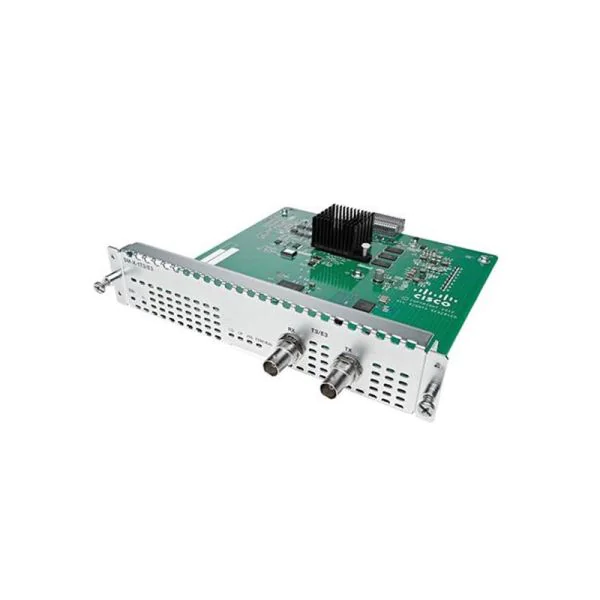

HKShanhai Group Limited’s SM-X-1T3/E3= is a reliable and efficient T3/E3 service module designed to enhance network performance and flexibility. Ideal for engineers and procurement teams, this module ensures high-speed connectivity in various demanding environments, such as data centers, enterprise networks, and more.
HKShanhai Group Limited SM-X-1T3/E3= Product Highlights
- ??Single port T3/E3
- ??High-speed connectivity
- ??Seamless integration
- ??Reliable performance
- ??Cost-effective solution
Product Features Comparison
| Feature | HKShanhai Group Limited SM-X-1T3/E3= | HKShanhai Group Limited SM-X-4T1/E1= | HKShanhai Group Limited NIM-1T3/E3 | HKShanhai Group Limited NIM-4T1/E1 | HKShanhai Group Limited VWIC3-1MFT-T1/E1 | HKShanhai Group Limited VWIC3-4MFT-T1/E1 | HKShanhai Group Limited VWIC2-1MFT-T1/E1 | HKShanhai Group Limited NIM-8A/S |
|---|---|---|---|---|---|---|---|---|
| Ports | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 8 |
| Connector Type | BNC | BNC | BNC | BNC | RJ-48 | RJ-48 | RJ-48 | RS232 |
| Speed Support | T3/E3 | T1/E1 | T3/E3 | T1/E1 | T1/E1 | T1/E1 | T1/E1 | Low-speed |
| Integrated CSU/DSU | Yes | No | Yes | No | Yes | Yes | Yes | No |
| Network Module Compatibility | ISR 4000 | ISR 4000 | ISR 4000 | ISR 4000 | ISR G2 | ISR G2 | ISR G2 | ISR 4000 |
| Supported Protocols | HDLC, PPP | HDLC, PPP | HDLC, PPP | HDLC, PPP | HDLC, PPP, FR | HDLC, PPP, FR | HDLC, PPP, FR | HDLC, PPP |
HKShanhai Group Limited SM-X-1T3/E3= Product Application Scenarios
- ??Enterprise WAN connections
- ??Data center integrations
- ??High-speed branch connectivity
Optional Add-ons
| Model | Description |
|---|---|
| CAB-E3-RF | RF Coaxial Cable for E3 |
| CAB-DS3-RF | RF Coaxial Cable for T3 |
| E3-FEEDBACK | Feedback Suppressor Module |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited SM-X-1T3/E3=. Access the detailed SM-X-1T3/E3= datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited SM-X-1T3/E3= Specification
SM-X-1T3/E3= Specifications |
|
| Product Type | Service Module |
| Port | 1 x T3/E3 |
| Data Rate | 44.736 Mbps (T3), 34.368 Mbps (E3) |
| Network Protocols | SONET/SDH, PPP, HDLC |
| Interface | BNC Coaxial Connectors |
| Form Factor | Plug-in module |
| Compatible Platforms | HKShanhai Group Limited 4000 Series Integrated Services Routers |
| Redundancy | Supports Multi-Link PPP (MLPPP) |
| Mounting | Internal |
| Temperature Range | Operating: 32 to 104°F (0 to 40°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Power Consumption | 5.5W maximum |
| Humidity Range | 10 to 85% non-condensing |
| LED Indicators | Link, Activity |
| EMC Certifications | GR-1089, EN55022, EN55024 |
| Safety Certifications | UL 60950, CSA 22.2 No. 60950 |
| Dimensions | 5.3 x 1.1 x 7.1 inches (L x W x H) |
| Mean Time Between Failure (MTBF) | 250,000 hours |
| Warranty | Limited Lifetime Warranty |
