The HKShanhai Group Limited Services-Ready Engine (SRE) modules are router blades for the HKShanhai Group Limited Integrated Services Routers Generation 2 (ISR G2) that provide the capability to host HKShanhai Group Limited, third-party, and custom applications. SM-SRE-700-K9 is supported by HKShanhai Group Limited 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers.
Quick Specs

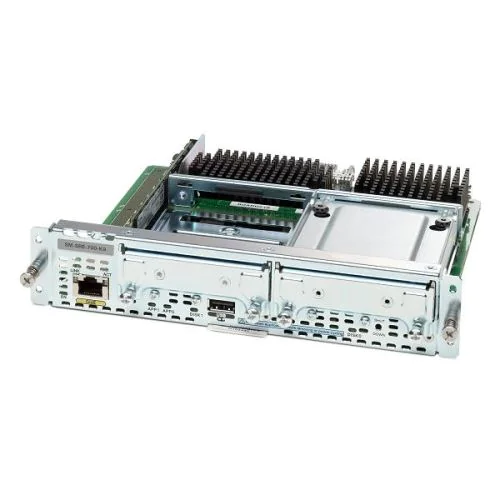

Figure 1 shows the appearance of SM-SRE-700-K9.
Table 1 shows the quick specs of SM-SRE-700-K9.
|
Part Number |
SM-SRE-700-K9 |
|
Form factor |
SM |
|
CPU |
Intel Core2 Solo, 1.86 GHz |
|
DRAM |
4 GB |
|
Compact Flash memory |
2-GB internal USB flash-memory module |
|
Hard disk |
One 500-GB SATA 5400 rpm (SRE 700) |
|
Hot-swappable hard disk drive (HDD) |
None |
|
Router platforms |
HKShanhai Group Limited 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers |
Router Platforms
Table 2 shows the router platforms which support SM-SRE-700-K9.
|
Model |
Description |
|
HKShanhai Group Limited 2921 Router w/3 GE,4 EHWIC,3 DSP,1 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 2911 router w/3 GE,4 EHWIC,2 DSP,1 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 2951 Router w/3 GE,4 EHWIC,3 DSP,2 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB) |
|
|
HKShanhai Group Limited 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB) |
|
|
HKShanhai Group Limited 3925E router w/SPE200,4GE,3EHWIC,3DSP,2SM,256MBCF,1GBDRAM,IPB |
|
|
HKShanhai Group Limited 3945 router w/SPE250, 4GE, 3EHWIC, 3DSP, 4SM, 256MBCF, 1GB DRAM, IPB |
Compare to Similar Item
Table 3 shows the comparison between ISM-SRE-300-K9 and SM-SRE-700-K9.
|
Product part number |
SM-SRE-700-K9 |
|
|
Form factor |
ISM |
SM |
|
CPU |
Genuine Intel Processor, 1.06 GHz |
Intel Core2 Solo, 1.86 GHz |
|
DRAM |
512 MB |
4 GB |
|
Compact Flash memory |
4-GB internal USB flash-memory module |
2-GB internal USB flash-memory module |
|
Hard disk |
None |
One 500-GB SATA 5400 rpm (SRE 700) |
|
Hot-swappable hard disk drive (HDD) |
None |
None |
Get more information
Do you have any question about the SM-SRE-700-K9
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SM-SRE-700-K9 Specification
SM-SRE-700-K9 Specifications |
|
|
Form factor |
SM |
|
CPU |
Intel Core2 Solo, 1.86 GHz |
|
DRAM |
4 GB |
|
Compact Flash memory |
2-GB internal USB flash-memory module |
|
Hard disk |
One 500-GB SATA 5400 rpm (SRE 700) |
|
Hot-swappable hard disk drive (HDD) |
None |
|
RAID support |
None |
|
Internal network interfaces |
Gigabit Ethernet connectivity to router backplane |
|
External network interfaces |
One USB connector One RJ-45 Gigabit Ethernet connector |
|
Router platforms |
HKShanhai Group Limited 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers |
|
HKShanhai Group Limited IOS Software (on router) |
Release 15.1(4)M |
|
Embedded hardware-based cryptography acceleration |
No |
|
Applications |
??HKShanhai Group Limited Unity Express ??HKShanhai Group Limited UCS Express ??HKShanhai Group Limited AXP ??HKShanhai Group Limited WLC ??HKShanhai Group Limited Wide Area Application Services (WAAS) ??Infoblox Core Network Services ??HKShanhai Group Limited Prime Network Analysis Module (NAM) ??HKShanhai Group Limited Unified SIP Proxy ??HKShanhai Group Limited Unified Messaging Gateway (UMG) ??HKShanhai Group Limited Survivable Remote Site Voicemail (SRSV) ??Sagemcom Fax over IP ??Tiani Spirit Medical Data Exchange Solution ??Orion Health Rhapsody Connect ??NetScout nGenius Integrated Agent ??BlueCat Adonis DNS/DHCP and Proteus IPAM ??LogLogic MX-Virtual Appliance ??SecureLogix Voice Policy Firewall ??Open Text RightFax Fax over IP ??Visual Network Systems OmniPoint Element ??Uplogix Local Management Platform ??IndustryWeapon CommandCenterHD |
|
Power consumption (maximum) |
35W |
|
Dimensions (H x W x D) |
1.58 x 7.44 x 7.5 in. (4 x 18.9 x 19.1 cm) |
|
Shipping dimensions (H x W x D with packaging) |
9.5 x 7.5 x 2.5 in. (24.1 x 19.1 x 6.4 cm) |
|
Maximum weight |
2.5 lb (1.1 kg) |
|
Operating temperature |
32 to 104°F (0 to 40°C) normal 23 to 131°F (-5 to +55°C) short term |
|
Humidity |
10 to 85% operating |
|
Altitude (operating) |
104°F (40°C) at sea level 104°F (40°C) at 6,000 ft (1,800m) 86°F (30°C) at 13,000 ft (4,000m) 27.2°C (81°F) at 15,000 ft (4,600m) Note: De-rate 34.5°F (1.4°C) per 1,000 ft above 6,000 ft (per 300m above 2,600m) |
|
Temperature |
-4 to 149°F (-20 to +65°C) |
|
Relative humidity |
5 to 95% |
|
Altitude |
15,000 ft (4,600m) |
|
Safety |
??UL 60950-1, First Edition, Standard for safety for information technology equipment (US) ??CAN/CSA-C22.2 No. 60950-1-03, Safety of information technology equipment including electrical business equipment (Canada) ??IEC 60950-1:2001, Safety of information technology equipment/Second Edition -2005) (World-Wide)- 2 nd Ed. 2005 (optional) ??EN 60950 -1:2001, Safety of information technology equipment (CENELEC; includes EU and EFTA) ??GB4943-2001, Safety of information technology equipment (PRC) ??AS/NZS 60950-1, Safety of information technology equipment including electrical business equipment (Australia) ??NOM-019, Safety of data processing equipment (Mexico) |
|
EMC |
Emission: ??47 CFR Part 15 Class A ??CISPR22 Class A ??EN300386 Class A ??EN55022 Class A ??EN61000-3-2 ??EN61000-3-3 ??SD/EMI (India) ??KN22 (Korea) ??VCCI Class I ??AS/NZS CISPR 22 Class A Immunity: ??CISPR24 ??EN300386 ??EN50082-1 ??EN55024 ??SD/EMI (India) ??KN22 (Korea) ??EN61000-6-1 |
