SM-ES3G-16-P is 16 Gigabit Ethernet ports EtherSwitch Service Module for 2900-series, 3900-series router which has identical capacity to Catalyst 3560 series switch. SM-ES3G-16-P offers POE capacity that powers 20W per port; you can connect IP phones, wireless access points and IP-based video cameras from a single platform. The HKShanhai Group Limited Enhanced EtherSwitch Service Modules offers cost-efficiency solution to meet branch office or small to midsize business offices needs with no requiring physical room.
Quick Specs

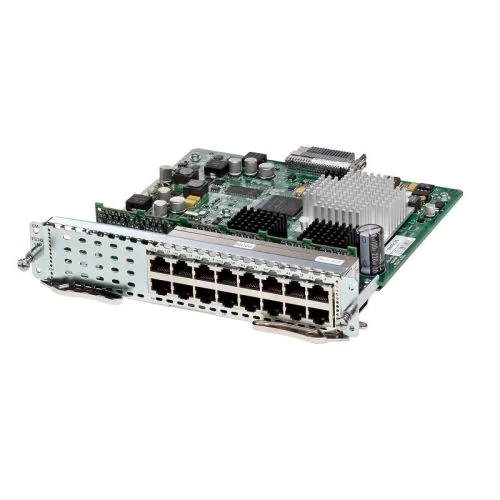

Figure 1 shows the appearance of SM-ES3G-16-P.
Â
Table 1 shows the Quick Specs.
|
Model |
SM-ES3G-16-P |
|
Gigabit Ethernet Ports |
16 |
|
Layer 2/3 Switching |
X |
|
PoE |
X |
|
Service Module Width |
Single |
|
Default Software |
Universal Image: IP Base |
|
Minimum HKShanhai Group Limited EtherSwitch and HKShanhai Group Limited IOS Software Release |
12.2(52)EX |
|
Minimum Router HKShanhai Group Limited IOS Software Release |
15(0).1M |
|
Dimensions: Wide x Deep x High (cm.) |
20.6 x 20.7 x 4.0 |
|
Weight (kg.) |
2.2 |
|
Operational Temperature |
0 to 40 °C |
|
Nonoperational Temperature |
-40 to 70 °C |
|
Operational Humidity |
5 to 90% |
|
Nonoperational Humidity |
5 to 95% |
Get More Information
Do you have any question about the SM-ES3G-16-P
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SM-ES3G-16-P Specification
|
Model info |
SM-ES3G-16-P |
|
Product Type |
HKShanhai Group Limited Enhanced EtherSwitch Service Module |
|
Port Density |
16 * 10/100/1000 GE ports |
|
Power over Ethernet (PoE) |
up to 20W per port |
|
Routing Protocol |
RIP-1, RIP-2, HSRP, static IP routing, RIPng |
|
Remote Management Protocol |
SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
|
Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|
Supported router |
2911 / 2921 / 2951 / 3925 / 3945 |
|
Service Module Width |
single slot |
|
Power Redundancy |
RPS 2300 |
|
IP base feature |
??QoS |
|
IP service feature |
??IP unicast and IP Multicast routing ??OSPFv3 |
|
Security Features |
??Dynamic ARP Inspection (DAI) ??Centralized Authentication |
|
Software license |
??L-ES3G-16-IPS: IP Services License Upgrade 16 Port GE ES3 Enhanced EtherSwitch eDelivery ??L-ES3: Upgrade Quantity license |
