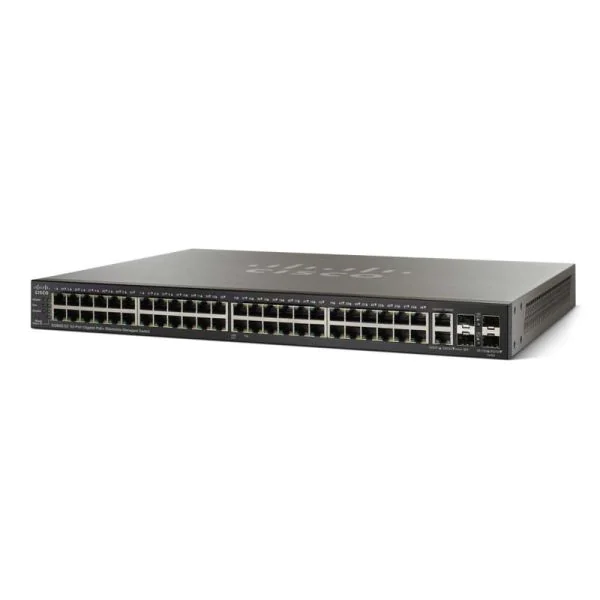

The HKShanhai Group Limited SG500-52 is a robust 52-port Gigabit Stackable Managed Switch designed for enterprise networks. This versatile switch delivers top-notch performance, security, and reliability required for modern business operations. With extensive management capabilities, it ensures seamless network operation and scalability. The SG500-52 is a perfect choice for growing organizations needing high-bandwidth capabilities and advanced features.
Quick Spec
| Ports | 52 Gigabit Ethernet |
| Performance | 104 Gbps Switching Capacity |
| Stacking Capability | Up to 4 switches |
| Management | Fully Managed Switch |
| Dimensions | 17.3 x 14.5 x 1.7 inches |
Product Features
- 28 Gigabit Ethernet ports with POE support
- Advanced layer 3 traffic management
- Energy-efficient design with low power consumption
- Stackable up to 8 units for simplified management
- Comprehensive security with ACLs and 802.1x authentication
Product Applications
- Ideal for growing small to medium-sized businesses needing scalable network infrastructure
- Suitable for deploying network services in high-density offices or open spaces
- Perfect for supporting VoIP, video surveillance, and data centers with POE requirements
Supported Options
| SFP Modules | GLC-LH-SMD |
| Rack Mount Kit | RCKMNT-19-CMPCT |
| Cabling | CAB-STK-E-0.5M |
Compare to Similar Items
| Model | HKShanhai Group Limited SG500-24 |
| Ports | 24 Gigabit Ethernet |
| Stacking Capability | Up to 4 switches |
| Switching Capacity | 48 Gbps |
| Model | HKShanhai Group Limited SG200-50 |
| Ports | 50 Gigabit Ethernet |
| Stacking Capability | No stacking support |
| Switching Capacity | Non-blocking architecture |
| Model | HKShanhai Group Limited SG300-52 |
| Ports | 52 Gigabit Ethernet |
| Stacking Capability | Up to 4 switches |
| Switching Capacity | 104 Gbps |
Get more information
Check HKShanhai Group Limited SG500-52 price and SG500-52 datasheet, buy HKShanhai Group Limited SG500-52 Switch with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact through Live Chat or sales@router-switch.com.
HKShanhai Group Limited SG500-52 Specification
SG500-52 Specifications |
|||||
|
Feature |
Description |
||||
|
Performance |
|||||
|
Switching capacity and forwarding rate All switches are wire-speed and non-blocking. |
Product Name |
Capacity in mpps (64-byte packets) |
Switching Capacity (Gbps) |
||
|
SF500-52 |
77.38 |
120 |
|||
|
General |
|||||
|
Jumbo frames |
Frame sizes up to 9K (9216) bytes. Supported on 10/100 and Gigabit Ethernet interfaces. The default MTU is 2K. |
||||
|
MAC table |
16K (16384) MAC addresses. |
||||
|
Product Specifications |
|||||
|
Power over Ethernet (PoE) |
|||||
|
IEEE 802.3af and 802.3at PoE delivered over any of the RJ-45 ports within the listed power budgets |
Switches support 802.2af, 802.3at, and HKShanhai Group Limited pre-standard (legacy) PoE. Maximum power of 30W to any 10/100 or Gigabit base port until the PoE budget for the switch is reached. The total power available for PoE per switch is: |
||||
|
Model Name |
Power Dedicated to PoE |
Number of Ports That Support PoE |
|||
|
SF500-52 |
N/A |
0 |
|||
|
Power consumption |
Model Name |
Green Power (mode) |
System Power Consumption |
Power Consumption (with PoE) |
Heat Dissipation (BTU/hr) |
|
SF500-52 |
EEE + Short Reach + Energy Detect |
110V=47W 220V=47W |
N/A |
147.7 |
|
|
Ports |
Model Name |
Total System Ports |
RJ-45 Ports |
Combo Ports (RJ-45 + SFP) |
|
|
SF500-52 |
48GE + 4 GE (5G Stacking) |
48 GE |
2 combo GE + 2 1G/5G SFP |
||
|
Buttons |
Reset button |
||||
|
Cabling type |
Unshielded twisted pair (UTP) Category 5 or better; Fiber options (SMF and MMF); Coaxial SFP+ for stacking purposes |
||||
|
LEDs |
LED power savings, System, Link/Act, PoE, Speed |
||||
|
Flash |
32 MB |
||||
|
800 MHz ARM CPU memory |
256 MB |
||||
|
Packet buffer |
All numbers are aggregate across all ports, as the buffers are dynamically shared: |
||||
|
Model Name |
Packet Buffer |
||||
|
SF500-52 |
2*8Mb |
||||
|
Environmental |
|||||
|
Unit Dimensions |
Model Name |
Unit Dimensions |
|||
|
SF500-52 |
440 x 44 x 257 mm |
||||
|
Unit weight |
Model Name |
Unit Weight |
|||
|
SF500-52 |
3.95 kg |
||||
|
Power |
100-240V 47-63 Hz, internal, universal |
||||
|
Certification |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
||||
|
Operating temperature |
SF500-24, SF500-24P, SF500-48, SF500-48P, SG500-28, SG500-28P, SG500-52, SG500-52P, SG500X-24, SG500X-24P, SG500X-48, SG500X-48P 32°to 104°F (0°to 40°C) SG500-28MPP, SG500-52MP, SG500XG-8F8T, SF500-24MP, SF500-48MP, SG500X-24MPP, SG500X-48MP 32°to 122°F (0°to 50°C) |
||||
|
Storage temperature |
-4°to 158°F (-20°to 70°C) |
||||
|
Operating humidity |
10% to 90%, relative, noncondensing |
||||
|
Storage humidity |
10% to 90%, relative, noncondensing |
||||
|
Acoustic noise and mean time between failures (MTBF) |
Model Name |
Fan (Number) |
Acoustic Noise |
MTBF @ 40°C (Hours) |
|
|
SF500-52 |
2 pcs/6300rpm |
41.3 dB |
154,250.1 |
||
|
Warranty |
Limited lifetime with next-business-day advance replacement (where available, otherwise same day ship) |
