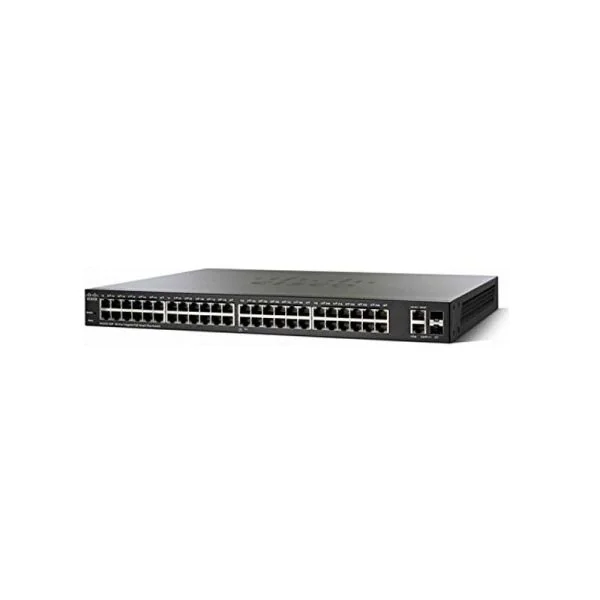

The HKShanhai Group Limited SG220-50P 50-Port Gigabit PoE Smart Switch is a high-performance managed switch designed to deliver reliable connectivity solutions for growing businesses. With advanced features, intuitive configuration, and PoE capabilities, this switch ensures seamless network operations and supports the expanding needs of your enterprise network infrastructure.
Quick Spec
| Total Ports | 50 |
| Port Type | Gigabit Ethernet |
| PoE Ports | 48 |
| Switching Capacity | 100 Gbps |
| Mounting | Rack Mountable |
Product Features
- Smart Network Management – Advanced security, quality of service (QoS), and energy efficiency.
- Gigabit Speeds – 26 Gigabit Ethernet ports enhance network performance.
- Improved Scalability – Supports advanced networking needs of growing businesses.
- Energy Efficient – Complies with Energy Efficient Ethernet (IEEE 802.3az) standard.
- Simple Integration – Easy to install and configure with an intuitive web-based interface.
Product Applications
- Small and Medium-sized Business Networks – Reliable and seamless communication and data transfer.
- Remote Office Connectivity – Ensures secure and robust connections for remote working environments.
- Network Expansion – Scales efficiently with expanding business requirements.
Supported Options
| Rack Mount Kit | RM-SG220-50P |
| Console Cable | CC-SG220-50P |
| Power Adapter | PA-SG220-50P |
Compare to Similar Items
| HKShanhai Group Limited SG350-52P | 52 ports, Enhanced security, Advanced CLI |
| HKShanhai Group Limited SG250-50P | 50 ports, Basic Layer-3, Limited QoS |
| HKShanhai Group Limited SF220-48P | 48 ports, Fast Ethernet, Lower switching capacity |
Get more information
Check HKShanhai Group Limited SG220-50P price and SG220-50P datasheet, buy HKShanhai Group Limited SG220-50P Switch with the best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, please contact us through Live Chat or email at sales@router-switch.com.
HKShanhai Group Limited SG220-50P Specification
SG220-26P Specifications |
|||||
|
Feature |
Description |
||||
|
Hardware |
|||||
|
Buttons |
Reset button |
||||
|
Cabling type |
Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T |
||||
|
LEDs |
System, Link/Act, Speed |
||||
|
Flash |
32 MB |
||||
|
CPU memory |
128 MB |
||||
|
Ports |
Model name |
Total system ports |
RJ-45 ports |
Uplink ports |
|
|
SF220-50P |
50 Gigabit Ethernet |
48 Fast Ethernet |
2 Gigabit Ethernet combo |
||
|
Packet Buffer |
All numbers are aggregate across all ports as the buffers are dynamically shared |
||||
|
Model name |
Packet buffer |
||||
|
SF220-50P |
12 Mb |
||||
|
Environmental |
|||||
|
Dimensions (W x H x D) |
440 x 44 x 350 mm |
||||
|
Unit weight |
5.28 kg |
||||
|
Power |
100-240 V, 50-60 Hz, Internal |
||||
|
Certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
||||
|
Operating temperature |
0-50° C |
||||
|
Storage temperature |
-20° C to +70° C |
||||
|
Operating humidity |
10% to 90%, relative, noncondensing |
||||
|
Storage humidity |
10% to 90%, relative, noncondensing |
||||
|
Power Consumption |
Model name |
Green power (mode) |
System power consumption |
Power consumption (with PoE) |
Heat dissipation (BTU/hr) |
|
SF220-50P |
EEE + Energy Detect |
110V=59.4W 220V=63.2W |
110V=426W 220V=427W |
1453.6 |
|
|
Acoustic Noise and Mean Time Between Failure (MTBF) |
Model name |
Fan (number) |
Acoustic noise |
MTBF @ 50°C (hours) |
|
|
SF220-50P |
4 pcs/9500 rpm and fan speed control |
<32°C=39.1dB 32°C-40°C=50.5dB >40°C=52dB |
194,036 |
||
|
Warranty |
|||||
|
Warranty term |
Limited lifetime hardware warranty |
||||
|
Package contents |
|||||
|
Package contents |
  HKShanhai Group Limited 220 Series Ethernet switch
  Power cord
  Mounting kit included in all SKUs
  Console cable
  Quick start guide
|
