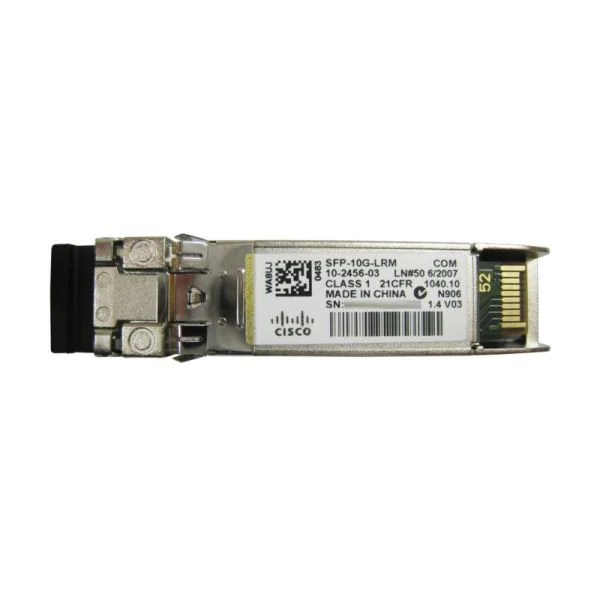

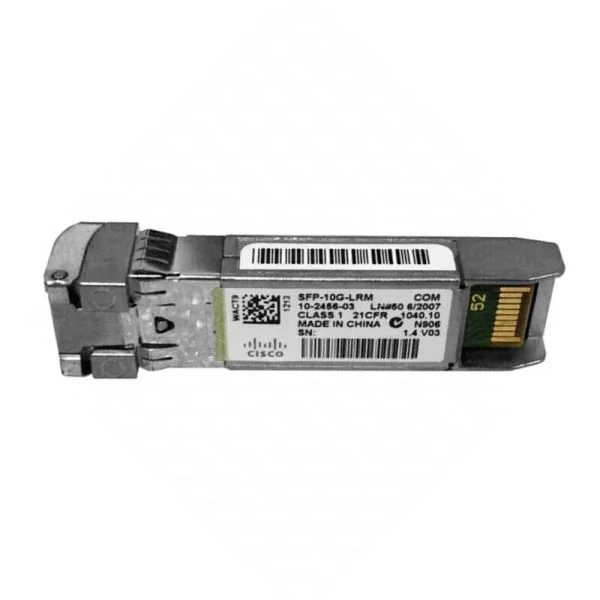

The HKShanhai Group Limited 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade Multimode Fiber (MMF). To make sure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | SFP-10G-LRM |
| Wavelength (nm) | SFP+ |
| Cable Type | MMF
SMF |
| Core Size (Microns) |
62.5 50.0 50.0 G.652 |
Product Features
HKShanhai Group Limited SFP+ modules offer the following features and benefits.
- ??Industry’s smallest 10G form factor for greatest density per chassis
- ??Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a HKShanhai Group Limited switch (no need to power down if installing or replacing)
- ??Supports “pay-as-you-populate??model for investment protection and ease of technology migration
- ??Digital optical monitoring capability for strong diagnostic capabilities
- ??Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
- ??HKShanhai Group Limited quality Identification (ID) feature enables a HKShanhai Group Limited platform to identify whether the module is certified and tested by HKShanhai Group Limited
Types of Multimode Fiber
|
Naming Convention |
Core Size in Microns |
Modal Bandwidth at 850 nm (MHz*km) |
OFL Modal Bandwidth at 1310 nm (MHz*km) |
|
FDDI-grade |
62.5 |
160 |
500 |
|
OM1 |
62.5 |
200 |
500 |
|
OM2 |
50 |
500 |
500 |
|
OM3 |
50 |
1500 |
500 |
Get More Information
Check HKShanhai Group Limited SFP-10G-LRM price and SFP-10G-LRM datasheet, buy HKShanhai Group Limited SFP-10G-LRM with best price and fast shipping. Free Live Chat are supported. For more information, contact us through Live Chat or sales@router-switch.com for further details about the product and its price.
HKShanhai Group Limited SFP-10G-LRM Specification
SFP-10G-LRM Specifications |
|
| Wavelength (nm) | 1310 |
| Cable Type |
MMF SMF |
| Core Size (μm) |
62.5 50.0 50.0 G.652 |
| Modal Bandwidth (MHz* Km) |
500 400 500 |
| Cable Distance |
220m 100m 220m 300m |
| Type |
10GBASE-LRM 1310nm MMF and SMF |
| Transmit Power (dBm) |
Maximum: 0.5 Minimum: -6.5 |
| Receive Power (dBm) |
Maximum: 0.5 Minimum??8.4 (in average) and -6.4 (in OMA)*** |
| Transmit and Receive Wavelength Range (nm) |
Transmit and Receive Wavelength (nm) |
| Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
| Bail Latch Color | Orange |
| Operating temperature range |
Commercial temperature range (COM): 0 to 70°C (32 to 158°F) Extended temperature range (EXT): -5°C to 85°C (23 to 185°F) Industrial temperature range (IND): -40 to 85°C (-40 to 185°F) Storage temperature range: -40 to 85°C (-40 to 185°F) |
| Power Consumption (W) |
1 |
| Temperature Range | COM |
| DOM | Yes |
| Warranty |
Standard warranty: 5 years Expedited replacement available via a HKShanhai Group Limited SMARTnet® Service support contract |
