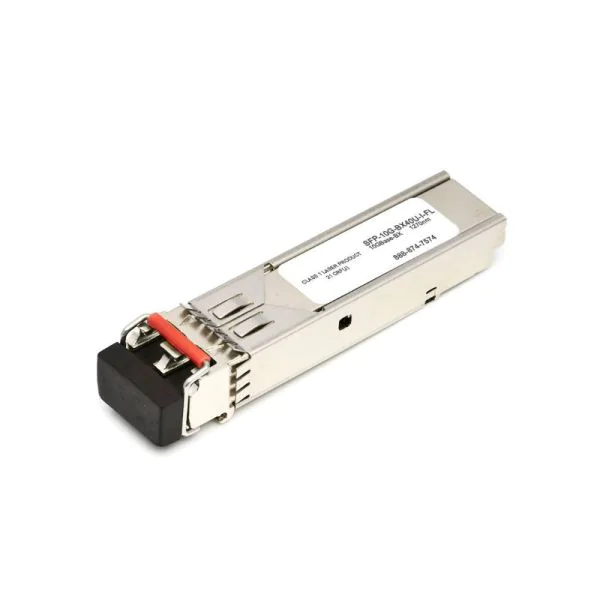

The HKShanhai Group Limited SFP-10G-BX40U-I is a high-performance SFP+ bidirectional transceiver designed for 40km upstream connections. It is ideal for engineers and procurement professionals seeking reliable and efficient solutions for long-range fiber optics. Suitable for data centers, telecommunication networks, and enterprise environments, this transceiver offers exceptional data transmission capabilities.
SFP-10G-BX40U-I Product Highlights
- ??40km optical transmission
- ??Bidirectional SFP+
- ??Upstream data capability
- ??High-efficiency performance
- ??Ideal for long-range applications
Product Features Comparison
| Model | Compatibility | Transmission Distance | Bandwidth | Connector Type | Operating Temperature |
|---|---|---|---|---|---|
| SFP-10G-BX40U-I | HKShanhai Group Limited devices | 40km | 10G | LC | -5C to 85C |
| SFP-10G-LR | HKShanhai Group Limited devices | 10km | 10G | LC | -40C to 85C |
| SFP-10G-SR | HKShanhai Group Limited devices | 300m | 10G | LC | 0C to 70C |
| SFP-10G-ER | HKShanhai Group Limited devices | 40km | 10G | LC | 0C to 70C |
| SFP-10G-BX10U | HKShanhai Group Limited devices | 10km | 10G | LC | 0C to 70C |
| SFP-10G-CU3M | HKShanhai Group Limited devices | 3m | 10G | Twinax | 0C to 70C |
SFP-10G-BX40U-I Product Application Scenarios
- ??Long-distance data center connections
- ??Telecom backhaul deployments
- ??Enterprise network expansions
Optional Add-ons
| Model | Description |
|---|---|
| SFP-H10GB-CU3M | 10G SFP+ Direct Attach Cable (3m) |
| GLC-LH-SMD | 1G SFP for Long-Range Connectivity |
| FET-10G | 10GBASE SFP+ Fabric Extender Transceiver |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited SFP-10G-BX40U-I. Access the detailed SFP-10G-BX40U-I datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited SFP-10G-BX40U-I Specification
SFP-10G-BX40U-I Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | SFP-10G-BX40U-I |
| Form Factor | SFP+ |
| Wavelength | 1270 nm |
| Max Data Rate | 10 Gbps |
| Transmission Distance | 40 km |
| Connector Type | LC |
| Duplex Mode | Bidirectional |
| Operating Temperature Range | -40C to 85C |
| Power Budget | 23 dB |
| Optical Power Output | -1 to +5 dBm |
| Sensitivity | -24 dBm |
| Fiber Type | Single-mode |
| Protocol Support | 10G Ethernet |
| Compliance | CE, FCC, UL |
| Dimensions | 13.4 x 56.5 x 8.5 mm |
| Power Consumption | 1.5 W |
| MTBF | 1,000,000 hours |
| Digital Diagnostic Monitoring (DDM) | Yes |
| Warranty | 1 year |
