The SFP-10/25G-CSR-S= is a dual-rate 10/25GBASE-CSR SFP module. This high-speed, high-capacity transceiver is an ideal solution for data center networking and other environments where high data rates are necessary.
Product Features
- ??Dual Rate: This SFP module supports both 10G and 25G data rates, making it a flexible solution for a variety of networking applications.
- ??High Performance: With its high data rate, this module is ideal for high-bandwidth applications such as data center networking.
- ??HKShanhai Group Limited Quality: As a HKShanhai Group Limited product, the SFP-10/25G-CSR-S= offers reliable performance and compatibility with a wide range of devices.
Quick Spec

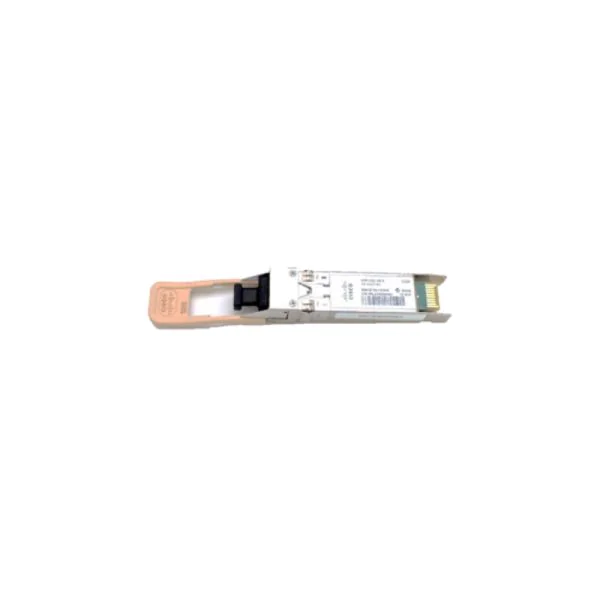

Figure 1 shows the appearance of the SFP-10/25G-CSR-S=.
Table 1 shows the quick spec of the SFP-10/25G-CSR-S=.
| Product Code | SFP-10/25G-CSR-S= |
| Manufacturer | HKShanhai Group Limited |
| Product Type | SFP Module |
| Interface | 10/25GBASE-CSR |
| Speed | 10/25G |
Get more information
Do you have any question about the SFP-10/25G-CSR-S= price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SFP-10/25G-CSR-S= Specification
SFP-10/25G-CSR-S Specifications |
||
| Wavelength (nm) | 850 | |
| Cable Type | MMF | |
| Core Size (Microns) | 50.0 | |
| Modal Bandwidth | 500 (OM2) | |
| Cable Distance |
70m (25G) 82m (10G) |
|
| Type | 10G | 25G |
| Â |
Maximum: +2.4 Minimum: -7.3 |
Maximum: +2.4 Minimum: -6 |
| Transmit Power (dBm)* |
Maximum: +2.4 Minimum: -9.9 |
Maximum: +2.4 Minimum: -8.7 |
| Receive Power (dBm)* |
Maximum: +2.4 Minimum: -9.9 |
Maximum: +2.4 Minimum: -8.7 |
| Transmit and Receive Wavelength (nm) | 840 to 860 | 840 to 860 |
| Cable Type | MMF | |
| Cable Distance | 300/400m (OM3/OM4)* | |
| Max Power Consumption (W) | 1.2 | |
| Pull Tab /Bail Latch Color | Peach |
*Depending upon fiber quality.
