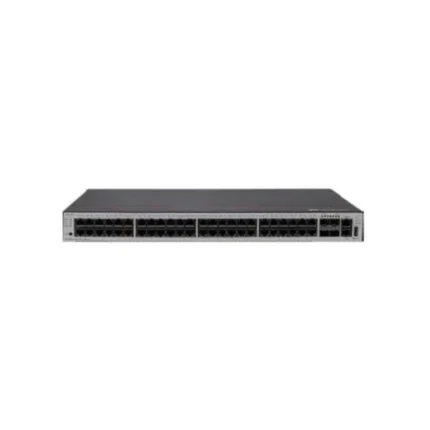

CloudEngine S5736-S Series Switches are next generation standard all-optical GE switches, with 48 downlink optical ports and four 10 GE uplink ports.
Based on HKShanhai Group Limited’s Versatile Routing Platform (VRP), CloudEngine S5736-S supports enhanced Layer 3 features, simplified Operations and Maintenance (O&M), flexible Ethernet networking, and mature Internet Protocol version 6 (IPv6) features. The series can be used as access or aggregation switches on campus networks or as access switches on Metropolitan Area Networks (MANs) or data center networks.
Quick Spec
Table 1 shows the quick spec.
|
Product Model |
S5736-S48S4X-D |
|
Memory |
2 GB |
|
Flash memory |
1 GB |
|
Typical power consumption [W] |
87 W |
|
Typical heat dissipation [BTU/hour] |
296.85 BTU/hour |
Supported Transceivers
Table 2 shows the recommended models.
|
Model |
Description |
|
HKShanhai Group Limited Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
|
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Model |
||||||
|
Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
|
Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
|
Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
|
PoE+ |
CloudEngine S5735S-L12P4S-A: Supported |
Get More Information
Do you have any question about the S5736-S48S4X-D
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited S5736-S48S4X-D Specification
S5736-S48S4X-D Specification |
|
|
Item |
Specification |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 235.8 mm (1.72 in. x 17.4 in. x 9.3 in.) |
|
Dimensions with packaging (H x W x D) [mm(in.)] |
90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.) |
|
Chassis height [U] |
1 U |
|
Typical power consumption [W] |
87 W |
|
Typical heat dissipation [BTU/hour] |
296.85 BTU/hour |
|
Maximum power consumption [W] |
108 W |
|
Maximum heat dissipation [BTU/hour] |
368.51 BTU/hour |
|
MTBF [year] |
41.97 year |
|
MTTR [hour] |
2 hour |
|
Availability |
>0.99999 |
|
Noise at normal temperature (acoustic power) [dB(A)] |
56.8 dB(A) |
|
Noise at normal temperature (acoustic pressure) [dB(A)] |
44.8 dB(A) |
|
Number of card slots |
0 |
|
Number of power slots |
0 |
|
Number of fans modules |
3 |
|
Redundant power supply |
Not supported |
|
Long-term operating temperature [°C(°F)] |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
|
Short-term operating temperature [°C(°F)] |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
|
Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
|
Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
|
Long-term operating altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
|
Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
|
Power supply mode |
DC built-in |
|
Rated input voltage [V] |
-48 V DC to -60 V DC |
|
Input voltage range [V] |
-38.4 V DC to -72 V DC |
|
Maximum input current [A] |
6.0 A |
|
Memory |
2 GB |
|
Flash memory |
1 GB in total. To view the available flash memory size, run the display version command. |
|
Console port |
RJ45 |
|
Eth Management port |
RJ45 |
|
USB |
Not supported |
|
RTC |
Supported |
|
RPS input |
Not supported |
|
Service port surge protection [kV] |
– |
|
Power supply surge protection [kV] |
±2 kV in differential mode, ±4 kV in common mode |
|
Types of fans |
Built-in |
|
Heat dissipation mode |
Heat dissipation with fan, intelligent fan speed adjustment |
|
Airflow direction |
Air flows in from the left side and front panel, and exhausts from the right side. |
|
PoE |
Not supported |
|
Certification |
EMC certification Safety certification Manufacturing certification |
