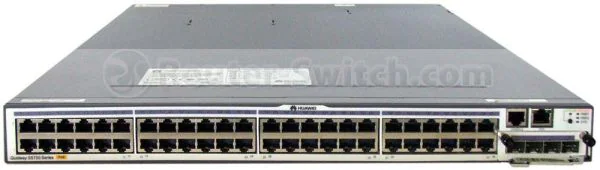

The HKShanhai Group Limited S5700-52C-PWR-EI-AC is a versatile and high-performing switch designed to meet the needs of modern enterprise networks. This model provides 48 Ethernet 10/100/1000 PoE+ ports and is equipped with 1 interface slot and a substantial 500W AC power supply. It’s an excellent choice for businesses requiring robust network solutions with enhanced power capabilities.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | S5700-52C-PWR-EI-AC |
| Ethernet Ports | 48 Ethernet 10/100/1000 PoE+ |
| Interface Slot | 1 |
| Power Supply | 500W AC |
Product Features
- High-density 48 Ethernet 10/100/1000 PoE+ ports
- Supports PoE+ with a maximum power supply of 500W
- Flexible interface slot for future expansion
- Advanced Quality of Service (QoS) features for optimal traffic management
- Energy-saving design with intelligent power management
Product Applications
- Enterprise networks requiring high port density and PoE+ support for IP phones and wireless access points
- Campus networks demanding robust and scalable network infrastructure
- Data centers seeking efficient and powerful switching solutions
Supported Options
| Accessory | Model |
| Power Supply | 500W AC Power Supply |
| Expansion Module | 1 Interface Slot Expansion Module |
| SPF Transceivers | Various specific HKShanhai Group Limited transceivers |
Compare to Similar Items
| Model | Differences |
| S5700-28P-LI-AC | Lower port count (28), less power supply |
| S5700-52X-LI-AC | No PoE+ support, X series features |
| S5700-52C-EI-DC | Uses DC power supply, no PoE+ support |
Get more information
For further information about the HKShanhai Group Limited S5700-52C-PWR-EI-AC, its price, and to check the datasheet, please contact us via Live Chat or email at sales@router-switch.com. Check HKShanhai Group Limited S5700-52C-PWR-EI-AC price and S5700-52C-PWR-EI-AC datasheet, buy HKShanhai Group Limited S5700 series with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited S5700-52C-PWR-EI-AC Specification
| Item | S5700(S)-LI/S5710-LI* | S5700-SI* | S5700-EI/S5710-EI/S5720-EI* | S5700-HI/S5710-HI/S5720-HI* |
|---|---|---|---|---|
| Fixed port | LI | S5700-10P-LI-AC/S5700-10P-PWR-LI-AC: 8 × 10/100/1000Base-T,2 × 1000Base-X SFP | ||
| S5700(S)-28P-LI/S5700-28P-PWR-LI/ S5700-28P-LI-BAT/S5700-28P-LI-4AH: 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP | ||||
| S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH: 28 × 1000Base-X,4 of which are dual-purpose 10/100/1000 or SFP, 4 × 1000Base-X | ||||
| S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: 24× 10/100/1000Base-T, 2×1000Base-X SFP and 2 dual-purpose 10/100/1000 or SFP | ||||
| S5700-28X-LI/S5700-28X-PWR-LI-AC/ S5701-28X-LI-AC: 24 × 10/100/1000Base-T, 4 × 10GE SFP+ | ||||
| S5700-28X-LI-24S-AC/S5700-28X-LI-24S-DC/ S5701-28X-LI-24S-AC: 28x1000Base-X,4 of which are dual-purpose 10/100/1000 or SFP,4 × 10GE SFP+ | ||||
| S5700(S)-52P-LI/S5700-52P-PWR-LI: 48 × 10/100/1000Base-T, 4 × 1000Base-X SFP | ||||
| S5700-52X-LI/S5700-52X-PWR-LI-AC: 48 × 10/100/1000Base-T, 4 × 10GE SFP+ | ||||
| S5700-52X-LI-48CS-AC:48x1000Base-X(CSFP) or 24 × 1000Base-X, 4 of which are dual-purpose 10/100/1000 or Base-X(CSFP), 4 × 10GE SFP+ | ||||
| SI | S5700-24TP-SI/S5700-24TP-PWR-SI/S5700-28C-SI/S5700-28C-PWR-SI:24 × 10/100/1000Base-T, 4 of which are dual-purpose 10/100/1000 or SFP | |||
| S5700-26X-SI-12S-AC: 12 × 10/100/1000BASE-T,12×100/1000Base-X,2 × 10GE SFP+ | ||||
| S5700-48TP-SI/S5700-48TP-PWR-SI: 48 × 10/100/1000Base-T, 4 of which are dual-purpose 10/100/1000 or SFP | ||||
| S5700-52C-SI/S5700-52C-PWR-SI: 48 × 10/100/1000Base-T | ||||
| EI | S5700-28C-EI/S5700-28C-PWR-EI: 24 × 10/100/1000Base-T | |||
| S5700-52C-EI/S5700-52C-PWR-EI: 48 × 10/100/1000Base-T | ||||
| S5700-28C-EI-24S: 20 × 100/1000Base-X, 4 × GE Combo | ||||
| S5710-28C-EI/S5710-28C-PWR-EI-AC: 20 x 10/100/1000Base-T, 4 × GE Combo, 4 × 10GE SFP+ | ||||
| S5710-52C-EI/S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: 48 x 10/100/1000Base-T, 4 × 10GE SFP+ | ||||
| S5720-32P-EI-AC: 24×10/100/1000Base-T, 4×100/1000Base-X SFP, 4 Gig SFP | ||||
| S5720-52P-EI-AC:48×10/100/1000Base-T, 4 Gig SFP | ||||
| S5720-36C-EI-AC/S5720-36C-PWR-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4×10 GE SFP+ | ||||
| S5720-36C-EI-28S-AC:28×100/1000Base-X SFP(4GE Combo), 4×10GE SFP+ | ||||
| S5720-36PC-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4 Gig SFP | ||||
| S5720-56C-EI-AC/S5720-56C-PWR-EI-AC/S5720-56C-PWR-EI-AC1:48×10/100/1000Base-T, 4×10GE SFP+ | ||||
| S5720-56C-EI-48S-AC: 48×100/1000Base-X SFP, 4×10GE SFP+ | ||||
| S5720-56PC-EI-AC: 48×10/100/1000Base-T, 4 Gig SFP | ||||
| S5720-32X-EI-AC: 24×10/100/1000 Base-T, 4×100/1000Base-X SFP, 4×10 GE SFP+ | ||||
| S5720-32X-EI-24S-AC: 24×100/1000Base-X SFP, 4×10/100/1000Base-T, 4×10GE SFP+ | ||||
| S5720-50X-EI-AC : 46 ×10/100/1000Base-T, 4×10GE SFP+ | ||||
| S5720-50X-EI-46S-AC: 46 ×100/1000Base-X SFP, 4×10GE SFP+ | ||||
| S5720-52X-EI-AC: 48×10/100/1000Base-T, 4×10GE SFP+ | ||||
| HI | S5700-28C-HI: 24 × 10/100/1000Base-T | |||
| S5700-28C-HI-24S: 24 × 100/1000Base-X | ||||
| S5710-108C-PWR-HI: 48 × 10/100/1000BASE-T, 8 × 10GE SFP+ | ||||
| S5720-32C-HI-24S-AC: 24×100/1000Base-X ,8 of which are dual-purpose 10/100/1000 or SFP, 4×10GE SFP+ | ||||
| S5720-56C-HI-AC/S5720-56C-PWR-HI-AC: 48×10/100/1000Base-T, 4×10GE SFP+ | ||||
| MAC address table | IEEE 802.1d compliance | |||
| MAC address learning and aging | ||||
| Static, dynamic, and blackhole MAC address entries | ||||
| Packet filtering based on source MAC addresses | ||||
| MAC address entries: S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K |
||||
| VLAN | 4K VLANs | |||
| Guest VLAN and voice VLAN | ||||
| GVRP | ||||
| MUX VLAN | ||||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||
| 1:1 and N:1 VLAN Mapping | ||||
| SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series) | ||||
| Ring protection | RRPP ring topology and RRPP multi-instance | |||
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | ||||
| SEP | ||||
| ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | ||||
| STP, RSTP, and MSTP | ||||
| BPDU protection, root protection, and loop protection | ||||
| BPDU Tunnel | ||||
| Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) | |||
| ITU-Y.1731 | ||||
| DLDP | ||||
| LACP | ||||
| E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) | ||||
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series) | ||||
| MPLS features | MPLS L3VPN | |||
| MPLS L2VPN(VPWS/VPLS) | ||||
| MPLS-TE | ||||
| MPLS QoS | ||||
| Notes: supported by S5710-EI, S5700-HI and S5710-HI | ||||
| IP routing | Static routing | |||
| RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) | ||||
| OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series) | ||||
| IPv6 features | Neighbor Discovery (ND) | |||
| Path MTU (PMTU) | ||||
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | ||||
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | ||||
| MLD v1/v2 snooping | ||||
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series) | ||||
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave | |||
| Multicast forwarding in a VLAN and multicast replication between VLANs | ||||
| Multicast load balancing among member ports of a trunk | ||||
| Controllable multicast | ||||
| Port-based multicast traffic statistics | ||||
| IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series) | ||||
| QoS/ACL | Rate limiting on packets sent and received by an interface | |||
| Packet redirection | ||||
| Port-based traffic policing and two-rate three-color CAR | ||||
| Eight queues on each port | ||||
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | ||||
| WRED (supported by the S5710-EI and S5700-HI) | ||||
| Re-marking of the 802.1p priority and DSCP priority | ||||
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID | ||||
| Rate limiting in each queue and traffic shaping on ports | ||||
| Security | User privilege management and password protection | |||
| DoS attack defense, ARP attack defense, and ICMP attack defense | ||||
| Binding of the IP address, MAC address, interface, and VLAN | ||||
| Port isolation, port security, and sticky MAC | ||||
| MFF | ||||
| Blackhole MAC address entries | ||||
| Limit on the number of learned MAC addresses | ||||
| 802.1x authentication and limit on the number of users on an interface | ||||
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | ||||
| SSH v2.0 | ||||
| Hypertext Transfer Protocol Secure (HTTPS) | ||||
| CPU defense | ||||
| Blacklist and whitelist | ||||
| Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security | |||
| Management and maintenance | Virtual cable test | |||
| Port mirroring and RSPAN (remote port mirroring) | ||||
| Remote configuration and maintenance using Telnet | ||||
| SNMP v1/v2c/v3 | ||||
| RMON | ||||
| Web NMS | ||||
| HGMP | ||||
| System logs and alarms of different levels | ||||
| 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) | ||||
| Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) | ||||
| NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) | ||||
| sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series) | ||||
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) | |||
| Supports LNP (Similar to DTP) | ||||
| Supports VCMP (Similar to VTP) | ||||
| Operating environment | Operating temperature: 0℃??0??/td> | |||
| Relative humidity: 10%??0% (non-condensing) | ||||
| Input voltage | AC: | |||
| Rated voltage range: 100 V to 240 V AC, 50/60 Hz | ||||
| Maximum voltage range: 90 V to 264 V AC, 47/63 Hz | ||||
| DC: | ||||
| Rated voltage range: ??8 V to ??0 V, DC | ||||
| Maximum voltage range: ??6 V to ??2 V DC | ||||
| Note: PoE-support switches do not use DC power supplies. | ||||
| Dimensions (W x D x H) | S5700-10P-LI-AC:250 x 180 x 43.6 mm | |||
| S5700-10P-PWR-LI-AC:320 x 220 x 43.6 mm | ||||
| S5700-28P-LI/S5700-28TP-LI-AC/S5700-28X-LI/S5700-28X-LI-24S/S5700-24TP-SI/S5700-28C-HI/S5700-28C-HI-24S/ S5701-28X-LI-AC/ S5701-28X-LI-24S-AC/ S5700-52X-LI-48CS-AC: 442 x 220 x 43.6 mm | ||||
| S5700-28P-PWR-LI/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC/S5700-52P-LI/S5700-52P-PWR-LI/S5700-28X-PWR-LI-AC/S5700-52X-LI/S5700-52X-PWR-LI-AC/ S5700-26X-SI-12S-AC/S5700-28P-LI-BAT/S5700-28P-LI-4AH/S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH: 442 x 310 x 43.6 mm | ||||
| S5710-108C-PWR-HI: 442×470.0x87.2 | ||||
| Others: 442 x 420 x 43.6 mm | ||||
| Powerconsumption | S5700-10P-LI-AC<11.5W | |||
| S5700-10P-PWR-LI-AC<139W | ||||
| S5700-28P-LI<25W | S5700-24TP-SI<40W | S5700-28C-EI<60W | S5700-28C-HI<76W | |
| S5700S-28P-LI<25W | S5700-26X-SI-12S-AC<42.3W | S5700-28C-EI-24S<63W | S5700-28C-HI-24S<80W | |
| S5700-28TP-LI-AC<26.4W | S5700-48TP-SI<64W | S5700-52C-EI<88W | S5710-108C-PWR-HI<1680W (PoE:1440W) | |
| S5700-28TP-PWR-LI-AC<469.7W(PoE:370W) | S5700-28C-SI<56W | S5710-28C-EI<100W | ||
| S5701-28TP-PWR-LI-AC<238.7W(PoE:185W) | S5700-52C-SI<78W | S5710-52C-EI<165W | S5720-32C-HI-24S-AC<172.7W | |
| S5700-52P-LI<52W | S5700-24TP-PWR-SI<455W(PoE: 370W) | S5700-28C-PWR-EI<842W (PoE: 740W) | S5720-56C-HI-AC<183.3W | |
| S5700S-52P-LI<52W | S5700-48TP-PWR-SI<907W (PoE: 740W) |
S5720-56C-PWR-HI-AC: |
||
| S5700-52C-PWR-EI<930W (PoE: 740W) | ||||
|
S5700-28P-PWR-LI<436.5W (PoE: 370W) |
||||
| S5710-28C-PWR-EI-AC<942W | ||||
| S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: < 1043W with two 580W AC supplies(PoE:740W), or <1625W with two 1150W AC supplies(PoE:1440W) | ||||
| S5720-32P-EI-AC <50.7W | ||||
| S5720-52P-EI-AC <60.3W | ||||
|
S5700-52P-PWR-LI<464.5W (PoE: 370W) |
S5720-36C-EI-AC <75.8W | |||
|
S5720-36C-PWR-EI-AC : |
||||
| S5720-36PC-EI-AC<74.6W | ||||
| S5720-36C-EI-28S-AC<83.9W | ||||
| S5700-28X-LI<42W |
S5720-56C-EI-AC<86.9W |
|||
| S5700-28X-LI-24S<54W | S5720-56C-PWR-EI-AC: without PD: <91.6W, with PD:<889.4W(PoE:740W) |
|||
|
S5700-28X-PWR-LI-AC <448.8W (PoE: 370W) |
S5720-56C-PWR-EI-AC1: without PD: <91.6W, with PD:<1564.8W(PoE:1440W) |
|||
| S5700-52X-LI<61W | S5720-56PC-EI-AC<85.7W | |||
|
S5700-52X-PWR-LI-AC <479.3W (PoE: 370W) |
S5720-56C-EI-48S-AC<104W | |||
| S5700-28P-LI-BAT/S5700-28P-LI-4AH<23W | S5720-32X-EI-AC <51.9W | |||
| S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH<34.1W | S5720-32X-EI-24S-AC<58.9W | |||
| S5700-52X-LI-48CS-AC<79.9W | S5720-50X-EI-AC<55.3W | |||
| S5701-28X-LI-AC <39.5W | S5720-50X-EI-46S-AC<81.5W | |||
| S5701-28X-LI-24S-AC<60W | S5720-52X-EI-AC <61.5W |
