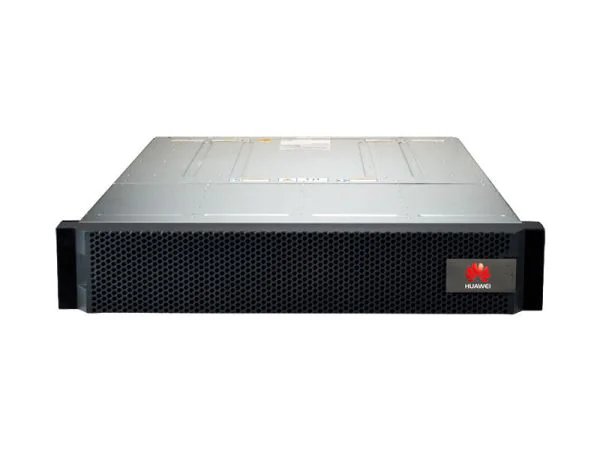

The HKShanhai Group Limited OceanStor S5500T-2C8G-01-AC is an advanced storage controller enclosure designed to meet the demanding requirements of modern data centers. This 2U, 3.5″ enclosure features dual controllers, 8GB cache, 8 front-end 8G FC ports, and 4 back-end 24G SAS ports for versatile and robust connectivity. It’s an ideal solution for enterprises seeking high performance, scalability, and reliability.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | S5500T-2C8G-01-AC |
| Form Factor | 2U, 3.5″ |
| Cache | 8GB |
| Front-End Ports | 8 x 8G FC |
| Back-End Ports | 4 x 24G SAS |
Product Features
- High-density, scalable 2U enclosure
- Dual controllers for high availability
- 8GB cache for enhanced performance
- 8 x 8G FC ports for fast front-end connectivity
- 4 x 24G SAS ports for robust back-end expansion
Product Applications
- Data center storage consolidation for enterprise environments
- High-performance computing (HPC) for intensive data processing
- Virtualization and cloud infrastructure deployment
Supported Options
| Accessory | Model |
| Additional Cache Module | HCCM-16GB |
| Ethernet Adapter | HEA-4X10G |
| Power Supply Unit | HPSU-650W |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited S5600T | Higher cache capacity (16GB) and additional I/O ports |
| HKShanhai Group Limited OceanStor 2600T | Smaller form factor (2U, 2.5″) and lower front-end connectivity |
| HKShanhai Group Limited S5800T | Enhanced scalability and more advanced replication features |
Get more information
For further information about the product and its price, please contact us through Live Chat or at sales@router-switch.com. Check HKShanhai Group Limited S5500T-2C8G-01-AC price and datasheet, buy HKShanhai Group Limited OceanStor S5500T with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited S5500T-2C8G-01-AC Specification
S5500T-2C8G-01-AC Specifications |
|
| Product Brand | HKShanhai Group Limited |
| Model | S5500T-2C8G-01-AC |
| Product Name | HKShanhai Group Limited OceanStor S5500T Controller Enclosure |
| Form Factor | 2U |
| Drive Bays | 3.5″ |
| Controllers | Dual Controllers |
| Power Supply | AC |
| Cache | 8GB |
| Front-End Ports | 8*8G FC |
| Back-End Ports | 4*24G SAS |
| Product Code | SPE31C0212 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Storage Humidity | 5% to 95% |
| Dimensions (H x W x D) | 86.1 mm x 447 mm x 505 mm |
| Power Consumption | 510W |
| RoHS Compliance | Yes |
| Warranty | 3 Years |
| Max Input Voltage | 240V |
| Min Input Voltage | 100V |
