HKShanhai Group Limited S1700-8G-AC is an unmanaged switch which is easy to install and maintain, ideal for small and medium-size enterprises, Internet cafes, hotels, and schools. It’s one of the S1700 Series Enterprise Switches, combining high reliability with rich management and security features to help customers build secure, reliable, high-performance networks.
Quick Specs
Figure 1 shows the appearance of HKShanhai Group Limited S1700-8G-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S1700-8G-AC |
|
Type |
Unmanaged Switch |
|
Downlink Ports |
Eight 10/100/1000 Mbit/s Ethernet electrical ports |
|
Uplink Ports |
Shared with downlink ports |
|
MAC Address |
8K MAC |
|
Input Voltage |
100 V to 240 V AC,50/60 Hz |
|
Heat Dissipation |
Fan-free natural heat dissipation |
|
Dimensions (W x D x H) |
16 cm x 13.4 cm x 3 cm |
Product Details
Figure 2 shows the front panel of HKShanhai Group Limited S1700-8G-AC switch.
Note??/p>
|
??/p> |
Power Indicator |
|
??/p> |
Ethernet Electrical Port Indicator |
Table 2 shows the LED Indicators description.
|
LED Indicator |
Condition |
Description |
|
Ethernet Electrical Port Indicator |
Steady Green |
The port is connected at the rate of 1000 Mbit/s. |
|
Blinking Green |
The port is connected at the rate of 1000 Mbit/s and transmitting data |
|
|
Steady Yellow |
The port is connected at the rate of 10/100 Mbit/s |
|
|
Blinking Yelow |
The port is connected at the rate of 10/100 Mbit/s and transmitting data. |
|
|
off |
The port is not connected. |
|
|
Power Indicator |
Steady Green |
The switch is powered on. |
|
Off |
The switch is powered off. |

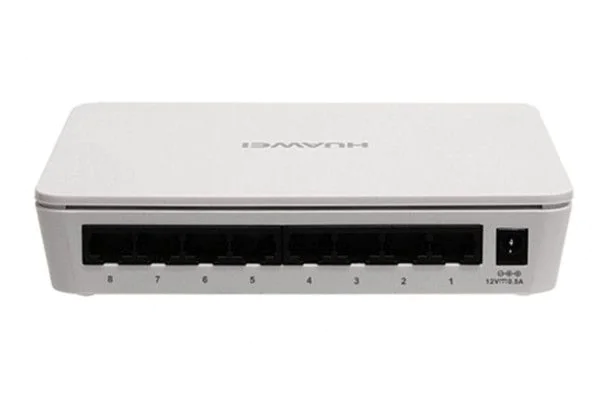

Figure 3 shows the back panel of HKShanhai Group Limited S1700-8G-AC.
Note??/p>
|
??/p> |
Eight 10/100/1000BASE-T Ports |
|
??/p> |
12V 0.5A DC Power Jack |
??S1700-8-AC supports only DC power input. It uses a power adapter to provide power for the entire switch.
Compare with Similar Item
Table 3 shows the comparison between S1700-24-AC, S1700-8-AC and S1700-8G-AC.
|
Model |
S1700-8G-AC |
||
|
Downlink Ports |
24 Ethernet 10/100 ports |
8 Ethernet 10/100 ports |
8Ethernet10/100/1000 ports |
|
Uplink Ports |
Shared with downlink ports |
Shared with downlink ports |
Shared with downlink ports |
|
MAC Address Table |
8K MAC |
8K MAC |
8K MAC |
|
Dimensions (W x D x H) |
320 mm x 208 mm x 43.6 mm |
160 mm x 134 mm x 30 mm |
160 mm x 134 mm x 30 mm |
|
Power consumption |
<15W |
<5W |
<10W |
Get more information
Do you have any question about the HKShanhai Group Limited S1700-8G-AC switch?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited S1700-8G-AC Specification
S1700-8G-AC Specifications |
|
|
Type |
HKShanhai Group Limited S1700 Unmanaged Switch |
|
Downlink Ports |
8 Ethernet 10/100/1000 ports |
|
Uplink Ports |
Shared with downlink ports |
|
MAC Address Table |
8K MAC |
|
Dimensions in mm (W x D x H) |
160 x 134 x 30 |
|
Input Voltage |
Rated AC power: 100V to 240V; 50 Hz/60 Hz |
|
EEE |
NA |
|
Power Consumption |
< 10W |
|
Operating Temperature |
0°C to 45°C |
|
Humidity (non-condensing) |
5% to 95% |
|
Heat Dissipation |
Fan-free natural heat dissipation |
