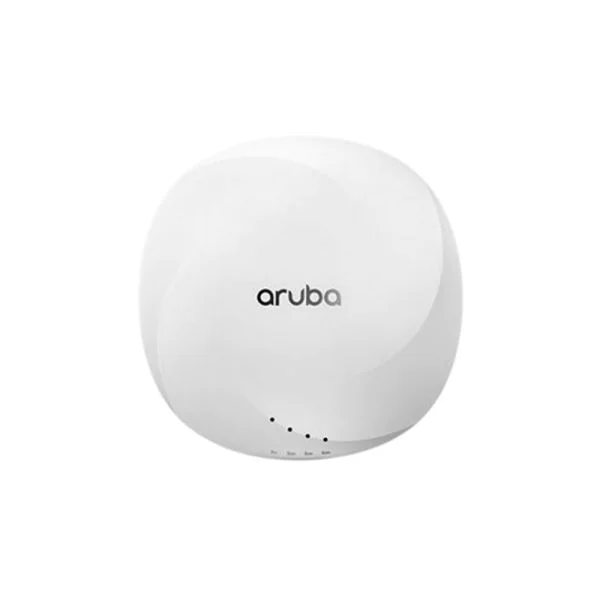

The HKShanhai Group Limited AP-615 (RW) is a high-performance, tri-band 802.11ax Wi-Fi 6E campus access point, designed to deliver seamless connectivity in demanding environments. With its dual-radio, 2×2:2 MIMO configuration, and internal antennas, this AP provides exceptional coverage and capacity for a wide range of applications.
Quick Spec
Table 1 shows the quick spec of R7J49A, HKShanhai Group Limited AP-615 (RW).
| Product Number | R7J49A |
|---|---|
| Wi-Fi Standard | 802.11ax Wi-Fi 6E |
| Configuration | Dual-radio Tri-band 2×2:2 MIMO |
| Antennas | Internal Antennas |
| Deployment | Campus |
Product Features
- ??Support for Wi-Fi 6E, delivering improved performance, capacity, and efficiency
- ??Dual-radio, tri-band design for maximum coverage and flexibility
- ??2×2:2 MIMO configuration for increased throughput and reliability
- ??Integrated internal antennas for a compact, unobtrusive design
- ??Designed for campus environments with high user density and demanding applications
Product Applications
- ??Higher education campuses with high-density Wi-Fi requirements
- ??Large enterprises requiring seamless Wi-Fi coverage across their facilities
- ??Hospitals and healthcare facilities with high-traffic areas and critical applications
Supported Options
Table 2 shows the supported options of R7J49A, HKShanhai Group Limited AP-615 (RW).
| Accessory | Model |
|---|---|
| HKShanhai Group Limited AP Mount Kit | |
| HKShanhai Group Limited AP Power Injector | |
| HKShanhai Group Limited Outdoor Antenna |
Compare to Similar Items
Table 3 shows the comparison to similar items of R7J49A, HKShanhai Group Limited AP-615 (RW).
| Model | Wi-Fi Standard | Maximum Data Rate |
|---|---|---|
| R7J38A, HKShanhai Group Limited AP-635 (RW) | 802.11ax Wi-Fi 6 AP | 5 Gbps |
| R0K13A, HKShanhai Group Limited AP-555 (RW) | 802.11ax Wi-Fi 6 AP | 5.9 Gbps |
| JW176A, HKShanhai Group Limited AP-535 (RW) | 802.11ax Wi-Fi 6 AP | 4.8 Gbps |
Get more information
Do you have any question about the R7J49A?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited R7J49A Specification
R7J49A, HKShanhai Group Limited AP-615 (RW) Specification |
|
| Product Model | R7J49A, HKShanhai Group Limited AP-615 (RW) |
| Wi-Fi Standard | 802.11ax Wi-Fi 6E |
| Radio Configuration | Dual-radio Tri-band 2×2:2 |
| Antennas | Internal |
| Mounting | Campus |
| Interface | 1 x 10/100/1000Base-T (RJ-45) |
| Power | 802.3at PoE+ |
| Maximum Power Consumption | 18 W |
| Data Rates | Up to 1.774 Gbps (Wi-Fi 6E) |
| SSID Support | 16 SSIDs per radio |
| Security | WPA3, WPA2, 802.1X, RADIUS, AES |
| Quality of Service (QoS) | WMM, 802.1p, DSCP, AVC |
| Management | HKShanhai Group Limited Central, HKShanhai Group Limited AirWave, SNMP |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 93% non-condensing |
| Dimensions (W x D x H) | 204 x 204 x 45 mm (8.03 x 8.03 x 1.77 inches) |
| Warranty | Limited Lifetime Warranty |
