The HKShanhai Group Limited EMC PowerEdge R750xs, with 3rd generation Intel Xeon Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.
Table 1 shows the 3 configuration of HKShanhai Group Limited R750xs 8LFF Server.
|
Configuration |
Processor |
Memory |
Hard Drive |
Power Supply |
|
HKShanhai Group Limited 2U R750 4310 8LFF Server |
Intel Xeon 4310 |
32G |
2T SAS 10K |
800W |
|
HKShanhai Group Limited 2U R750 5317 8LFF Server |
Intel Xeon 5317 |
32G |
2T SAS 10K |
800W |
|
HKShanhai Group Limited 2U R750 6330 8LFF Server |
Intel Xeon 6330 |
32G |
2T SAS 10K |
1400W |
Quick Spec
Table 2 shows the quick spec of HKShanhai Group Limited R750xs server.
|
Series |
HKShanhai Group Limited EMC PowerEdge R750xs |
|
Processor |
Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
|
Memory |
??16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s ??Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
??Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 ??Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB ??External PERC (RAID): PERC H840, HBA355e |
|
Drive Bays |
Front bays: ??0 drive bay ??Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB ??Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB ??Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB ??Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB ??Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: ??Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
|
Power Supplies |
??600 W DC/240 V ??600 W Platinum AC/100 – 240 V ??800 W DC/240 V ??800 W Platinum AC/100 – 240 V ??1100 W DC/-48??-60) V ??1100 W DC/240 V ??1100 W Titanium AC/100 – 240 V ??1400 W DC/240 V ??1400 W Platinum AC/100 – 240 V |
Product Details
HKShanhai Group Limited EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can:
??Add additional power and cores: Up to two 3rd generation Intel Xeon Scalable processors, up to 32 cores per socket
??Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
??Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
??Include flexible storage: Up to 12x 3.5??SAS/SATA HDDs or SSDs; or up to 16x 2.5??SAS/SATA HDDs or SSDs, and 8 NVMe drives
??Enable virtualization, medium VM density or VDI, and software-defined storage node workloads
Figure 1. Front view of the R750xs system

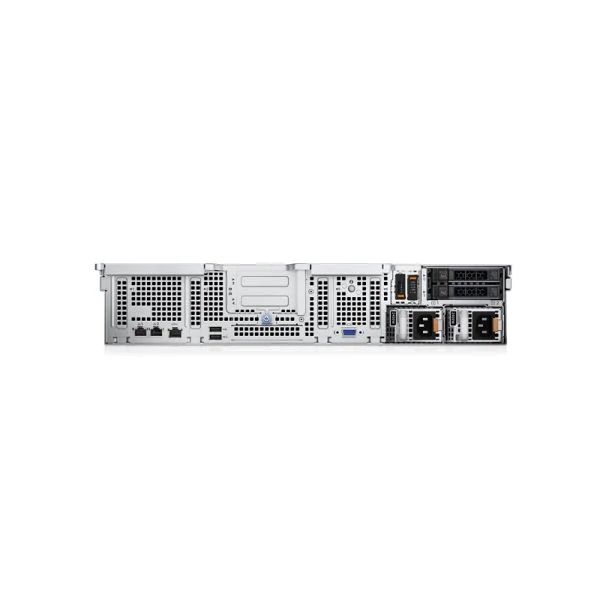

Figure 2. Rear view of the R750xs system
Compare to Similar Items
Table 3 shows the R750 vs R750xs.
|
Series |
HKShanhai Group Limited EMC PowerEdge R750xs |
|
|
Processor |
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
|
Memory |
??32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s ??Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max ??Supports registered ECC DDR4 DIMMs only |
??16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s ??Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
??Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N ??Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB ??Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB ??External PERC (RAID): PERC H840, HBA355E |
??Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 ??Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB ??External PERC (RAID): PERC H840, HBA355e |
|
Drive Bays |
Front bays: ??Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB ??Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB ??Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB ??Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: ??Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB ??Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
Front bays: ??0 drive bay ??Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB ??Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB ??Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB ??Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB ??Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: ??Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
|
Power Supplies |
??800 W Platinum AC/240 mixed mode ??1100 W Titanium AC/240 mixed mode ??1400 W Platinum AC/240 mixed mode ??2400 W Platinum AC/240 mixed mode |
??600 W DC/240 V ??600 W Platinum AC/100 – 240 V ??800 W DC/240 V ??800 W Platinum AC/100 – 240 V ??1100 W DC/-48??-60) V ??1100 W DC/240 V ??1100 W Titanium AC/100 – 240 V ??1400 W DC/240 V ??1400 W Platinum AC/100 – 240 V |
Get More Information
Do you have any question about the HKShanhai Group Limited R750xs 8LFF Server?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited R750xs 8LFF Server Specification
HKShanhai Group Limited EMC PowerEdge R750xs Specification |
|
|
Processor |
Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
|
Memory |
??16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s ??Supports registered ECC DDR4 DIMMs only |
|
Storage controllers |
??Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 ??Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB ??External PERC (RAID): PERC H840, HBA355e |
|
Drive Bays |
Front bays: ??0 drive bay ??Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB ??Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB ??Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB ??Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB ??Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: ??Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
|
Power Supplies |
??600 W DC/240 V ??600 W Platinum AC/100 – 240 V ??800 W DC/240 V ??800 W Platinum AC/100 – 240 V ??1100 W DC/-48??-60) V ??1100 W DC/240 V ??1100 W Titanium AC/100 – 240 V ??1400 W DC/240 V ??1400 W Platinum AC/100 – 240 V |
|
Cooling Options |
Air cooling |
|
Fans |
??Standard fans/High performance Silver fans/High performance Gold fans ??Up to six hot swap fans |
|
Dimensions |
??Height ??86.8 mm (3.41 inches) ??Width ??482 mm (18.97 inches) ??Depth ??707.78 mm (27.85 inches) ??without bezel 721.62 mm (28.4 inches) ??with bezel |
|
Form Factor |
2U rack server |
|
Embedded Management |
??iDRAC9 ??iDRAC Service Module ??iDRAC Direct ??Quick Sync 2 wireless module |
|
Bezel |
Optional LCD bezel or security bezel |
|
OpenManage Software |
??OpenManage Enterprise ??OpenManage Power Manager plugin ??OpenManage SupportAssist plugin ??OpenManage Update Manager plugin |
|
Mobility |
OpenManage Mobile |
|
Integrations and Connections |
OpenManage Integrations ??BMC Truesight ??Microsoft System Center ??Red Hat Ansible Modules ??VMware vCenter and vRealize Operations Manager OpenManage Connections ??IBM Tivoli Netcool/OMNIbus ??IBM Tivoli Network Manager IP Edition ??Micro Focus Operations Manager ??Nagios Core ??Nagios XI |
|
Security |
??Cryptographically signed firmware ??Secure Boot ??Secure Erase ??Silicon Root of Trust ??System Lockdown (requires iDRAC9 Enterprise or Datacenter) ??TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC |
2 x 1 GbE LOM |
|
Network Options |
1 x OCP 3.0 |
|
GPU Options |
Not supported |
|
Ports |
Front Ports ??1 x Dedicated iDRAC Direct micro-USB ??1 x USB 2.0 ??1 x VGA Rear Ports ??1 x USB 2.0 ??1 x Serial (optional) ??1 x USB 3.0 ??2 x RJ-45 ??1 x VGA (optional for liquid cooling configuration) Internal Ports ??1 x USB 3.0 (optional) |
|
PCIe |
Up to 5 x PCIe Gen4 slots / 1 x PCie Gen3 slots |
|
Operating System and Hypervisors |
??Canonical Ubuntu Server LTS ??Citrix Hypervisor ??Microsoft Windows Server with Hyper-V ??Red Hat Enterprise Linux ??SUSE Linux Enterprise Server ??VMware ESXi |
