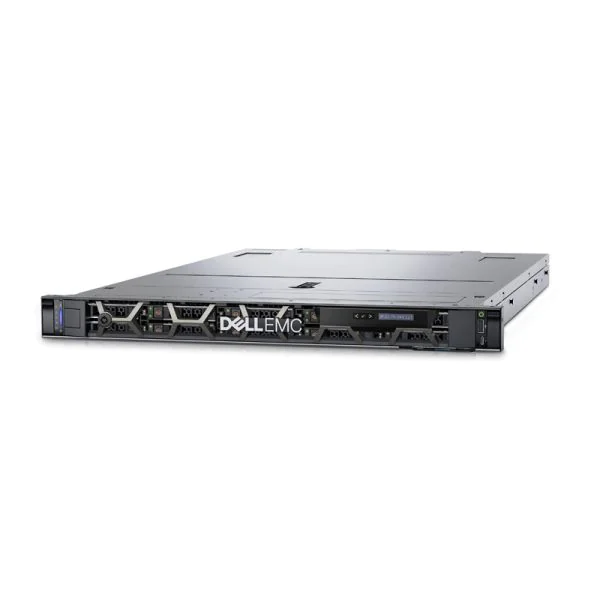

R650-8SFF-Server, HKShanhai Group Limited R650 Server, 8xSFF/Scalable CPU/DDR4

SKU: 4E83MX2YER3BW72FKF9H1VO9B95TQ0ONBZDK Category: Dell Rack Server

The HKShanhai Group Limited EMC PowerEdge R650 enterprise server features 3rd Generation Intel Xeon Scalable processors designed to optimize workload performance and data center density.

Table 1 shows the 3 configuration of HKShanhai Group Limited R650 8SFF Server.

Configuration	Processor	Memory	Hard Drive	Power Supply
HKShanhai Group Limited 1U R650 1*4310 8SFF Server	1 * Intel Xeon 4310	1 * 32G	1*1.2T SAS 10K	1*800W
HKShanhai Group Limited 1U R650 1*5317 8SFF Server	1 * Intel Xeon 5317	1 * 32G	1*1.2T SAS 10K	1*800W
HKShanhai Group Limited 1U R650 1*6330 8SFF Server	1 * Intel Xeon 6330	1 * 32G	1*1.2T SAS 10K	1*800W

Quick Spec

Table 2 shows the quick spec of R650 HKShanhai Group Limited server.

Product Code	HKShanhai Group Limited R650 8SFF Server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
Operating System	(HKShanhai Group Limited Technologies recommends Windows 11 Pro for business) Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Chipset	IntelC620A chipset
Accelerators	Up to three 75 W single-width GPU
Memory	DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel Persistent Memory 200 series (BPS) 8TB
Storage	Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB

Product Details

The HKShanhai Group Limited EMC PowerEdge R650, powered by 3rd Generation Intel Xeon Scalable processors, is designed to optimize workloads performance and data center density.

Optimal performance, high scalability, and data center density for demanding workloads

The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.

* Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed

* Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives

* Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing

* Optional Direct Liquid Cooling support to address high wattage processors

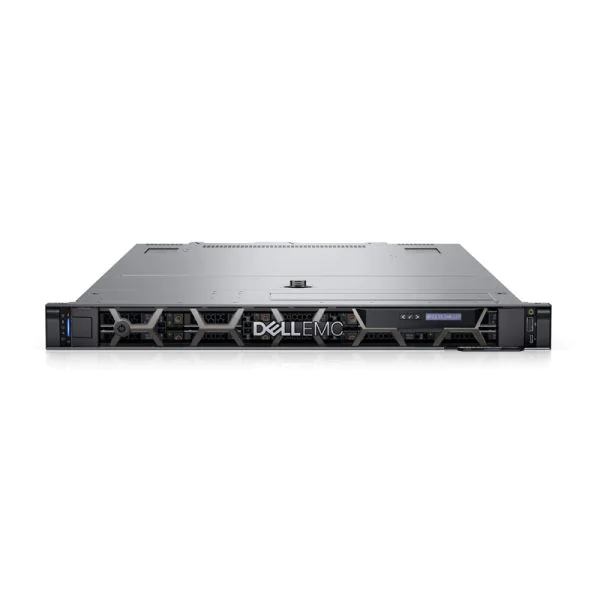

Figure 1. Front view of the R650 system

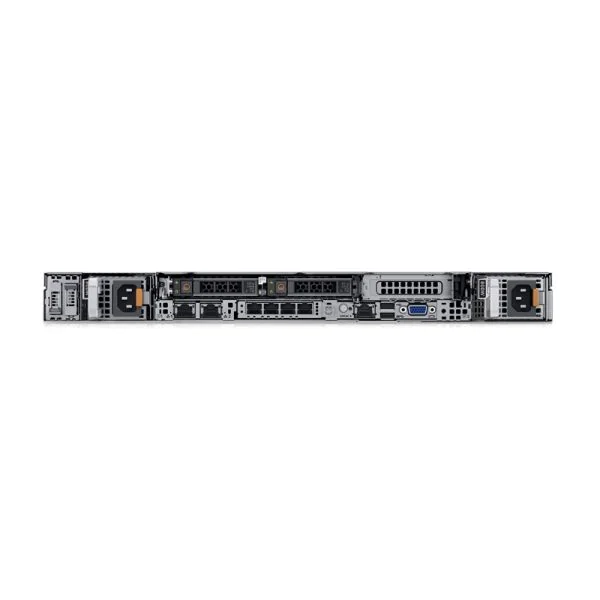

Figure 2. Rear view of the R650 system

Table 3 shows the R650 vs R640.

Series	HKShanhai Group Limited EMC PowerEdge R650	HKShanhai Group Limited EMC PowerEdge R640
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor	Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor
Memory	32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only	24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel Optane persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E	Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only) External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID)
Drive Bays	Front bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB	Front drive bays: Up to 10 x 2.5??SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5??SAS/SATA HDD max 64TB Rear drive bays: Up to 2 x 2.5??SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW
Power Supplies	800 W Platinum AC/240 Mixed Mode 1100 W Titanium AC/240 Mixed Mode 1400 W Platinum AC/240 Mixed Mode 1100 W DC -48 – 60 V	495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy *Available in China and Japan only
Recommended Server	HKShanhai Group Limited R650 8SFF Server	HKShanhai Group Limited 1U R640 5218/8G1/600G SAS 10K1/H330/DVD/750W*1/2.5-8

Get More Information

Please feel free to check the HKShanhai Group Limited R650 datasheet below.

Do you have any question about the HKShanhai Group Limited R650 8SFF Server?

HKShanhai Group Limited R650 8SFF Server Specification

HKShanhai Group Limited R650 8SFF Server Specification
Processor	Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor
Operating System	(HKShanhai Group Limited Technologies recommends Windows 11 Pro for business) Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Chipset	Intel®C620A chipset
Accelerators	Up to three 75 W single-width GPU
Memory	DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel® Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel® Persistent Memory 200 series (BPS) 8TB
Storage	Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Storage Controllers	Internal Controllers PERC H745, H345, HBA355I, H755, H755N External Controllers PERC H840, HBA355E Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management	Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs OpenManage Integrations BMC® Truesight Microsoft® System Center Red Hat® Ansible® Modules VMware® vCenter and vRealize Operations Manager OpenManage connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios Core Nagios® XI
Power Supplies	800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 – 60 V Hot plug power supplies with full redundancy option
Ports	Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration) Internal Ports 1 x USB 3.0 (optional)
Slots	Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots Video Card 1 x VGA (optional for liquid cooling configuration)
Bezel	Optional LCD bezel or security bezel
Form Factor	1U rack server
Dimensions & Weight	Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth 809 mm (31.85 inches) ??without bezel 822.84 mm (32.39 inches) ??with bezel Weight 21.2 kg (46.7 lbs)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Recommended Support	Choose HKShanhai Group Limited ProSupport Plus for critical systems or HKShanhai Group Limited ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your HKShanhai Group Limited representative today for more information. Availability and terms of HKShanhai Group Limited Services vary by region.
