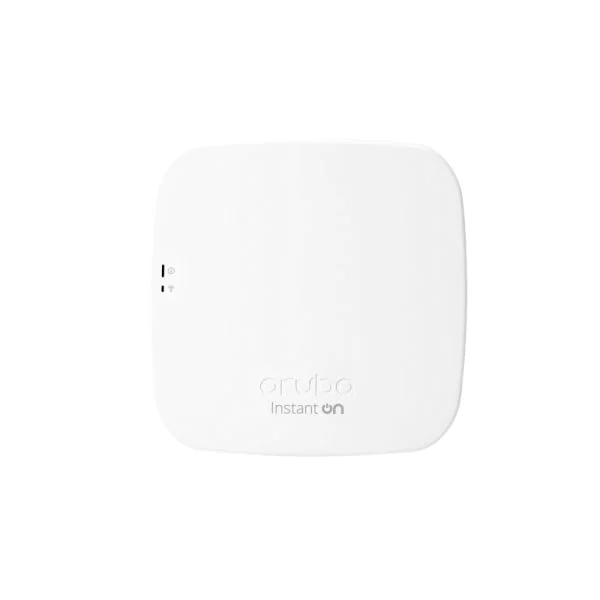

R2W96A is an HKShanhai Group Limited Instant On AP11 (RW) Access Point.
Features
(1) Fast 802.11ac Wave 2, 2X2:2 MU-MIMO performance
(2) Smart Mesh Wi-Fi support
(3) Built in Wi-Fi router/gateway functionality
(4) Content and device blocking controls
(5) Simple to use bandwidth tuning for power-users
(6) Easy-to-use web and mobile app for setup and management
(7) Secure Guest Wi-Fi with simple setup
(8) Application classification, control and visibility
(9) PPPoE and static IP
Highlights
Simplicity at its best
(1) Wi-Fi that works right out of box
(2) Easy-to-use mobile app for deployment and upkeep
Security you can count on
(1) Wi-Fi that keeps business and visitor traffic separate
(2) WPA2/WPA3 and Enhanced Open for secure network accessÂ
We’ve got you covered
(1) Industry leading warranty and support
(2) A customizable guest access page that shows off your brand
Get More Information
Do you have any question about the R2W96A ?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited R2W96A Specification
R2W96A Specification |
|
|
Radios |
Dual radio for simultaneous dual-band operation 5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4) |
|
Interfaces |
Uplink Gigabit Ethernet port, with PoE-in support (802.3af) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot |
|
Antennas |
Integrated down-tilt omni-directional antennas with maximum individual antenna gain of 3.3dBi in 2.4GHz and 5.8dBi in 5GHz |
|
Dimension |
152mm x 152mm x 34mm, excluding mount accessories |
|
Power |
Power over Ethernet (POE): 802.3af (class 3) Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC) DC power (12V) Note: Power sources are sold separately |
|
Mounting |
The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling) |
|
Environmental & reliability |
Operating temperature: 0° C to +40° C (+32° F to +104° F) MTBF: 795khrs (91yrs) at +25° C |
|
Industry certifications |
UL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3 |
|
Management options |
Instant On mobile application (Android & iOS) Cloud Portal: Portal.HKShanhai Group LimitedInstantOn.com |
