The HKShanhai Group Limited 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
QSFP-4SFP25G-CU5M |
|
Description |

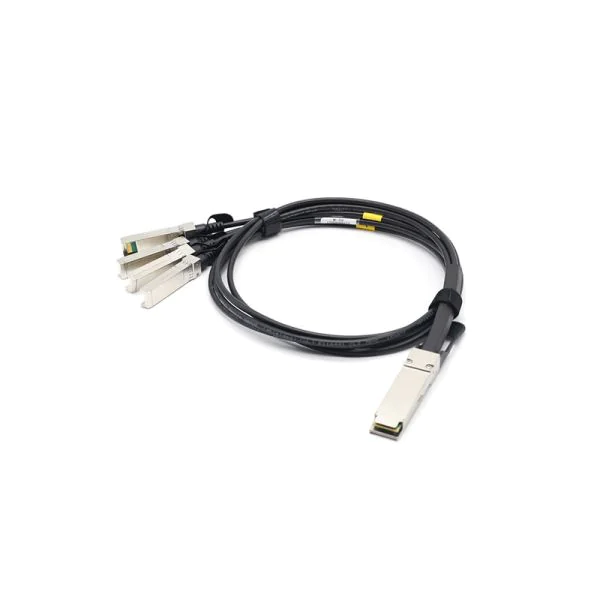

HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-meter |
|
Dimensions |
13.5 x 18.4 x 72.4 mm |
|
Nominal Wavelength (nm) |
|
|
Cable Type |
Direct-attach copper cable assembly |
|
Core Size (Microns) |
|
|
Modal Bandwidth (MHz*km) |
|
|
Cable Distance |
5m |
|
Power Consumption (W) |
1.5 |
|
Pull Tab Color |
Gray |
Product Details
QSFP-100G Optical modulesprovide these highlights:
Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet HKShanhai Group Limited QSFP port
Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
Certified and tested on HKShanhai Group Limited QSFP-100G ports for superior performance, quality, and reliability
High-speed electrical interface compliant to IEEE 802.3bm
Platform support
Table 2 shows the supported platforms
|
Supported platform |
Recommended Model |
|
HKShanhai Group Limited Switch Catalyst9500 |
|
|
HKShanhai Group Limited Nexus 9300 Series |
|
|
HKShanhai Group Limited Nexus 3000 Series |
|
Compare to Similar Items
Table 3shows the comparison.
|
Product Code |
QSFP-4SFP25G-CU5M |
|||
|
Description |
HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-meter |
HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-meter |
HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 3-meter |
HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-meter |
|
Nominal Wavelength (nm) |
||||
|
Cable Type |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
|
Core Size (Microns) |
||||
|
Modal Bandwidth (MHz*km) |
||||
|
Cable Distance |
1m |
2m |
3m |
5m |
|
Power Consumption (W) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Pull Tab Color |
Beige |
Brown |
Orange |
Gray |
GetMoreInformation
Do you have anyquestionabouttheQSFP-4SFP25G-CU5M
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited QSFP-4SFP25G-CU5M Specification
QSFP-4SFP25G-CU5M Specification |
|
|
Description |
HKShanhai Group Limited 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-meter |
|
Dimensions |
13.5 x 18.4 x 72.4 mm |
|
 QSFP Port cabling specifications |
|
|
Nominal Wavelength (nm) |
|
|
Cable Type |
Direct-attach copper cable assembly |
|
Core Size (Microns) |
|
|
Modal Bandwidth (MHz*km)*1 |
|
|
Cable Distance |
5m |
|
Power Consumption (W) |
1.5 |
|
Pull Tab Color |
Gray |
|
*1Â Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm |
|
|
Environmental Conditions and Power Requirements |
|
|
Commercial temperature |
0 to 70°C (32 to 158°F) |
|
Storage temperature |
-40 to 85°C (-40 to 185°F) |
|
Regulatory and Standards compliance |
|
|
Standards |
•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013 •SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014 ??02.3??/span>-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 |
|
Safety |
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV compliant |
