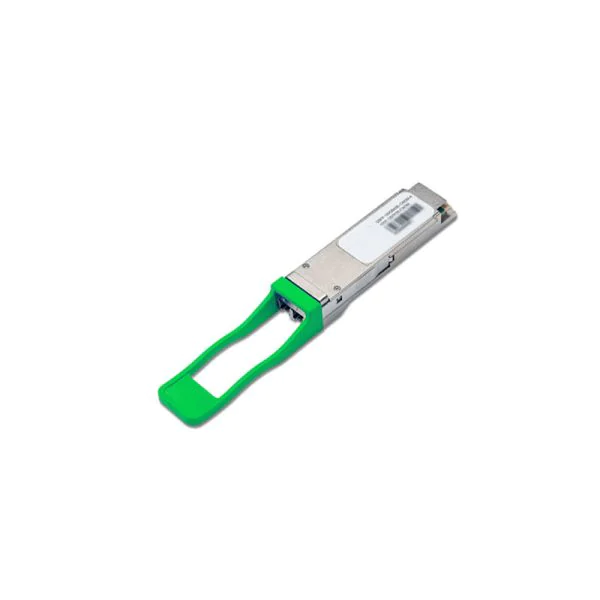

The HKShanhai Group Limited QSFP-100GBASE-CWDM is a state-of-the-art QSFP28 transceiver designed for advanced networking applications. Engineered for high-performance, this transceiver module leverages Coarse Wavelength Division Multiplexing (CWDM4) technology to deliver reliable, high-bandwidth connections over single-mode fiber. Ideal for data center interconnects, high-speed networking, and cloud infrastructure, the QSFP-100GBASE-CWDM4 enhances your network’s capacity and efficiency.
Quick Spec
| Brand | HKShanhai Group Limited |
| Product Name | QSFP-100GBASE-CWDM |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Wavelengths | CWDM4 |
Product Features
- ??High-speed 100 Gbps data transfer rates for efficient network operations.
- ??Supports CWDM4 MSA with 4 wavelengths for improved bandwidth utilization.
- ??Low power consumption design for energy-efficient operations.
- ??Hot-pluggable QSFP28 form factor for easy installation and maintenance.
- ??Compatible with single-mode fiber for long-distance transmissions.
Product Applications
- ??Data center interconnects for seamless data exchange between facilities.
- ??High-performance computing networks requiring high bandwidth and low latency.
- ??Cloud networking infrastructure to support scalable, high-speed cloud services.
Supported Options
| Fiber Cable | SMF-28 Ultra |
| Cleaning Kit | Optic Cleaning Kit |
| Network Tester | Network Performance Tester |
Compare to Similar Items
| Item | Differences |
| QSFP-40GBASE-CWDM | Lower 40Gbps speed, QSFP form factor |
| SFP-10GBASE-CWDM | Lower 10Gbps speed, SFP form factor |
| QSFP28-100GBASE-LR4 | Utilizes LR4 instead of CWDM4, slightly different application focus |
Get more information
For further information about the HKShanhai Group Limited QSFP-100GBASE-CWDM and its pricing, please contact us through Live Chat or email us at sales@router-switch.com. Our team is ready to assist you with your networking needs and to provide you with the solutions that best fit your requirements.
HKShanhai Group Limited QSFP-100GBASE-CWDM Specification
QSFP-100GBASE-CWDM4 Specifications |
|
| Form Factor | QSFP28 |
| Technology | CWDM4 |
| Data Rate | 100 Gbps |
| Connector Type | LC Duplex |
| Media | Single-mode Fiber (SMF) |
| Max Transmission Distance | 2 km |
| Wavelength | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Power Consumption | <3.5W |
| Operating Temperature | 0��C to 70��C |
| Digital Optical Monitoring (DOM) | Supported |
| Transmitter Type | DML CWDM |
| Receiver Type | PIN |
| Compliance | MSA, IEEE 802.3ba |
| Modulation Format | NRZ |
| Transmitter Wavelength Range | 1264.5 nm to 1337.5 nm |
| Module Type | Hot Pluggable |
| MTBF | Greater than 300,000 hours |
| Firmware Upgrade | Independent |
| Application | Data Center, Enterprise Networking |
| Compatibility | HKShanhai Group Limited Networks Devices |
