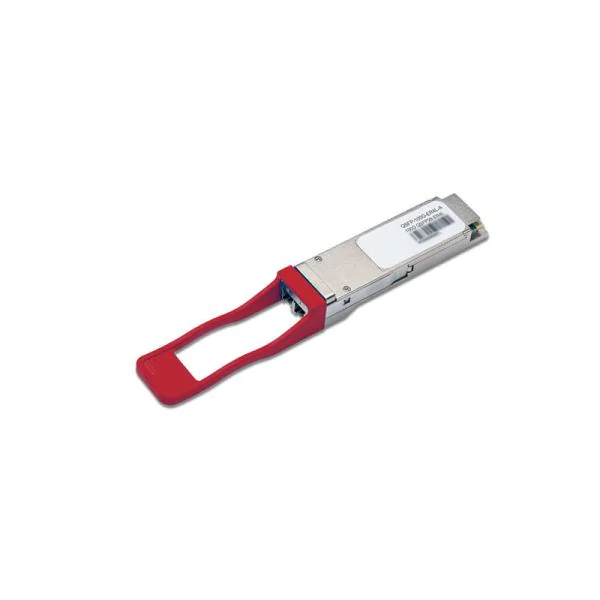

The HKShanhai Group Limited QSFP-100G-ER4L is a high-performance 100GBASE-ER4-Lite QSFP28 pluggable module designed exclusively to support Ethernet rates. This module is ideal for high-density applications, providing robust and reliable connectivity over long-range distances. Tailored for seamless integration into existing networks, it ensures uninterrupted data transmission and enhanced network efficiency.
Quick Spec
| Brand | HKShanhai Group Limited |
| Product Name | QSFP-100G-ER4L |
| Interface | QSFP28 |
| Data Rate | 100 Gbps |
| Reach | Up to 30 km |
| Wavelength Range | 1295 nm to 1310 nm |
| Operating Temperature | -5C to 70C |
Product Features
- ??Supports only Ethernet rate
- ??100GBASE-ER4-Lite standard compliance
- ??Up to 30 km reach on single-mode fiber (SMF)
- ??Hot-swappable QSFP28 form factor
- ??Low power consumption
Product Applications
- ??Inter-data center connectivity extending up to 30 km
- ??High-bandwidth applications in enterprise and service provider networks
- ??Long-haul data transmission in telecom networks
Supported Options
| Accessory | Model |
| QSFP28 Adapter | QSFPCAGE-ADPT |
| Optical Fiber Patch Cable | SMFC-PC |
| Dust Caps | CAP-QSFP |
Compare to Similar Items
| Model | Difference |
| QSFP-40G-LR4 | Supports 40 Gbps and up to 10 km reach |
| QSFP-100G-LR4 | Supports 100 Gbps but up to 10 km reach |
| QSFP-100G-SR4 | Supports 100 Gbps but up to 100 meters reach |
Get more information
Check HKShanhai Group Limited QSFP-100G-ER4L price and QSFP-100G-ER4L datasheet, buy HKShanhai Group Limited QSFP-100G-ER4L module with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
HKShanhai Group Limited QSFP-100G-ER4L Specification
QSFP-100G-ER4L Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | QSFP-100G-ER4L |
| Type | Optical Transceiver |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Transmission Distance | 40 km |
| Wavelength | 1295 nm to 1310 nm |
| Connector Type | LC Duplex |
| Cable Type | Single-Mode Fiber (SMF) |
| Max Output Power | 4.5 dBm |
| Receiver Sensitivity | -19 dBm |
| Power Supply | 3.3V |
| Power Consumption | 4.5 W |
| Temperature Range | 0��C to 70��C |
| Humidity Range | 5% to 85%, non-condensing |
| Protocol | 100GBASE-ER4-Lite |
| Rate Support | Ethernet Only |
| MTBF | Up to 5 million hours |
| Standards Compliance | IEEE 802.3ba, RoHS6 |
| Digital Diagnostics Monitoring | Yes |
| Hot Swappable | Yes |
