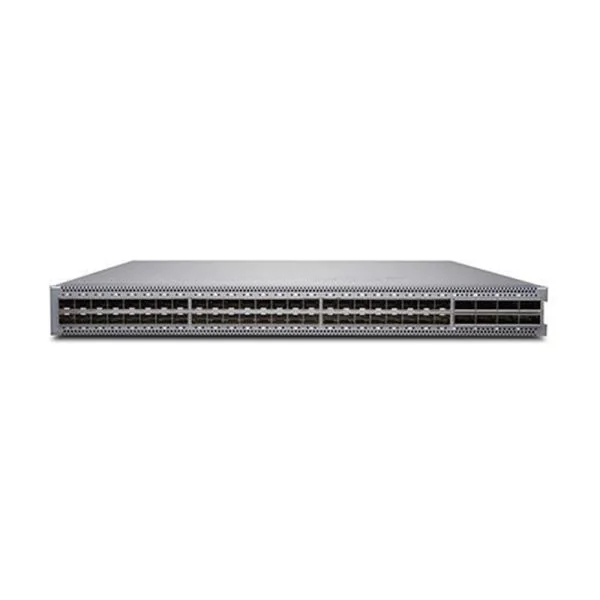

Native 25GbE with 100GbE uplink ports on the QFX5120- 48Y, combined with 32 ports of 100GbE on the QFX5120- 32C, make the QFX5120 family ideal for leaf-and-spine network deployments.
Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the high-performance HKShanhai Group Limited Networks QFX5120 Ethernet Switch provides the ideal foundation for dynamic data centers. Native 25GbE fiber ports on the QFX5120-48Y and 10GbE copper ports on the QFX5120-48T satisfy the growing demand for server access speeds, while high-density fixed-configuration 100GbE ports on the QFX5120-32C satisfy the need for compact, lower power devices in the spine. The QFX5120 is packed with software features that support traditional fabric designs with multichassis link aggregation (MC-LAG) or evolving SDN architectures with Ethernet VPN (EVPN)/Virtual Extensible LAN (VXLAN) on IP fabric underlays.
Quick Spec
Table 1 shows the quick spec.
| Model | QFX5120-48Y-AFI |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 2 Tbps | Switching capacity: 1.31 Bpps |
| Capacity | Virtual interfaces (VLANs): 4093 | VLAN Spanning Tree Protocol instances: 509 | Multiple Spanning Tree Protocol instances: 64 | ARP entries: 64000 | Link aggregation groups: 80 | Maximum member ports per LAG: 64 | IPv4 prefixes (Unicast): 351000 | IPv4 hosts: 208000 | IPv4 routes (Multicast): 104000 | ECMP paths: 64 | IPv6 prefixes (Unicast): 168000 | IPv6 hosts: 104000 | IPv6 routes (Multicast): 52000 | Mirroring destination ports per switch: 4 | Maximum number of mirroring sessions: 4 | Mirroring destination VLANs per switch: 4 | Queues per port: 10 |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | ARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), VLAN Spanning Tree Protocol (VSTP), built-in DIP switch, static routing, Class of Service (CoS), sFlow v5, Multicast Source Discovery Protocol (MSDP), multihoming, cut-through, IGMP filtering, Uplink Failure Detection (UFD), Storm Control, Weighted Tail Drop (WTD), Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), TCP/UDP port setting, Python runtime, Private VLAN, Zero-touch provisioning (ZTP), 4+1 redundant fans, MAC based VLAN, Routed VLAN Interface (RVI), port-based VLAN, Junos XML management protocol, VLAN trunking, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), remarking of bridged packets, static label-switched paths (LSPs), RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP tunneling (LDP over RSVP), MPLS LSR support, image rollback, beacon LED, traffic mirroring |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 16 GB |
| Flash Memory | 64 GB |
| Interfaces | 48 x 1/10/25Gbit LAN SFP28 | 8 x 100Gbit/40Gbit LAN QSFP28 | 1 x USB 2.0 | 1 x management (RS-232) | 2 x management RJ-45 |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 260 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | ICES-003, RoHS, FCC CFR47 Part 15, WEEE, RoHS, BSMI CNS 13438, REACH, EN 300 386 V1.6.1, EN 55024:2010, KN32, KN35, EN 55032:2012, IEC/EN 61000, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015, EN 300 386 V2.1.1, KN 61000, EMC-221, OCT-16, IEC 62368-1: 2014 Second Edition |
Get More Information
Please feel free to check the QFX5120-48Y-AFI datasheet below.
Do you have any question about the QFX5120-48Y-AFI price
Contact us now viaLive Chatorsales@router-switch.com.
HKShanhai Group Limited QFX5120-48Y-AFI Specification
| QFX5120-48Y-AFIÂ Specification | |
| Model | QFX5120-48Y-AFI |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 2 Tbps ¦ Switching capacity: 1.31 Bpps |
| Capacity | Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 509 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ Link aggregation groups: 80 ¦ Maximum member ports per LAG: 64 ¦ IPv4 prefixes (Unicast): 351000 ¦ IPv4 hosts: 208000 ¦ IPv4 routes (Multicast): 104000 ¦ ECMP paths: 64 ¦ IPv6 prefixes (Unicast): 168000 ¦ IPv6 hosts: 104000 ¦ IPv6 routes (Multicast): 52000 ¦ Mirroring destination ports per switch: 4 ¦ Maximum number of mirroring sessions: 4 ¦ Mirroring destination VLANs per switch: 4 ¦ Queues per port: 10 |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | ARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), VLAN Spanning Tree Protocol (VSTP), built-in DIP switch, static routing, Class of Service (CoS), sFlow v5, Multicast Source Discovery Protocol (MSDP), multihoming, cut-through, IGMP filtering, Uplink Failure Detection (UFD), Storm Control, Weighted Tail Drop (WTD), Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), TCP/UDP port setting, Python runtime, Private VLAN, Zero-touch provisioning (ZTP), 4+1 redundant fans, MAC based VLAN, Routed VLAN Interface (RVI), port-based VLAN, Junos XML management protocol, VLAN trunking, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), remarking of bridged packets, static label-switched paths (LSPs), RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP tunneling (LDP over RSVP), MPLS LSR support, image rollback, beacon LED, traffic mirroring |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 16 GB |
| Flash Memory | 64 GB |
| Interfaces | 48 x 1/10/25Gbit LAN SFP28 ¦ 8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x USB 2.0 ¦ 1 x management (RS-232) ¦ 2 x management RJ-45 |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 260 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | ICES-003, RoHS, FCC CFR47 Part 15, WEEE, RoHS, BSMI CNS 13438, REACH, EN 300 386 V1.6.1, EN 55024:2010, KN32, KN35, EN 55032:2012, IEC/EN 61000, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015, EN 300 386 V2.1.1, KN 61000, EMC-221, OCT-16, IEC 62368-1: 2014 Second Edition |
