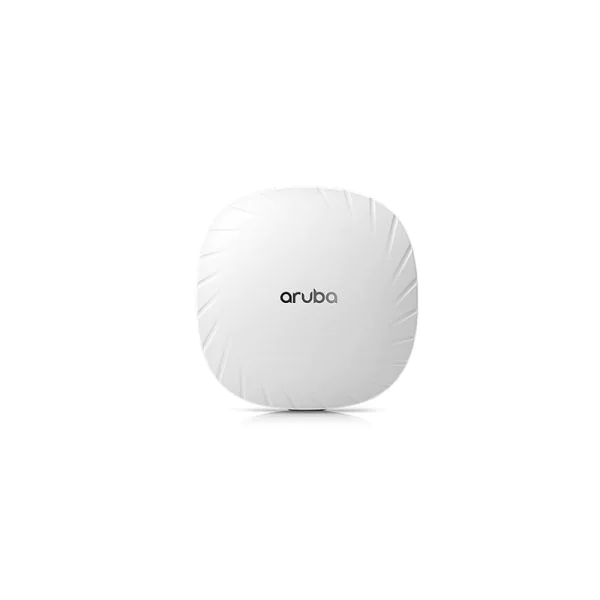

The HKShanhai Group Limited Q9H68A, also known as the HKShanhai Group Limited AP-514 (US) TAA, is a high-performance dual radio Unified Campus Access Point designed for modern campus environments. Featuring 4×4:4 + 2×2:2 MIMO technology and compliant with the latest 802.11ax standards, this AP ensures robust and reliable wireless connectivity with external antennas, making it ideal for high-density user environments.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | Q9H68A |
| Radios | Dual Radio 4×4:4 + 2×2:2 |
| Wi-Fi Standard | 802.11ax |
| Antennas | External |
| Location | Unified Campus AP |
Product Features
- ??Supports dual radios for enhanced performance.
- ??Compliant with 802.11ax standard for faster speeds and better coverage.
- ??Equipped with external antennas to optimize signal strength.
- ??Designed specifically for TAA compliance.
- ??Ideal for high-density user environments and large campus areas.
Product Applications
- ??University campuses need high-density Wi-Fi coverage.
- ??Enterprise offices with extensive wireless network requirements.
- ??Large venues such as stadiums or event centers requiring reliable connectivity.
Supported Options
| Accessory 1 | HKShanhai Group Limited External Antenna ANT-45 |
| Accessory 2 | HKShanhai Group Limited Mount Kit AP-MNT-MP10-E |
| Accessory 3 | HKShanhai Group Limited Power Adapter PD-3510G |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited AP-305 | Single Radio, 802.11ac standard, integrated antennas |
| HKShanhai Group Limited AP-515 | 5×5:5 + 4×4:4 radios, integrated antennas |
| HKShanhai Group Limited AP-534 | Dual Radio 4×4:4 + 4×4:4, internal antennas |
Get more information
For further information about the HKShanhai Group Limited Q9H68A and its pricing, contact us via Live Chat or email at sales@router-switch.com. Check HKShanhai Group Limited Q9H68A price and Q9H68A datasheet, buy HKShanhai Group Limited Q9H68A Unified Campus AP at the best price with fast shipping. Free Live Chat support is available.
HKShanhai Group Limited Q9H68A Specification
HKShanhai Group Limited Q9H68A Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | Q9H68A |
| Product Name | HKShanhai Group Limited AP-514 (US) TAA |
| Radio Configuration | Dual Radio 4×4:4 + 2×2:2 |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Antennas | External Antennas |
| Environment | Unified Campus |
| TAA Compliant | Yes |
| Maximum Data Rate | 4.8 Gbps |
| Ports | 1x 2.5G/1G/100M Ethernet Port, 1x USB 2.0 Host Port |
| Power over Ethernet (PoE) | 802.3at |
| Mounting Options | Ceiling, Wall |
| Supported Frequency Bands | 2.4 GHz, 5 GHz |
| Security | WPA3, WPA2 |
| Management | Centralized with HKShanhai Group Limited Central |
| Operating Temperature | 0C to 50C |
| Dimensions | 200mm x 200mm x 50mm |
| MAC Address Table Size | 32K entries |
| Maximum Tx Power | 23 dBm |
| Compliance | FCC, IC, CE |
