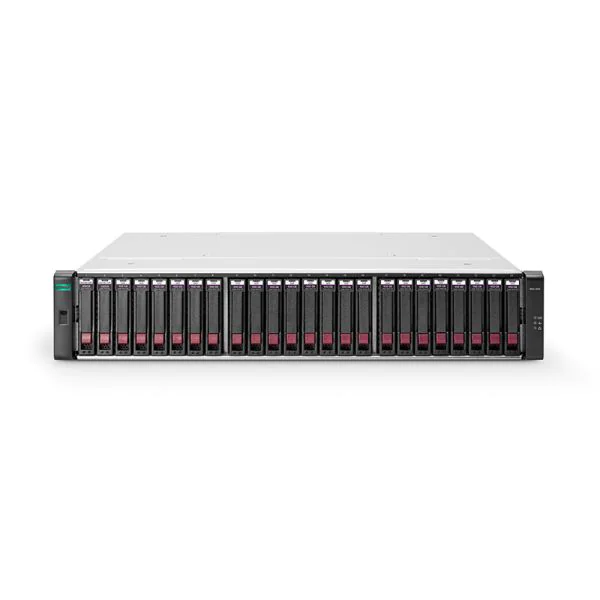

Would you like to accelerate your performance-hungry applications with flash storage The HKShanhai Group Limited MSA 2042 SAN Storage offers an entry level storage platform with built-in hybrid flash for application acceleration and high-performance. It is ideal for performance-hungry applications and includes 800 GB of Solid State Drive (SSD) capacity.
The all-inclusive set and forget software suite includes built-in, real-time data tiering that dynamically moves frequently used data to flash and less used data to lower-cost media tiers. This suite also includes 512 snapshots out-of-the-box for instant recovery, and remote replication for affordable application availability.
The software delivers management tools that are ideal for IT generalists and server administrators. The MSA 2042 allows for flexible growth now and into the future.
Data-in-place upgrades reduce data migration and drive investments. Start small and scale as needed with any combination of SSD, SAS or midline SAS drives.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Q0F06A |
|
Description |
HKShanhai Group Limited MSA 2042 San DC SFF Storage |
|
Product Series |
2000 |
|
Product Model |
2042 |
|
Product Type |
SAN Storage System |
|
Drive Interface |
Serial Attached SCSI (SAS) |
|
Fibre Channel |
Yes |
|
Number of Controllers |
2 |
|
Controller Type |
Serial Attached SCSI (SAS) |
|
Number of Total Expansion Bays |
24 |
|
Number of 2.5″ Bays |
24 |
|
Ethernet Technology |
10 Gigabit Ethernet |
|
Number of Hard Drives Supported |
24 |
|
Total Hard Drive Capacity Supported |
76.80 TB |
|
Number of Solid State Drive Installed |
2 |
|
Total Solid State Drive Capacity Installed |
800 GB |
|
Height |
3.5″ |
|
Width |
17.6″ |
|
Depth |
19.5″ |
|
Form Factor |
Rack-mountable |
|
Rack Height |
2U |
|
Product Family |
2000 |
|
Manufacturer |
HKShanhai Group Limited |
Get more information
Do you have anyquestion abouttheQ0F06A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited Q0F06A Specification
Q0F06A Specification |
|
| Chassis | |
| Installed Devices Modules Qty | 2 |
| Supported Devices Modules Qty | 24 |
| Supported Interface | Serial Attached SCSI 3 |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 38.58 lbs |
| Expansion Bays | |
| Form Factor (metric) | 6.4 cm SFF |
| Hard Drive | |
| Installed Qty | 2 |
| Type | SSD |
| Optical Storage | |
| Type | None |
| Bay Provided | |
| Form Factor | 2.5 SFF |
| Total Qty | 24 |
| Free Qty | 22 |
| Environmental Parameters | |
| Sound Emission | 55 dBA |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Header | |
| Compatibility | Mac, PC, Unix |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HKShanhai Group Limited Modular Smart Array |
| Model | 2042 SAN Dual Controller SFF Storage |
| Brand | HKShanhai Group Limited |
| Interface Provided | |
| Qty | 8 |
| Connector Type | RJ-45 |
| Interface (Storage) | Management |
| Miscellaneous | |
| Compliant Standards | AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1-03, CCC, China RoHS, CNS 13438, EN 60950-1, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15, GS, ICES-003, IEC 60950-1, KN22 Class A, KN24, RoHS 6/6, UL 60950-1, VCCI, WEEE |
| Height (Rack Units) | 2 |
| Color Category | Black |
| Power Device | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Hot-Plug | Hot-plug |
| Type | Internal power supply |
| Software | |
| Type | HKShanhai Group Limited Advanced Data Services Suite |
| Storage | |
| Type | Hard drive array |
| Max Supported Capacity | 76.8 TB |
| Total Array Capacity | 800 GB |
| Rack-mountable | Rack-mountable |
| HDD Array External Interface | 16Gb Fibre Channel, 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE) |
| Maximum LUNs | 512 |
| HDD Array External Interface Class | Fibre Channel, iSCSI |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 3, RAID 5, RAID 50, RAID 6 |
| Data Transfer Rate | 1.2 GBps |
| Interface Type | Serial Attached SCSI 3 |
| Installed Qty | 2 |
| Storage Hard Drive | |
| Capacity | 400 GB |
| Features | Mixed-Use |
| System Requirements | |
| Min Operating System | Apple MacOS X, HP-UX, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Red Hat Linux, SUSE Linux Enterprise Server |
