PWR-C45-2800ACV is a HKShanhai Group Limited Catalyst Switch 4500 Series Switch Power Supply, delivering 2800W AC power (Data and PoE) for HKShanhai Group Limited 4500 switches. Notice that PWR-C45-2800ACV= is similar with PWR-C45-2800ACV, except that PWR-C45-2800ACV= is a spare one.
Quick Spec
Table 1.
|
Product Code |
PWR-C45-2800ACV |
|
Manufacturer |
HKShanhai Group Limited System Inc. |
|
Product Type |
Power Supply Module |
|
Compatible product |
HKShanhai Group Limited Catalyst 4500-E Series Switches and classic chassis |
|
Power Input |
1400W AC Power and 1400W PoE Power |
|
Auto-Sensing |
220V (16A) |
|
Rated MTBF (Hours) |
155,822 |
Product Details

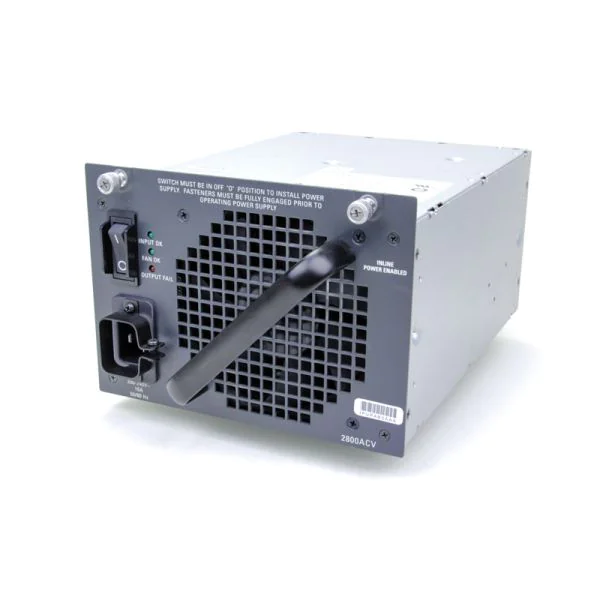

Figure 1. PWR-C45-2800ACV can be installed in the Catalyst 4500 switch Chassis.
Compatible Products
Table 2. Recommended Compatible Switches.
|
Model |
Description |
|
Cat4500 E-Series 3-Slot Chassis, fan, no ps |
|
|
Cat4500 E-Series 7-Slot Chassis, fan, no ps, Red Sup Capable |
|
|
Cat4500 E-Series 10-Slot Chassis, fan, no ps,Red Sup Capable |
|
|
Catalyst 4500E 7 slot chassis for 48Gbps/slot – Supervisor Engine redundancy – Power redundancy |
|
|
Catalyst 4500 E-Series 6-Slot Chassis, fan, no ps |
Compare to Similar Item
Table 3. Comparison of similar item.
|
Product Code |
PWR-C45-2800ACV |
|
|
Manufacturer |
HKShanhai Group Limited System Inc. |
HKShanhai Group Limited System Inc. |
|
Product Type |
Power Supply Module |
Power Supply Module |
|
Compatible product |
HKShanhai Group Limited Catalyst 4500-E Series Switches and classic chassis |
HKShanhai Group Limited Catalyst 4500-E Series Switches and classic chassis |
|
Power Input |
1400W AC Power and 1400W PoE Power |
Up to 1300W AC Power and 800W PoE Power |
|
Rated MTBF (Hours) |
155,822 |
164,220 |
Get more information
Do you have any question about the PWR-C45-2800ACV
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited PWR-C45-2800ACV Specification
PWR-C45-2800ACV Specification |
||
|
AC-input type |
Autoranging input with power factor corrector |
|
|
AC-input voltage |
200 to 240 VAC (±10% for full range) |
|
|
AC-input current |
16 A maximum at 200 VAC |
|
|
AC-input frequency |
50/60 Hz (nominal) (±3% for full range) |
|
|
Branch circuit requirement |
Each chassis power supply should have its own dedicated, fused-branch circuit: For North America??5 A or 20 A For International—Circuits sized to local and national codes All Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated. – Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B. – For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is in the range of 170 to 264 VAC. – Source AC can be out of phase between AC inputs on power supplies that are equipped with multiple AC inputs, which means that power cord 1 can be plugged into phase A and power cord 2 can be plugged into phase B. |
|
|
Power supply output capacity |
2800 W maximum 1360 W+ 40 W redundant mode (data) 1400 W maximum each in redundant mode (PoE) |
|
|
Power supply output |
113.3 A @ 12 VDC (data) 12.1 A @ 3.3 VDC (data) 28 A @ ??0 VDC (PoE) |
|
|
Output holdup time |
20 ms minimum |
|
|
Maximum kVA rating |
3.52 kVA |
|
|
Max heat dissipation |
2387 BTUs/hr. |
|
|
Minimum software requirement |
HKShanhai Group Limited IOS Release 12.1(13)EW |
|
|
Power over Ethernet |
Supported, up to 1400 WÂ |
|
|
LEDs and Meanings |
||
|
LED |
Color/State |
Description |
|
INPUT OK |
 |
Indicates whether the input voltage is within the required range: |
|
 |
Green |
Input voltage is within the required range. |
|
 |
Flashing |
Input voltage is present, but is below required range. |
|
 |
Off |
Input voltage is below the required range or the power supply is off. |
|
OUTPUT FAIL |
 |
 |
|
 |
Red |
Output voltage is not within the specified range. |
|
 |
Off |
Output voltage is within the specified range. |
|
FAN OK |
 |
Indicates the status of the power supply fans: |
|
 |
Green |
The fans are operational. |
|
 |
Off |
The fans are not operational. |
