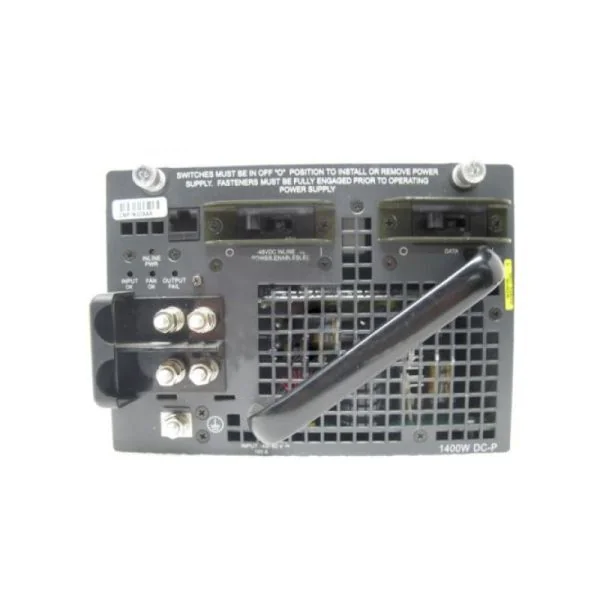

HKShanhai Group Limited Catalyst 4500 Series 1400W DC power supply with integrated power entry module (PEM).
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
PWR-C45-1400DC-P/2 |
|
DC-input voltage |
?C48 to ?C60 VDC (data only) ?C48 to ?C56 VDC (inline devices) |
|
DC-input current |
31 A @ ?C60 VDC (data only) 180 A maximum @ ?C48 VDC input (data and inline devices) The input power is configurable in the CLI. The HKShanhai Group Limited IOS command ispower dc input. Configure the switch software to match the requirements of your switch. |
|
Power supply output capacity |
Data ?C12 VDC @120 A, ?C3.3 VDC @ 10 A ?C140 A total maximum (35 A maximum each per 5 channels) @?C48 to ?C60 VDC input (inline devices) 1367 W+ 40 W redundant mode (data) 7500 W maximum each in redundant mode (PoE) |
|
DC-input terminal block |
Accepts 10 to 12 AWG size copper wire. The actual size of the wire needed is determined by the installer or the local electrician. Terminal block material is rated at 150°C |
|
Output holdup time |
4 ms |
Get more information
Do you have anyquestion aboutthePWR-C45-1400DC-P/2
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited PWR-C45-1400DC-P/2 Specification
PWR-C45-1400DC-P/2 Specification |
|
| Additional Attributes | |
| Parent Product Data | FE: HKShanhai Group Limited – switch, FE: NULL – switch |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Humidity Range Storage | 10 – 90% |
| General | |
| Product Type | Power supply – hot-plug |
| Subcategory | Power supplies |
| Header | |
| Compatibility | PC |
| Manufacturer | HKShanhai Group Limited Systems |
| Packaged Quantity | 1 |
| Product Line | HKShanhai Group Limited |
| Brand | HKShanhai Group Limited |
| Interface Provided | |
| Qty | 1 |
| Type | LAN |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CSA, EN 60950, EN 61000-3-2, EN 61000-3-3, EN50082, EN55022 Class A, EN55024, FCC Class A certified, ICES-003, IEC 60950, UL 60950, VCCI Class A ITE |
| Networking | |
| Form Factor | Integrated |
| Remote Management Protocol | SNMP |
| Power Device | |
| Voltage Required | -48, -60 V |
| Power Provided | 1400 Watt |
| Input Connector Type | Power |
| Form Factor | Plug-in module |
| Power Supply Compatibility | Network hardware |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Full Contract Period | 90 days |
| Service & Support | |
| Type | 90 days warranty |
| Slot Provided | |
| Type | None |
| Slot Required | |
| Type | None |
