The HKShanhai Group Limited ® High-Density Packet Voice Digital Signal Processor (DSP) Module (PVDM2) enables HKShanhai Group Limited Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in HKShanhai Group Limited IP Communications solutions. HKShanhai Group Limited Integrated Services Routers provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment (such as private branch exchanges [PBXs], key systems, analog telephones, and fax machines) to a toll-free data network and eventually migrating customers to HKShanhai Group Limited Unified Communication Architecture for Voice, Video and Integrated Data IP telephony solutions.
The high-density packet voice DSP modules are available in five versions: PVDM2-8, PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64.
Quick Specs

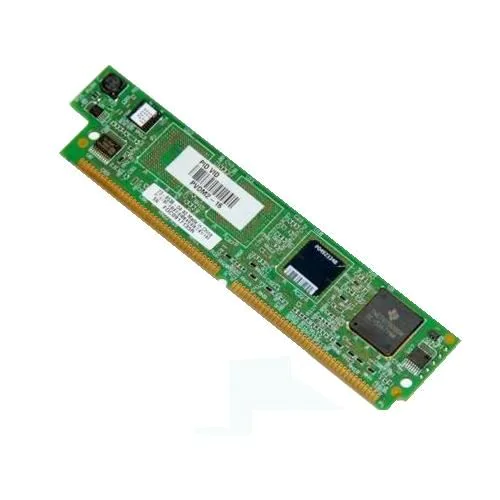

Figure 1 shows the appearance of PVDM2-16.
Table 1 shows the Quick Specs.
|
Product Code |
PVDM2-16 |
|
Description |
16-channel packet fax and voice DSP module |
|
Maximum Number of Channels in G.711 |
16 |
|
Maximum Number of Channels in High-Complexity Codecs |
6 |
|
Maximum Number of Channels in Medium-Complexity Codecs |
8 |
Product Details
Figure 2 shows PVDM2 SIMM Slots on the HKShanhai Group Limited High-Density Digital Voice Network Modules.
Â
Compare to Similar Items
Table 2 shows the comparison of PVDM2-8, PVDM2-32, PVDM2-64, PVDM2-16 and PVDM2-48.
|
Product Code |
PVDM2-16 |
||||
|
Description |
8-channel packet fax and voice DSP module |
16-channel packet fax and voice DSP module |
32-channel packet fax and voice DSP module |
64-channel packet fax and voice DSP module |
48-channel packet fax and voice DSP module |
|
Maximum Number of Channels in G.711 |
8 |
16 |
32 |
64 |
48 |
|
Maximum Number of Channels in High-Complexity Codecs |
4 |
6 |
12 |
24 |
18 |
|
Maximum Number of Channels in Medium-Complexity Codecs |
4 |
8 |
16 |
32 |
24 |
Get more information
Do you have any question about the PVDM2-16
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited PVDM2-16 Specification
PVDM2 Modules Specifications |
|
|
Components |
|
|
DSP |
??Texas Instruments TNETV2510GGW for PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64 ??Texas Instruments TNETV2505GGW for PVDM2-8 |
|
DSP CPU Clock |
??200 MHz for TNETV2510GGW ??175MHz for TNETV2505GGW |
|
DSP External Memory |
128-megabit synchronous dynamic RAM for each DSP (for both TI 2510 and TI 2505) |
|
Interface |
80-pin SIMM interface |
|
Features |
|
|
Echo Cancellation |
Software echo cancellation compliant with ITU-I G.168, with 64-ms tail coverage |
|
Approvals and Compliance |
|
|
Safety |
??IEC 60950 (worldwide) and AS/NZS 3260 (Australia and New Zealand) ??CAN/CSA-C22.2 No. 60950 (Canada) and GB4943-95 (People’s Republic of China) ??EN60950 (CENELEC; includes EU and EFTA) ??SS337 (Singapore; PSB approval), NOM-019-SCFI-1998 (Mexico), and UL 60950 3rd edition (United States) |
|
Homologation |
Platform dependent |
|
Mean Time between Failure (MTBF) |
System dependent |
|
EMC |
|
|
CISPR22, Class B |
Emissions |
|
EN55022, Class B |
Emissions |
|
CFR47, Part 15, Subpart B, Class B |
Emissions |
|
EN61000-3-2 |
Harmonics |
|
EN61000-3-3 |
Flicker |
|
CISPR24 |
Immunity |
|
EN 55024 |
Immunity |
|
EN50082-1 |
Immunity |
|
EN61000-3-2 |
Harmonics |
|
EN 61000-3-3 |
Flicker |
|
EN 61000-4-2 |
Electrostatic discharge (ESD) |
|
EN 61000-4-3 |
Radio frequency (RF) fields |
|
EN 61000-4-4 |
EFT |
|
EN 61000-4-5 |
Surge |
|
EN 61000-4-6 |
Conducted RF |
|
EN 6100-4-8 |
Power-frequency magnetic fields |
|
EN 61000-4-11 |
Voltage dips, sags, and interruptions |
