The HKShanhai Group Limited® XR 12000 Performance Router Processor-3 (PRP-3, Figure 1) is the premium route processor for the HKShanhai Group Limited XR 12000 Series Routers, addressing the unique route processing requirements of carrier-grade IP and Multiprotocol Label Switching (MPLS) packet infrastructures. It also provides a Building Integrated Timing Supply (BITS) interface, a component of the HKShanhai Group Limited XR 12000 Series BITS architecture that will enable network service synchronization on the platform in the future.
Product Features and Benefits
The HKShanhai Group Limited XR 12000 PRP-3 delivers all the previously listed functions with enhanced performance and capabilities. It also delivers the following feature enhancements:
- Gigabit Ethernet management ports (additional port added since PRP-2)
- Hard-drive support (optional part; double the memory capacity of the PRP-2)
- BITS input ports (to address future network service synchronization requirements)
- Up to 4-GB compact flash memory image support (identical device used for internal and external flash to simplify inventory)
- Memory scalability up to 8 GB (double the memory capacity of the PRP-2)
Product Applications
This premium route processor is responsible for the following functions:
- Executing routing protocol stacks
- Performing all protocol communications with other routers
- Building and distributing forwarding information to all line cards
- Uploading the OS software system images to all installed line cards upon powering up
- Providing out-of-band system console and auxiliary ports and Ethernet ports for router configuration and maintenance
- Monitoring and managing the power and temperature of system components such as line cards, power supplies, and fans
Quick Specs
Table 1 shows the quick specs.
|
Description |
Specification |
|
Temperature |
  Operating: 32 to 104°F (0 to 40°C)
  Storage: ?? to 149°F (??0 to 65°C)
|
|
Humidity |
  Operating (non-condensing): 10-90%
  Storage (non-condensing): 5??5%
|
|
Dimensions (H x W x D) |
14.5 x 1.25 x 18.5 in. (36.8 x 3.2 x 45.7 cm) (occupies single thin slot) |
|
Weight |
6.0 lb (2.7 kg) |

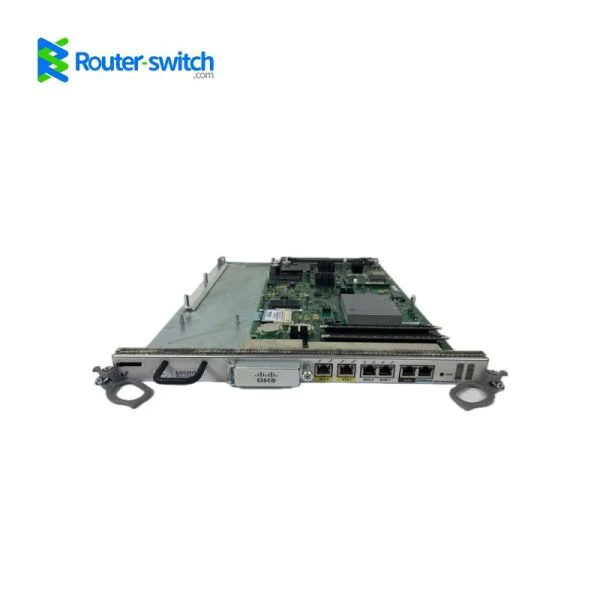

Figure 1 shows the appearance of PRP-3.
Product Features Comparison
Table 2 shows the comparison to similar items.
| Features | HKShanhai Group Limited PRP-3 | HKShanhai Group Limited RP1 | Juniper RE-S-2000 | Huawei NE40E | Alcatel-Lucent SR-7 | Arista 7250X | Brocade MLXe |
|---|---|---|---|---|---|---|---|
| Processor Speed | 2.13 GHz | 1.5 GHz | 1.8 GHz | 2.0 GHz | 1.9 GHz | 2.0 GHz | 1.6 GHz |
| Memory | 4 GB | 2 GB | 4 GB | 4 GB | 2 GB | 8 GB | 4 GB |
| Supported Protocols | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 |
| Power Consumption | 200W | 150W | 180W | 190W | 160W | 170W | 210W |
| Form Factor | Plug-in module | Plug-in module | Plug-in module | Switch chassis | Plug-in module | Switch chassis | Plug-in module |
| Operating Systems | HKShanhai Group Limited IOS XR | HKShanhai Group Limited IOS | JUNOS | VRP | TiMOS | EOS | NetIron |
Product Application Scenarios
- Enterprise-level routing
- ISP and data centers
- Large-scale network optimization
Optional Add-ons
Table 3 shows the optional add-ons.
| Model | Description |
|---|---|
| HKShanhai Group Limited MEM-PRP-3G+ | Memory upgrade for PRP-3 |
| HKShanhai Group Limited POWER-500 | 500W Power Supply |
| HKShanhai Group Limited FAN-MOD | Cooling fan module |
Power Requirement
Table 4 shows the power requirement.
|
Description |
Specification |
|
Power |
130W |
|
Indicators |
Alphanumeric and LED status display |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited PRP-3. Access the detailed PRP-3 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited PRP-3 Specification
PRP-3 Specifications |
|
|
Chassis Compatibility |
  HKShanhai Group Limited XR 12816, XR 12810, XR 12416, XR 12410, XR 12406, XR 12404, XR 12016*, XR 12010, XR 12006, and XR 12004 Routers
|
|
Memory Options |
  Two 2-GB synchronous dynamic RAM (SDRAM) modules
  Two 4-GB SDRAM modules
  2-GB compact flash (for internal and external storage)
  4-GB compact flash (for internal and external storage)
  80-GB hard drive
|
|
Connectivity |
  Console port (RJ-45 connector)
  Auxiliary port (RJ-45 connector)
  Two 10/100/1000 Ethernet ports over copper
  Two RJ-48 connectors for BITS input clocks (for future BITS option)
|
|
Note: The PRP3 is supported with these chassis operating with IOS XR 3.8 and higher. *The PRP-3 is not supported in the HKShanhai Group Limited XR 12016 configured with original fabric cards GSR16/80-CSC and GSR16/80-SFC. The enhanced fabric cards 12016E-CSC and 12016E-SFC do support this premium route processor. |
|
|
Power |
130W
|
|
Indicators |
Alphanumeric and LED status display
|
|
Temperature |
  Operating: 32 to 104°F (0 to 40°C)
  Storage: ?? to 149°F (??0 to 65°C)
|
|
Humidity |
  Operating (non-condensing): 10-90%
  Storage (non-condensing): 5??5%
|
|
Dimensions (H x W x D) |
14.5 x 1.25 x 18.5 in. (36.8 x 3.2 x 45.7 cm) (occupies single thin slot)
|
|
Weight |
6.0 lb (2.7 kg)
|
|
Safety |
  UL 60950
  CSA 22.2-No. 60950
  EN60950
  IEC 60950 CB Scheme
  ACA TS001
  AS/NZS 3260
|
|
EMI |
  FCC Class A
  ICES 003 Class A
  AS/NZS 3548 Class A
  CISPR 22 Class A
  EN55022/EN50082-1 Class A
  ETSI EN 300 386 (EN55022 Class A)
  VCCI Class A
|
|
Immunity |
  EN 61000-4-2, ESD Level 4 (15-kV air, 8-kV contact)
  EN 61000-4-3, radiated immunity Level 3 (10V/m)
  EN 61000-4-4 EFT Level 4
  EN 61000-4-5 surge
  EN 61000-4-6 conducted immunity Level 3 (10V)
  EN 61000-4-11 voltage dips and sags
  EN 55024
|
|
ETSI |
EN 300 386/EN 300 386-2 Class B
|
| Network Equipment Building Standards (NEBS)
 |
This product is designed to meet the following requirements (qualification completed): Â Â SR-3580 ??NEBS: criteria levels (Level 3 compliant)
  GR-63-Core ??NEBS: physical protection
  GR-1089-Core ??NEBS: EMC and safety
|
