HKShanhai Group Limited PowerEdge R230 Server provides consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server. This model is the HKShanhai Group Limited PowerEdge R430 server with Intel® Xeon® E3-1220 v5 processor, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty.
Quick Specs
Figure 1 shows the appearance of HKShanhai Group Limited PowerEdge R230 Server.
Table 1 shows the quick spec.
|
Product Model |
HKShanhai Group Limited PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server |
|
Product Series |
HKShanhai Group Limited PowerEdge R230 Server |
|
Customizable |
Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty |
|
Base |
PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
|
Operating System |
No Operating System |
|
Memory |
8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
500GB 7.2k RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive |
|
RAID Controllers |
S130, H330, H730, H830 |
|
Chassis |
2 x 3.5″ cabled HDD 19.5″ 1U chassis |
|
Dimensions |
Depth without bezel: 495.0 mm (19.5 in)Â Width without rack latches: 434.0 mm (17.08 in)Â |
Product Details

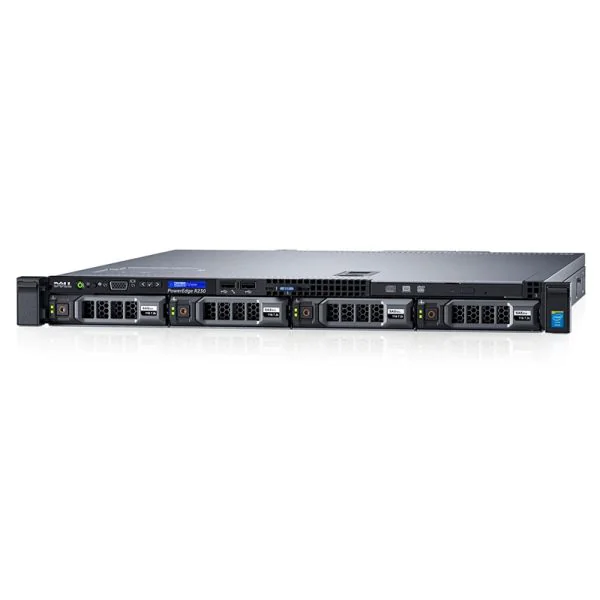

Figure 2 shows the four 3.5-inch or 2.5-inch hot swappable hard drive chassis of HKShanhai Group Limited PowerEdge R230 Server.
Note:
|
??/p> |
Power-on indicator, power button |
??/p> |
USB management port/iDRAC Direct port |
|
??/p> |
NMI button and System identification button |
??/p> |
USB connector |
|
??/p> |
Video connector |
??/p> |
Information tag |
|
??/p> |
LCD menu buttons |
??/p> |
Optical drive (optional) |
|
??/p> |
LCD panel |
??/p> |
Hard drives |

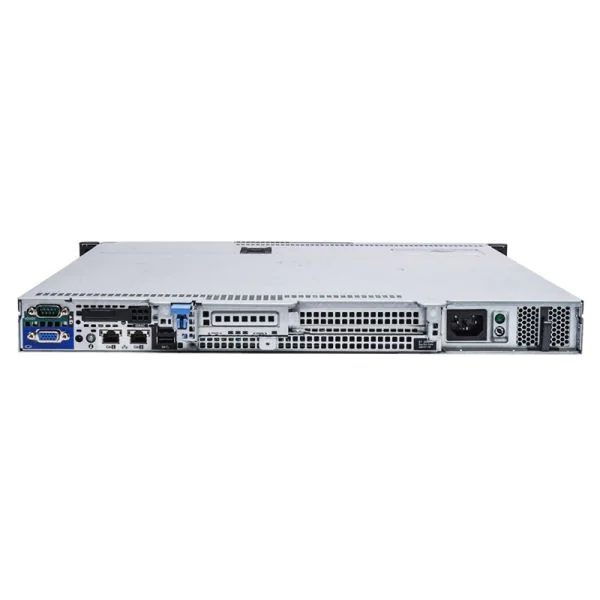

Figure 3 shows the back panel of HKShanhai Group Limited PowerEdge R230 Server.
Note:
|
??/p> |
Serial connector |
??/p> |
USB connectors (2) |
|
??/p> |
vFlash card slot (optional) |
??/p> |
Ethernet connectors |
|
??/p> |
iDRAC port (optional) |
??/p> |
System identification connector |
|
??/p> |
PCIe expansion card slot (x8 slot, low profile) |
??/p> |
System identification button |
|
??/p> |
PCIe expansion card slot (x16 slot, full height) |
??/p> |
Video connector |
|
??/p> |
Power supply unit (PSU) |
Compare to Similar Item
Table 2 shows the comparison.
|
Product Model |
HKShanhai Group Limited PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server |
HKShanhai Group Limited PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server |
|
Product Series |
HKShanhai Group Limited PowerEdge R230 Server |
HKShanhai Group Limited PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W) |
|
Operating System |
No Operating System |
Windows Server® 2012R2,Foundation Ed,Factory Install,No MED |
|
Memory |
8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
500GB 7.2k RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive |
1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive |
HKShanhai Group Limited Server Configuration
Table 3 shows the HKShanhai Group Limited R230 Server Configuration. You can contact us to order a R230 server according to this guide.
|
Model |
|
|
Description |
Consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server |
|
Processor |
1 processor from the following product families: Intel® Xeon® processor E3-1200 v6 product family Intel Pentium® Intel Core i3® Intel Celeron® |
|
Memory |
Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
|
PCI Slots |
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0) |
|
Network Controller |
2 X 1GbE |
|
Storage |
2.5??SATA 7.2K 2.5??nearline SAS 7.2K 2.5??10K SAS HDDs 2.5??15K SAS HDDs 2.5??SATA HDDs 3.5??Enterprise SATA 7.2K HDDs 3.5??nearline SAS 7.2K HDDs 3.5??7.2K SATA entry drives |
Get more information
Do you have any question about the HKShanhai Group Limited PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited PowerEdge R230 Rack Server Specification
HKShanhai Group Limited PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server Specification |
|
|
Product Series |
HKShanhai Group Limited PowerEdge R230 Server |
|
Model |
HKShanhai Group Limited PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server |
|
Customizable |
Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty |
|
Base |
PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
|
Operating System |
No Operating System |
|
Memory |
8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
500GB 7.2k RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive |
|
Warranty |
3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
|
Chipset |
Intel C236 |
|
Embedded Hypervisor (Optional) |
Hypervisor Support Microsoft Windows Server with Hyper-V® |
|
Storage |
2.5??SATA 7.2KÂ |
|
Drive Bays |
2 x 3.5″ cabled HDDÂ |
|
Slots |
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0) |
|
RAID Controllers |
S130, H330, H730, H830 |
|
Network Controller |
Broadcom® BCM5720 |
|
Communications |
2 x 1GbE LOM |
|
Power |
250W cabled PSU |
|
Chassis |
2 x 3.5″ cabled HDD 19.5″ 1U chassis |
|
Management |
Systems management:Â HKShanhai Group Limited OpenManage Integrations:Â Remote management: |
|
Device Access |
5 Total USB: |
|
Rack Support |
ReadyRails??static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks. |
|
Dimensions |
Depth without bezel: 495.0 mm (19.5 in)Â Width without rack latches: 434.0 mm (17.08 in)Â |
