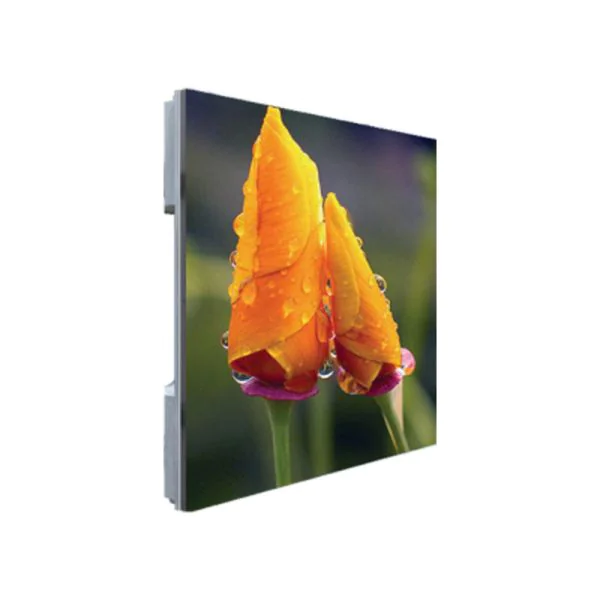

The Dahua PHSA2.5-EH Indoor Fine Pixel LED display is a top-notch product designed for professional environments requiring high-resolution visual output. This advanced LED display offers exceptional picture quality, high brightness, and seamless integration capabilities, making it an ideal choice for a variety of indoor applications.
Quick Spec
| Brand | Dahua |
| Model | PHSA2.5-EH |
| Pixel Pitch | 2.5 mm |
| Brightness | 1000 nits |
| Refresh Rate | 3840 Hz |
Product Features
- Ultra-fine pixel pitch for sharp image quality
- High brightness of 1000 nits ensures clear visibility
- 3840 Hz refresh rate for smooth video playback
- Seamless bezel for a continuous display surface
- Energy-efficient design reduces operational costs
Product Applications
- Corporate conference rooms for professional presentations
- Retail spaces for dynamic promotional displays
- Public venues such as airports and train stations for information dissemination
Supported Options
| Accessory | Model |
| Wall Mount | WM-LED-25 |
| Control System | CS-LED-100 |
| Power Supply Unit | PSU-LED-8 |
Compare to Similar Items
| Model | Difference |
| PHSA3.0-EH | 3.0 mm pixel pitch, 800 nits brightness, 1920 Hz refresh rate |
| PHSA1.8-EH | 1.8 mm pixel pitch, 1200 nits brightness, 3840 Hz refresh rate |
| PHSA2.5-OH | Outdoor model, 2.5 mm pixel pitch, 2000 nits brightness, 3840 Hz refresh rate |
Get more information
For further information about the Dahua PHSA2.5-EH, including pricing and availability, please contact our team via Live Chat or email us at sales@router-switch.com.
Dahua PHSA2.5-EH Specification
PHSA2.5-EH Specifications |
|
| Brand | Dahua |
| Product Name | PHSA2.5-EH |
| Screen Type | LED |
| Application | Indoor |
| Pixel Pitch | 2.5mm |
| Brightness | 800 cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160(Horizontal), 140(Vertical) |
| Refresh Rate | 3840Hz |
| Module Resolution | 128 (W) 64 (H) |
| Module Size | 320mm 160mm |
| Number of Modules | 8×4 |
| Cabinet Resolution | 256 (W) 256 (H) |
| Cabinet Size | 640mm 640mm |
| Cabinet Material | Aluminum |
| Power Supply | AC 110V/240V, 50-60Hz |
| Max Power Consumption | 500W/m2 |
| Average Power Consumption | 170W/m2 |
| Ingress Protection | IP30 |
| Working Temperature | -20C to +50C |
| Operating Humidity | 10% to 90% RH |
