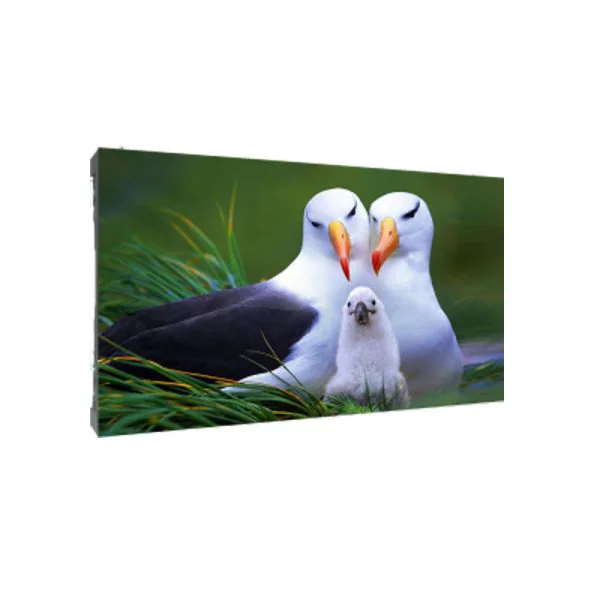

The Dahua PHSA1.9-SH is an advanced indoor fine pixel LED display designed to deliver superior visual performance. Featuring cutting-edge technology, this product provides high definition, precise color uniformity, and stunning brightness, making it ideal for various professional applications that require high-quality indoor display solutions.
Quick Spec
| Resolution | HD |
| Pixel Pitch | 1.9mm |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160 |
Product Features
- Ultra-high resolution for sharp and clear images.
- Wide color gamut for vibrant and accurate color representation.
- Enhanced contrast ratio ensures deeper blacks and brighter whites.
- Low power consumption for energy efficiency.
- Wide viewing angle for consistent image quality from different perspectives.
Product Applications
- Corporate environments for conference rooms and digital signage.
- Control rooms requiring detailed and accurate display panels.
- Indoor advertisement spaces in malls and retail stores.
Supported Options
| Mounting Bracket | MB-DAHUA-1 |
| External Control System | EC-DAHUA-2 |
| Power Supply Unit | PSU-DAHUA-3 |
Compare to Similar Items
| Model | Key Differences |
|---|---|
| PHSA2.5-SH | Higher pixel pitch of 2.5mm, lower brightness at 400 cd/m2 |
| PHSA1.5-SH | Lower pixel pitch of 1.5mm, higher brightness at 600 cd/m2 |
| PHSA2.0-SH | Pixel pitch of 2.0mm, same brightness at 500 cd/m2 |
Get more information
Contact us through Live Chat or email us at sales@router-switch.com for further information about the Dahua PHSA1.9-SH and its pricing details.
Dahua PHSA1.9-SH Specification
PHSA1.9-SH Specifications |
|
| Brand | Dahua |
| Model Name | PHSA1.9-SH |
| Type | Indoor Fine Pixel LED |
| Pixel Pitch | 1.9 mm |
| Resolution | Full HD |
| Brightness | 600 cd/m2 |
| Refresh Rate | 3840 Hz |
| Viewing Angle | 160horizontal, 140vertical |
| Contrast Ratio | 5000:1 |
| Power Consumption (Max) | 480 W/m2 |
| Power Consumption (Avg) | 160 W/m2 |
| Input Voltage | AC 100V?C240V 50/60 Hz |
| Frame Rate | 60 Hz |
| Life Span | 100,000 hours |
| Operating Temperature | -10C to +45C |
| Operating Humidity | 10% to 90% RH |
| Cabinet Dimension | 480 (W) x 480 (H) x 65 (D) mm |
| Cabinet Material | Die-casting aluminum |
| Signal Input | DVI, HDMI, SDI |
| Control Distance | Ethernet cable: 100m, fiber cable: 5km |
| Ingress Protection | IP30 (front and rear) |
