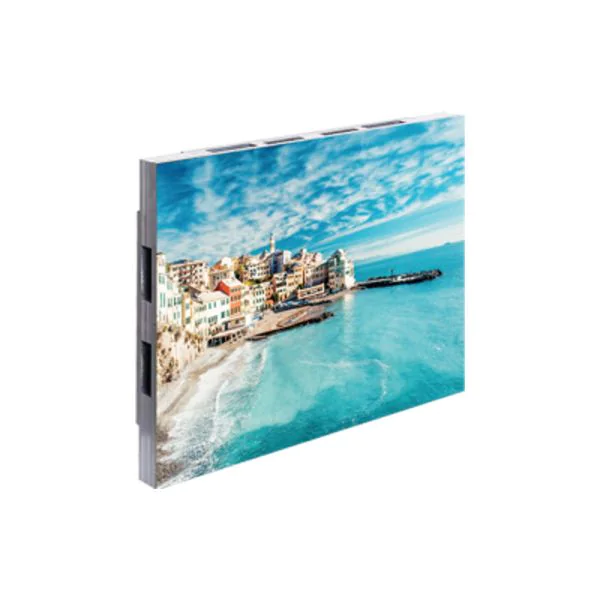

The Dahua PHSA1.4-MH is an indoor fine pixel LED display that offers unmatched performance with superior image quality. This Dahua indoor display utilizes advanced pixel technology, ensuring stunning visual clarity that enhances any indoor environment. Ideal for corporate events, retail promotions, and control rooms, the PHSA1.4-MH stands out with high reliability and versatile functionality.
Quick Spec
| Pixel Pitch | 1.4 mm |
| Brightness | 600 nits |
| Contrast Ratio | 5000:1 |
| Refresh Rate | 3840 Hz |
| Viewing Angle | 160° horizontal, 140° vertical |
Product Features
- Ultra-fine 1.4 mm pixel pitch for high-resolution imagery.
- Exceptional brightness of 600 nits for vivid displays.
- High contrast ratio of 5000:1 for deeper blacks and brighter whites.
- Stable refresh rate of 3840 Hz for smooth motion visuals.
- Wide viewing angles ensuring clear visibility from multiple directions.
Product Applications
- Corporate Meeting Rooms: Enhance presentations with crisp and clear visual content.
- Retail Stores: Attract customers with dynamic and engaging advertisements.
- Control Rooms: Facilitate critical operations with clear monitoring displays.
Supported Options
| Wall Mount | WM-100-PHSA |
| Calibration Software | CS-200-DAH |
| Control System | CS-3000-DAH |
Compare to Similar Items
| Model | Differences |
| Dahua PHSA2.5-MH | Pixel pitch of 2.5 mm, suitable for larger displays. |
| Dahua PHSA1.9-MH | Pixel pitch of 1.9 mm, offering a balance between clarity and cost. |
| Dahua PHSO1.4-MH | Outdoor variant with enhanced brightness and weather resistance. |
Get more information
Contact us through Live Chat or email us at sales@router-switch.com for further information about the Dahua PHSA1.4-MH indoor fine pixel LED, including pricing and datasheet. Check ‘Dahua PHSA1.4-MH’ price and ‘PHSA1.4-MH datasheet’, buy ‘Dahua PHSA1.4-MH indoor fine pixel LED’ with the best price and fast shipping. Free Live Chat support is available.
Dahua PHSA1.4-MH Specification
PHSA1.4-MH Specifications |
|
| Brand | Dahua |
| Model | PHSA1.4-MH |
| Product Type | Indoor LED Display |
| Pixel Pitch | 1.4mm |
| Resolution | Full HD |
| Brightness | 600 cd/m2 |
| Refresh Rate | 3840Hz |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Contrast Ratio | 5,000:1 |
| Power Consumption Max | 400W/m2 |
| Power Consumption Avg | 120W/m2 |
| Panel Dimensions | 600mm x 337.5mm |
| Panel Resolution | 428 x 240 pixels |
| Mounting Type | Wall Mount, Hanging |
| Lifespan | >100,000 hours |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| IP Rating | IP30 |
| Color Temperature | 3000K – 9500K (Adjustable) |
| Signal Input | HDMI, DVI, DP |
| Control System | Dahua Venus Control System |
