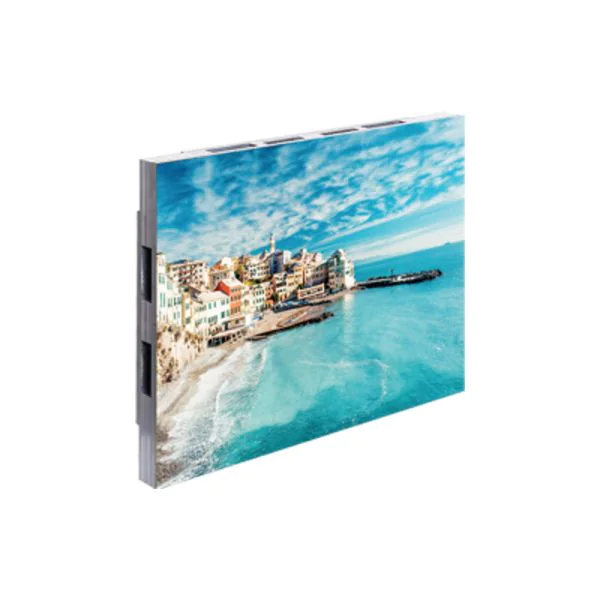

Dahuas PHSA1.2-EH is an advanced indoor fine pixel LED display designed to deliver superior image quality and visual performance. Its fine pixel pitch enables exceptional clarity and detail, making it an ideal choice for applications that require enhanced visual precision and immersive viewing experiences. It is widely used in various professional settings thanks to its robust design and cutting-edge technology.
Quick Spec
| Brand | Dahua |
| Model | PHSA1.2-EH |
| Display Type | Indoor Fine Pixel LED |
| Pixel Pitch | 1.2mm |
| Resolution | Full HD (1920×1080) |
Product Features
- 1.2mm pixel pitch for superior image resolution and detail
- High brightness and contrast ratio for vivid visuals
- Wide viewing angle ensuring visibility from various positions
- Energy efficient design with lower power consumption
- Durable construction for enhanced longevity and reliability
Product Applications
- Corporate boardrooms and meeting rooms for clear and detailed presentations
- Retail environments for dynamic and engaging product displays
- Control rooms and monitoring centers requiring high precision visuals
Supported Options
| Mounting Bracket | MB-PHSA-EH |
| Power Supply | PSU-PHSA-EH |
| Signal Processor | SP-PHSA-EH |
Compare to Similar Items
| Model | Differences |
| PHSA1.5-EH | 1.5mm pixel pitch; Slightly lower resolution |
| PHSA1.8-EH | 1.8mm pixel pitch; Ideal for larger display areas |
| PHSA2.0-EH | 2.0mm pixel pitch; Economical choice with broader visibility range |
Get more information
For further information about the PHSA1.2-EH and to inquire about pricing, please contact us via Live Chat or email us at sales@router-switch.com. We are here to assist you with any questions you may have.
Dahua PHSA1.2-EH Specification
PHSA1.2-EH Specifications |
|
| Brand | Dahua |
| Model | PHSA1.2-EH |
| Product Type | Indoor LED Display |
| Pixel Pitch | 1.2 mm |
| LED Type | SMD (Surface-Mounted Device) |
| Brightness | 600 nits |
| Refresh Rate | 3840 Hz |
| Viewing Angle | 160(horizontal), 140(vertical) |
| Resolution | 1920 x 1080 (Full HD) |
| Contrast Ratio | 5000:1 |
| Input Voltage | 100-240V AC, 50/60Hz |
| Power Consumption (Max) | 450W/m2 |
| Power Consumption (Avg) | 150W/m2 |
| Operating Temperature | -20C to 50C (-4F to 122F) |
| Storage Temperature | -40C to 60C (-40F to 140F) |
| Humidity | 10-90% RH |
| Signal Input | DVI, HDMI, DP |
| Signal Output | HUB75 |
| Control System | Novastar control system |
| Certification | CE, FCC, RoHS |
| Ingress Protection | IP30 |
