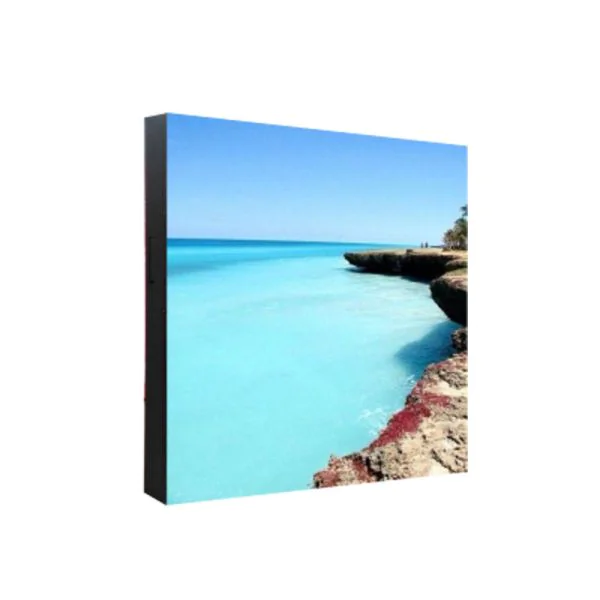

The Dahua PHOA6-EH is a state-of-the-art Outdoor Fixed LED designed to deliver exceptional visual performance and reliability in a variety of settings. Known for its durability and high-quality display capabilities, the PHOA6-EH from Dahua is perfect for public spaces, commercial venues, and outdoor advertising. It offers a robust solution for those seeking advanced technological features coupled with energy efficiency.
Quick Spec
| Brand | Dahua |
| Product Name | PHOA6-EH |
| Type | Outdoor Fixed LED |
| Pixel Pitch | 6mm |
| Brightness | 6000 nits |
| Refresh Rate | 1920Hz |
Product Features
- High brightness of 6000 nits ensures visibility even in direct sunlight.
- Durable design suitable for outdoor environments.
- Energy-efficient LED technology.
- Wide viewing angle for optimal visibility from different perspectives.
- High refresh rate of 1920Hz for smooth, flicker-free visuals.
Product Applications
- Outdoor advertising displays in urban environments.
- Public announcements and information boards in parks and squares.
- Commercial displays for retail stores and shopping centers.
Supported Options
| Control System | NovaStar MCTRL600 |
| Power Supply | Mean Well RSP-320-5 |
| Mounting Frame | Dahua DX-FRAME1 |
Compare to Similar Items
| Model | Differences |
| Dahua PHOA4-EH | 4mm pixel pitch, higher resolution |
| Dahua PHOB8-EH | 8mm pixel pitch, lower resolution |
| Dahua PHOA10-EH | 10mm pixel pitch, larger viewing distance |
Get more information
For further details, contact us through Live Chat or via email at sales@router-switch.com. Check ‘Dahua PHOA6-EH’ price and ‘PHOA6-EH datasheet’, buy ‘Dahua Outdoor Fixed LED’ with best price and fast shipping. Free Live Chat support is available.
Dahua PHOA6-EH Specification
PHOA6-EH Specifications |
|
| Brand | Dahua |
| Model Name | PHOA6-EH |
| Product Type | Outdoor Fixed LED |
| Pixel Pitch | 6mm |
| Brightness | 6000 nits |
| Refresh Rate | 1920Hz |
| Module Size | 320mm x 320mm |
| Resolution | 160 x 160 pixels |
| Viewing Angle | 140°(H)/140°(V) |
| Lifespan | 100,000 hours |
| Power Consumption (Max/Avg) | 650W/?O / 325W/?O |
| Ingress Protection | IP65 (front) / IP54 (back) |
| Operating Temperature | -20°C to 50°C |
| Humidity | 10%~90% RH |
| Signal Input | DVI, HDMI, SDI |
| Control System | NovaStar |
| Mounting Type | Fixed Installation |
| Cabinet Material | Aluminum |
| Maintenance Type | Rear Access |
| Control Distance | 100 meters (Unshielded), 500 meters (Shielded) |
| Certification | CE, RoHS, FCC |
