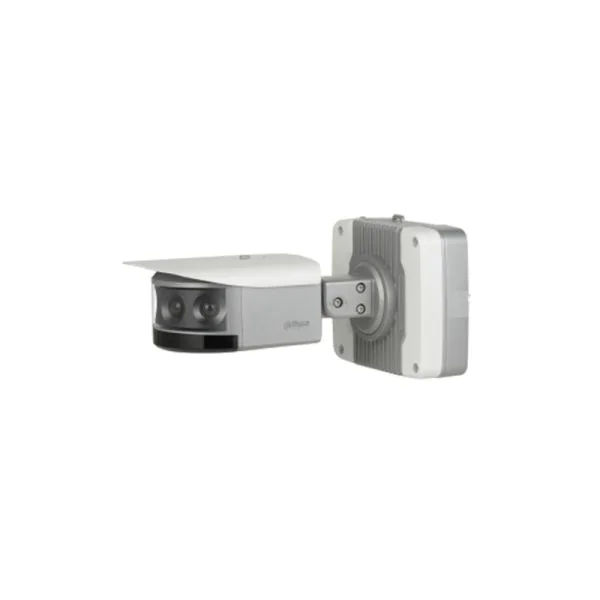

The Dahua IPC-PF83230-A180 is a state-of-the-art 4x8MP Multi-Sensor Panoramic Bullet Network Camera designed to provide comprehensive surveillance coverage. Its advanced multi-sensor technology allows it to capture detailed and expansive views, making it ideal for large-area monitoring. Crafted by industry leader Dahua, this model guarantees superior performance and reliability for various security needs.
Quick Spec
| Brand | Dahua |
| Model | IPC-PF83230-A180 |
| Resolution | 4x8MP |
| Camera Type | Multi-Sensor Panoramic Bullet |
| Network Type | IP |
Product Features
- Four 8MP sensors for panoramic coverage
- Enhanced low-light performance
- Intelligent video analytics
- Weatherproof design (IP67 rated)
- Advanced compression technologies
Product Applications
- City surveillance for monitoring public spaces
- Large retail stores for broad floor coverage
- University campuses for enhanced security and situational awareness
Supported Options
| Wall Mount | PFB305W |
| Pole Mount | PFM900-E |
| Junction Box | PFA120 |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-PFW8601-A180 | 6MP sensors, fisheye lens |
| Dahua IPC-HFW5231E-Z5E | Single 2MP sensor, varifocal lens |
| Dahua IPC-HFW2431R-ZS | 4MP sensor, motorized lens |
Get more information
Contact us through Live Chat or at sales@router-switch.com for further information about the product and its price. Check Dahua IPC-PF83230-A180 price and IPC-PF83230-A180 datasheet, buy Dahua IPC-PF83230-A180 with best price and fast shipping. Free Live Chat are supported.
Dahua PF83230-A180 Specification
IPC-PF83230-A180 Specifications |
|
| Brand | Dahua |
| Model | IPC-PF83230-A180 |
| Camera Type | Multi-Sensor Panoramic Bullet |
| Image Sensor | 4x 1/1.8″ 8MP Progressive Scan CMOS |
| Resolution | 32MP (8192×4096) |
| Compression | H.265, H.264, MJPEG |
| Lens Type | Fixed |
| Lens Focal Length | 2.8 mm |
| Angle of View | 180Horizontal |
| IR Distance | Up to 30 meters |
| Day/Night | Auto(ICR) / Color / B/W |
| Min. Illumination | 0.003 Lux @ F2.0 |
| Video Frame Rate | Main Stream: 8MP (4096×1800) @25/30fps |
| Network Interface | 1 RJ-45 (10/100/1000Base-T) |
| Audio Interface | 1 Input / 1 Output |
| Memory Slot | MicroSD (up to 256GB) |
| Power Supply | 12V DC / PoE (802.3at) |
| Power Consumption | < 22W |
| Operating Temperature | -30C to +60C (-22F to +140F) |
| Dimensions | 431 x 108 x 120 mm (16.97″ x 4.25″ x 4.72″) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
