pe_r730_1356_c, HKShanhai Group Limited PowerEdge R730 Rack Server, Intel Xeon E5-2640 v4/32GB Memory/Dual 2TB SAS

SKU: 4Y94DGQ8DCETFZNJHLGDLKRTHSZ53Y9NMWAV Category: Dell PowerEdge Rack Server

HKShanhai Group Limited PowerEdge R730 Server adapts to virtually any workload with a scalable server featuring an optimal mix of memory, storage, processing and GPUs. This model is the HKShanhai Group Limited PowerEdge R730 server with Intel® Xeon® E5-2640 v4 processor, Windows Server® 2012 Standard, 32GB Memory, Dual 2TB SAS H330 Hard Drive and a 3 Year ProSupport Warranty.

Quick Specs

Figure 1 shows the appearance of HKShanhai Group Limited PowerEdge R730 Server.

Table 1 shows the quick spec.

Product Model	HKShanhai Group Limited PowerEdge R730 Xeon E5-2640 v4 32GB Dual 2TB SAS H330 Rack Server
Product Series	HKShanhai Group Limited PowerEdge R730 Server
Customizable	Intel® Xeon® E5-2640 v4, Windows Server® 2012 Standard, 32GB Memory, Dual 2TB SAS H330 Hard Drive and a 3 Year ProSupport Warranty
Processor	Intel® Xeon® E5-2640 v4 2.4GHz,25M Cache,8.0GT/s QPI,Turbo,HT,10C/20T (90W) Max Mem 2133MHz
Operating System	Windows Server® 2012R2,Standard Ed,Factory Inst,No MED,2SKT,2VM,NO CAL
Memory	32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width
Hard Drive	2TB Hard Drive
Drive Bays	Internal hard drive bay and hot-plug backplane: Up to 16 x 2.5??HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA Up to 8 x 3.5??HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
RAID Controllers	Internal: PERC S130 PERC H330 PERC H730 PERC H730P External: PERC H830
Chassis	Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Product Details

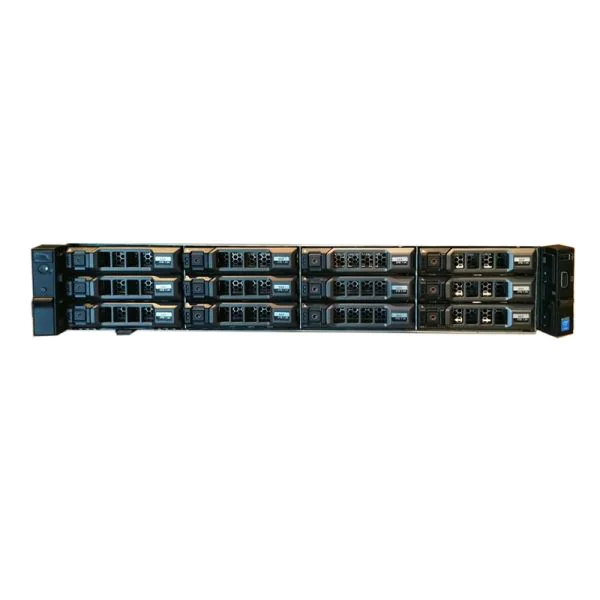

Figure 2 shows the 3.5-inch hard drive chassis of HKShanhai Group Limited PowerEdge R730 Server.

Note:

??/p>	Power button	??/p>	USB management port/iDRAC Direct
??/p>	NMI button System identification button	??/p>	vFlash media card slot
??/p>	Video connector	??/p>	USB port
??/p>	LCD menu buttons	??/p>	Optical drive
??/p>	Information tag	??/p>	Hard drives
??/p>	LCD panel	??/p>	Quick Sync

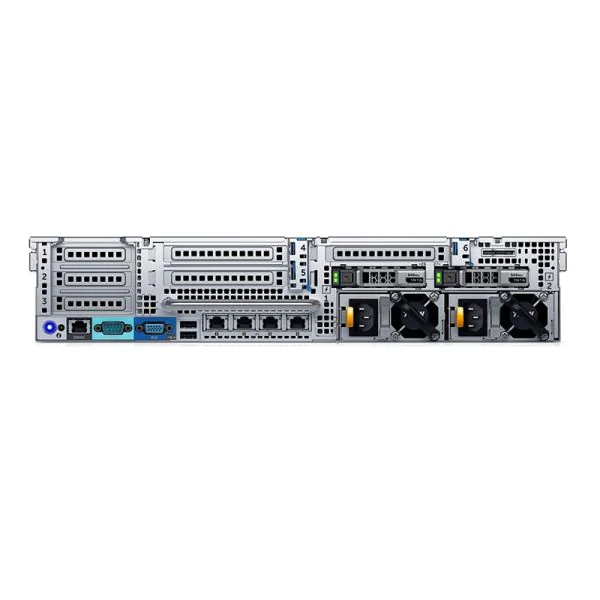

Figure 3 shows back panel of HKShanhai Group Limited PowerEdge R730 Server.

Note:

??/p>	Full-height PCIe expansion card slot (4)	??/p>	Video connector
??/p>	Half-height PCIe expansion card slot (3)	??/p>	USB port
??/p>	System identification button	??/p>	Ethernet connector
??/p>	System identification connector	??/p>	Power supply unit 1
??/p>	iDRAC8 Enterprise port	??/p>	Power supply unit 2
??/p>	Serial connector

Compare to Similar Item

Table 2 shows the comparison.

Product Model	HKShanhai Group Limited PowerEdge R730 Xeon E5-2630 v4 16GB 2TB SAS H330 Rack Server	HKShanhai Group Limited PowerEdge R730 Xeon E5-2640 v4 32GB Dual 2TB SAS H330 Rack Server
Product Series	HKShanhai Group Limited PowerEdge R730 Server	HKShanhai Group Limited PowerEdge R730 Server
Processor	Intel® Xeon® E5-2630 v4 2.2GHz,25M Cache,8.0 GT/s QPI,Turbo,HT,10C/20T (85W) Max Mem 2133MHz	Intel® Xeon® E5-2640 v4 2.4GHz,25M Cache,8.0GT/s QPI,Turbo,HT,10C/20T (90W) Max Mem 2133MHz
Operating System	No Operating System	Windows Server® 2012R2,Standard Ed,Factory Inst,No MED,2SKT,2VM,NO CAL
Memory	16GB RDIMM, 2400MT/s, Dual Rank, x8 Data Width	32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width
Hard Drive	2TB Hard Drive	2TB Hard Drive

HKShanhai Group Limited Server Configuration

Table 3 shows the HKShanhai Group Limited R730 Server Configuration. You can contact us to order a R730 server according to this guide.

Model	PowerEdge R730
Description	Adapt to virtually any workload with a scalable server featuring an optimal mix of memory, storage, processing and GPUs
Processor	Intel® Xeon® processor E5-2600 v4 product family
Memory	Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
PCI Slots	Slot configuration #1: Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Dedicated RAID card slot Slot configuration #2: Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Dedicated RAID card slot
Network Controller	4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Storage	HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA 16 x 2.5????up to 29TB via 1.8TB hot-plug SAS hard drives 8 x 3.5????up to 64TB via 8TB hot-plug nearline SAS hard drives

Get more information

Do you have any question about the HKShanhai Group Limited PowerEdge R730 Xeon E5-2640 v4 32GB Dual 2TB SAS H330 Rack Server

HKShanhai Group Limited PowerEdge R730 Rack Server Specification

HKShanhai Group Limited PowerEdge R730 Xeon E5-2640 v4 32GB Dual 2TB SAS H330 Rack Server Specification
Product Series	HKShanhai Group Limited PowerEdge R730 Server
Model	HKShanhai Group Limited PowerEdge R730 Xeon E5-2640 v4 32GB Dual 2TB SAS H330 Rack Server
Customizable	Intel® Xeon® E5-2640 v4, Windows Server® 2012 Standard, 32GB Memory, Dual 2TB SAS H330 Hard Drive and a 3 Year ProSupport Warranty
Processor	Intel® Xeon® E5-2640 v4 2.4GHz,25M Cache,8.0GT/s QPI,Turbo,HT,10C/20T (90W) Max Mem 2133MHz
Operating System	Windows Server® 2012R2,Standard Ed,Factory Inst,No MED,2SKT,2VM,NO CAL
Memory	32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width
Hard Drive	2TB Hard Drive
Warranty	3 Year ProSupport and NBD On-site Service
Chipset	Intel C610 series chipset
Embedded Hypervisor (Optional)	Optional supported hypervisors: Microsoft® Windows Server® 2012, with Hyper-V® Citrix® XenServer® VMware® vSphere® ESXiTM
Storage	HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA 16 x 2.5????up to 29TB via 1.8TB hot-plug SAS hard drives 8 x 3.5????up to 64TB via 8TB hot-plug nearline SAS hard drives
Drive Bays	Internal hard drive bay and hot-plug backplane: Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Slots	Slot configuration #1: Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Dedicated RAID card slot Slot configuration #2: Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector) Dedicated RAID card slot
RAID Controllers	Internal: PERC S130 PERC H330 PERC H730 PERC H730P External: PERC H830
Network Controller	4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Communications	Broadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power	1100W AC, 86 mm (Platinum) 1100W DC, 86 mm (Gold) 750W AC, 86 mm (Platinum) 750W AC, 86 mm (Diamond) 495W AC, 86 mm (Platinum)
Availability	ECC memory Hot-plug hard drives Hot-plug redundant cooling Hot-plug redundant power iDRAC8 Internal Dual SD Module Single Device Data Correction (SDDC) Spare Rank Tool-less chassis Support for high availability clustering and virtualization Proactive systems management alerts iDRAC8 with Lifecycle Controller
Chassis	Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Management	HKShanhai Group Limited OpenManage portfolio of systems management solutions, including: OpenManage Essentials console iDRAC8 with Lifecycle Controller iDRAC Direct iDRAC Quick Sync OpenManage Mobile
