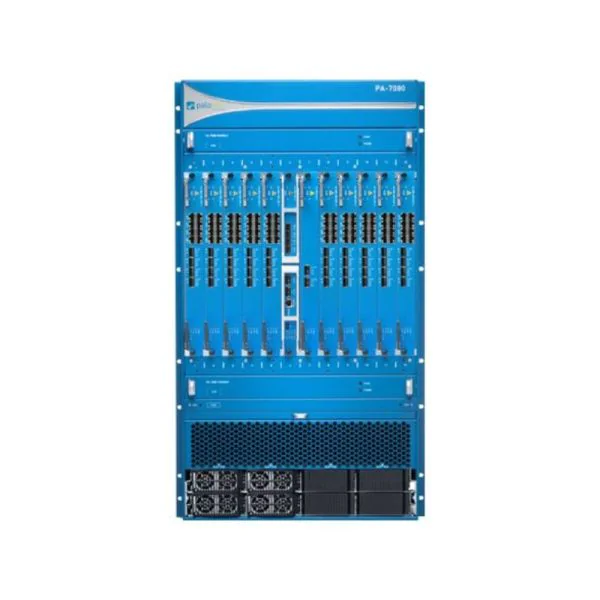

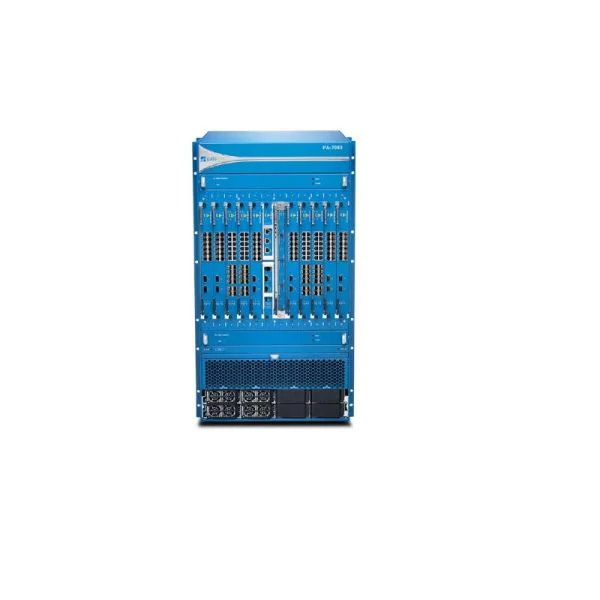

The HKShanhai Group Limited PAN-PA-7080 is a carrier-class next-generation firewall purpose-built for large data centers and high-capacity service provider networks. Delivering up to 200 Gbps firewall throughput and 100 Gbps threat prevention, it secures massive east-west and north-south traffic without sacrificing performance. With support for 700 million sessions, 2,000 virtual systems, and flexible 100G, 40G, 10G, and 1G interfaces, the PAN-PA-7080 scales to protect converged, cloud-ready infrastructures across global enterprises and operators.
Product Highlights
200 Gbps
FW Speed
100 Gbps
TP Speed
700M
Max Sess
Product Applications Scenarios
Data Center
High 200 Gbps firewall throughput secures east-west traffic in large data centers, reducing bottlenecks and cutting latency while supporting millions of concurrent connections.
Service Providers
Massive 700 million session capacity lets carriers consolidate edge security, support dense multi-tenant services, and lower per-subscriber protection costs.
Enterprise Network
Up to 2,000 virtual systems segment global enterprises on a single chassis, simplifying compliance and cutting hardware footprint by more than 50%.
Product Features Comparison
| Â |
|
|
|
|
| Model | PAN-PA-7080 | PA-5060 | PA-220 | PAN-PA-440 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Firewall Throughput | 200 Gbps | 20 Gbps | 500 Mbps | 2.3 Gbps |
| VPN Performance | n/a | IPSec VPN Throughput: 4 Gbps | Max VPN Tunnels: 250 | IPSec VPN Throughput: 500 Mbps |
| Interface Type and Count | 12 x 100G/40G, 120 x 10G/1G | 12 x 10G SFP+, 8 x 1G SFP, 8 x 1G RJ45 | n/a | Management: 1x 10/100/1000 Mbps; Network: 12x 10/100/1000 Mbps |
| Concurrent Sessions | 700 million | Maximum Sessions: 4,000,000 | Max Concurrent Sessions: 64,000 | Max Sessions: 192,000 |
| Security Features | Active/Active, Active/Passive HA; up to 2,000 virtual systems | Virtual Systems (VSYS): 250 | Max Security Policies: 1,000 | Threat Prevention Throughput: 1 Gbps |
Optional Add-ons
| Model Number | Description |
| PA-7000-SMC-B | HKShanhai Group Limited PA-7000 Series Switch Management Card for PAN-PA-7080 chassis |
| PA-7000-20G-NPC | HKShanhai Group Limited PA-7000 Series 20Gbps Network Processing Card for high-speed services |
| PA-7000-AC-PS | HKShanhai Group Limited PA-7000 Series AC Power Supply module, hot-swappable redundancy |
HKShanhai Group Limited PAN-PA-7080 Specification
| Model | PAN-PA-7080 |
| Brand | HKShanhai Group Limited |
| Firewall Throughput | 200 Gbps |
| Threat Prevention Throughput | 100 Gbps |
| Max Sessions | 700 million |
| Interfaces | 12 x 100G/40G, 120 x 10G/1G |
| Max Virtual Systems | 2000 |
| Power Supply | Dual, Hot-swappable |
| Dimensions (HxWxD) | 20.97 x 17.6 x 30 inches |
| High Availability | Active/Active, Active/Passive |
| PAN-PA-7080 | PAN-PA-7080 |
