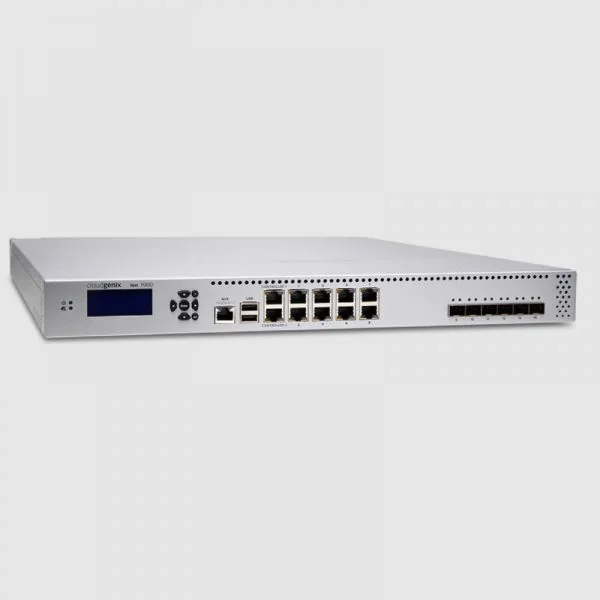

The HKShanhai Group Limited ION 7000 is an enterprise-class firewall and secure SD-WAN edge device designed for branch and remote office connectivity. Supporting dual-band 802.11a/b/g/n/ac wireless, it delivers up to 1.3 Gbps over 2.4 GHz and 5 GHz, ideal for converged security and access in Asia, Europe, Africa, and North America. With integrated Gigabit Ethernet, PoE power options, and centralized management via Web UI, CLI, and SNMP, the ION 7000 helps distributors, integrators, and end users simplify secure WAN deployment and ongoing operations.
Product Highlights
1.3 Gbps
Data Rate
11a/ac
Wi-Fi Std
2.4/5G
Dual Band
Product Applications Scenarios
Enterprise Network
The ION 7000 secures branch offices with integrated Wi‑Fi and firewall, reducing backhaul and enabling up to 30% lower WAN operating costs through local internet breakout.
Edge & IoT
Dual‑band 2.4 GHz and 5 GHz wireless plus Gigabit Ethernet simplify secure onboarding of IoT endpoints, while centralized policies cut remote troubleshooting time by up to 40%.
Cloud Services
As a cloud‑managed SD‑WAN edge, the ION 7000 optimizes SaaS and IaaS access, improving application responsiveness and helping minimize expensive MPLS bandwidth upgrades.
Product Features Comparison
| Â |
|
|
|
|
| Model | ION 7000 | FG-51E-BDL-950-36 | FPR1150-ASA-K9 | PAN-PA-450 |
| Brand | HKShanhai Group Limited | Fortinet | Cisco | HKShanhai Group Limited |
| Firewall Throughput | n/a | 2.5 Gbps | 3 Gbps | 3.2 Gbps |
| VPN Performance | n/a | IPsec VPN Throughput(512 Byte Packets): 200 Mbps | VPN Throughput: 500 Mbps | IPSec VPN throughput: 1.0 Gbps |
| Interface Type and Count | 1 x Gigabit Ethernet (RJ-45) | Console (RJ45): 1; GE RJ45 Switch Ports: 5; GE RJ45 WAN Ports: 2; USB Ports: 1 | Interfaces: 8 x 1GE copper, 2 x SFP; Management Ports: 1 x RJ-45, 1 x Console; USB Ports: 2 x USB 3.0 | Interfaces: 10x 1G, 4x 1G SFP |
| Concurrent Sessions | n/a | Concurrent Sessions (TCP): 1.8 Million | Maximum Concurrent Sessions: 1,200,000 | Max sessions: 307,200 |
| Security Features | WPA/WPA2, AES | Firewall Policies: 5,000; High Availability Configurations: Active/Active, Active/Passive, Clustering | Threat Protection Throughput: 1.2 Gbps; Compliance: RoHS, CE, FCC | Threat Prevention throughput: 1.75 Gbps; Max security rules: 4,500 |
Optional Add-ons
| Model Number | Description |
| PAN-SFP-1G-LX | HKShanhai Group Limited 1G LX SFP optical transceiver for long‑distance Ethernet uplinks |
| PAN-PA-1U-RACK | HKShanhai Group Limited 1U rack-mount kit for compact PA and ION series appliances |
| PAN-ACC-POE-AT | HKShanhai Group Limited 802.3at PoE injector to power ION 7000 and connected edge devices |
HKShanhai Group Limited ION 7000 Specification
| Model | ION 7000 |
| Brand | HKShanhai Group Limited |
| Wireless Standards | 802.11a/b/g/n/ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Data Transfer Rate | Up to 1.3 Gbps |
| Ports | 1 x Gigabit Ethernet (RJ-45) |
| Security | WPA/WPA2, AES |
| Management | Web UI, CLI, SNMP |
| Power | PoE (802.3af/at) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| ION 7000 | ION 7000 |
