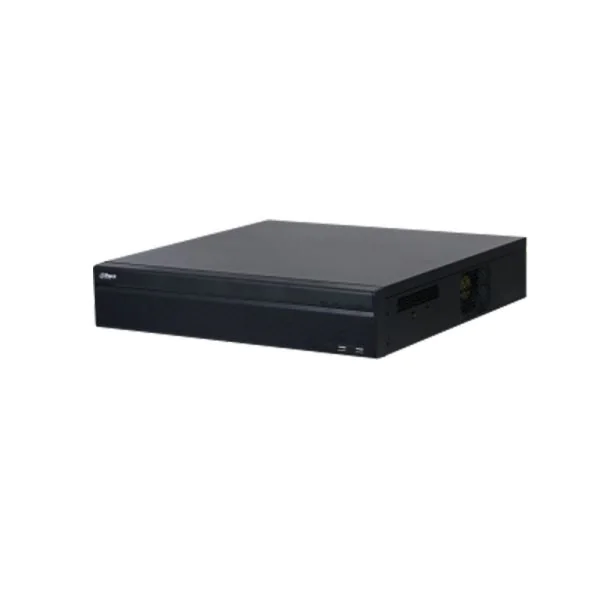

The Dahua NVR5864-R-4KS2 is a high-performance network video recorder designed to meet the demanding requirements of modern security systems. Equipped with the capability to manage up to 64 channels, this 2U 4K&H.265 Pro Network Video Recorder ensures high definition video recording and playback, offering efficient storage and robust analytics for enhanced security operations.
Quick Spec
| Brand | Dahua |
| Model | NVR5864-R-4KS2 |
| Channels | 64 |
| Form Factor | 2U |
| Compression | H.265 |
| Resolution | 4K |
Product Features
- 64-channel simultaneous video recording
- Supports 4K resolution for superior video clarity
- H.265 compression technology for efficient storage
- Hot-swappable HDD design for non-stop operation
- Advanced analytics for intelligent tracking and event detection
Product Applications
- Large-scale surveillance in commercial complexes
- City surveillance for public safety and traffic management
- Critical infrastructure monitoring such as airports and power plants
Supported Options
| Accessory | Model |
| External HDD Enclosure | DH-ESATA100 |
| Network Switch | DH-PFS4226-24ET-240 |
| Surge Protection Device | DH-PSPA1 |
Compare to Similar Items
| Model | Difference |
| NVR5864-R-4KS2/L | Enhanced low-light performance |
| NVR5432-4KS2 | Supports 32 channels instead of 64 |
| NVR608-64-4KS2 | Additional RAID support |
Get more information
For further information about the Dahua NVR5864-R-4KS2 and its pricing, please contact us through Live Chat or send an email to sales@router-switch.com.
Dahua NVR5864-R-4KS2 Specification
NVR5864-R-4KS2 Specifications |
|
| Brand | Dahua |
| Model | NVR5864-R-4KS2 |
| Channels | 64 |
| Form Factor | 2U |
| Resolution | 4K |
| Compression | H.265 |
| Max Incoming Bandwidth | 320 Mbps |
| Max Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 2 HDMI ports |
| VGA Output | 1 VGA port |
| HDD Bays | 8 SATA ports, up to 10 TB each |
| RAID Support | RAID 0/1/5/6/10/50/60 |
| Ethernet Interface | 2 Gigabit RJ-45 ports |
| USB Interface | 3 USB ports (2 USB 3.0, 1 USB 2.0) |
| Alarm In/Out | 16/8 |
| Power Supply | AC 100~240V, 50/60 Hz |
| Power Consumption | < 16.8W (without HDD) |
| Operating Temperature | -10C to +55C |
| Dimensions (W x D x H) | 440mm x 451mm x 95mm |
| Operating System | Embedded Linux |
| Audio In/Out | 1/1, RCA |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, Auto IP |
