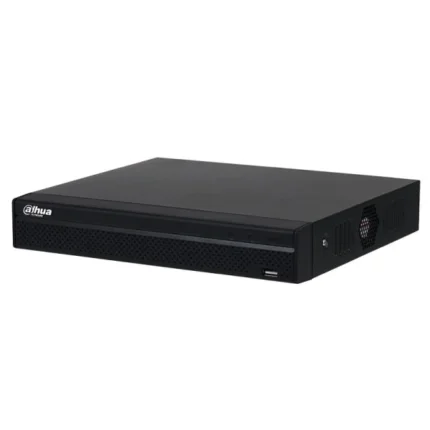

Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
NVR4104-4KS2/L |
|
Main Processor |
Industrial-grade embedded processor |
|
OS |
Embedded Linux |
|
Operation Interface |
Web/operating in local GUI |
|
Performance |
8 channels |
|
AI Search |
Search for pictures by channel, time and event type |
|
Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
|
AI Search |
Search for pictures by channel, time and face attributes |
Product Details
NVR4108-P-4KS2/L provides these features and benefits:
New 4.0 user interface, Security baseline 2.1
H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
Max. decoding capability: 8 1080p@30 fps. Supports adaptive decoding
Supports mainstream cameras of ONVIF and RTSP protocols
P2P remote surveillance, video play on mobile device
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches
Get more information
Do you have any question about the NVR4108-P-4KS2/L
Contact us now via Live Chat or sales@router-switch.com.

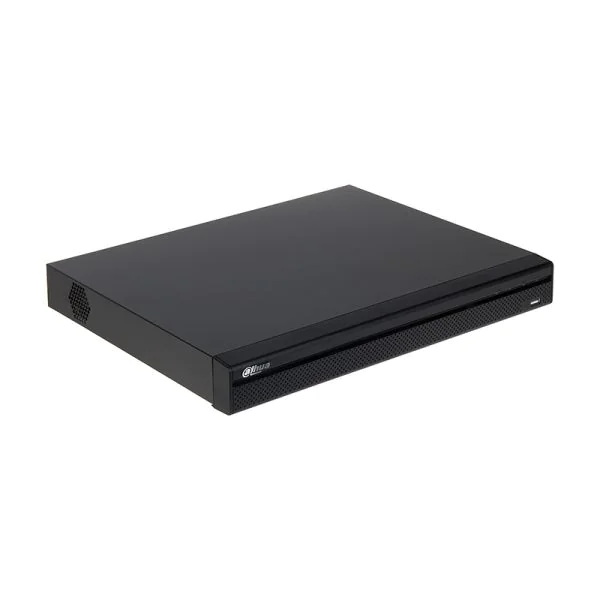

Dahua NVR4208-8P-4KS2/L Specification
NVR4208-8P-4KS2/L Specification |
|
|
System |
|
|
Main Processor |
Industrial-grade embedded processor |
|
OS |
Embedded Linux |
|
Operation Interface |
Web/operating in local GUI |
|
Perimeter Protection by Camera |
|
|
Performance |
8 channels |
|
AI Search |
Search for pictures by channel, time and event type |
|
Face Detection by Camera |
|
|
Performance |
4 channels |
|
Face Attributes |
6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
|
AI Search |
Search for pictures by channel, time and face attributes |
|
Video |
|
|
Access Channel |
8 |
|
Network Bandwidth |
Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps |
|
Resolution |
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
|
Decoding Capability |
8 x 1080p@30 fps |
|
Video Output |
1 x VGA output, 1 x HDMI output, supports simultaneous video sources output for VGA and HDMI |
|
Multi-screen Display |
1, 4, 8, 9 views |
|
Third-party Camera Access |
ONVIF; RTSP |
|
Compression |
|
|
Video |
Smart H.265/H.265/Smart H.264/H.264/MJPEG |
|
Audio |
PCM/G711A/G711U/G726/AAC |
|
Network |
|
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
|
Mobile Phone Access |
Android; iOS |
|
Interoperability |
ONVIF(profile T/S/G); CGI; SDK |
|
Browser |
Chrome; IE9 or later; firefox |
|
Record Playback |
|
|
Multi-channel Playback |
Up to 8 channels for playback |
|
Record Mode |
Manual record; alarm recording; SMD recording; smart recording |
|
Storage |
Local HDD; network |
|
Backup |
USB storage device |
|
Playback Function |
1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
|
Storage |
|
|
Disk Group |
Yes |
|
Alarm |
|
|
General Alarm |
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
|
Anomaly Alarm |
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
|
Intelligent Alarm |
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
|
Alarm Linkage |
Recording, snapshot, audio, buzzer, log, preset, and email |
|
External Port |
|
|
Audio Input |
1 x RCA input |
|
Audio Output |
1 x RCA output |
|
HDD |
1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
|
Alarm Input |
4 |
|
Alarm Output |
2 |
|
USB |
2 (1 × front USB2.0; 1 × back USB2.0) |
|
HDMI |
1 (supports up to 4K resolution output) |
|
VGA |
1 |
|
Network |
1 x RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
POE |
8 |
|
General Parameter |
|
|
Power Supply |
100 V??40 V, 47 Hz??3 HZ, 3.5 A |
|
Power Consumption |
< 10 W (HDD not included, idling) |
|
Net Weight |
2.51 kg (5.53 lb) |
|
Gross Weight |
3.79 kg (8.36 lb) |
|
Product Dimensions |
375 mm × 327.4 mm × 53.8 mm (14.76″ × 12.89″ × 2.12″) (W × L × H) |
|
Package Dimensions |
170 mm × 449 mm × 421 mm (6.69″ × 17.68″ × 16.57″) (W × L × H) |
|
Operating Conditions |
??0 °C to +50 °C (+10 °F to +122 °F) |
|
Storage Conditions |
0 °C to +40 °C (32 °F to 104 °F) |
|
Operating Humidity |
10℅~93??/p> |
|
Storage Humidity |
30%~85% |
|
Operating Altitude |
3000 m (9842.52 ft) |
|
Installation |
Desktop mounted |
|
Certifications |
CE: EN62368-1; EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
