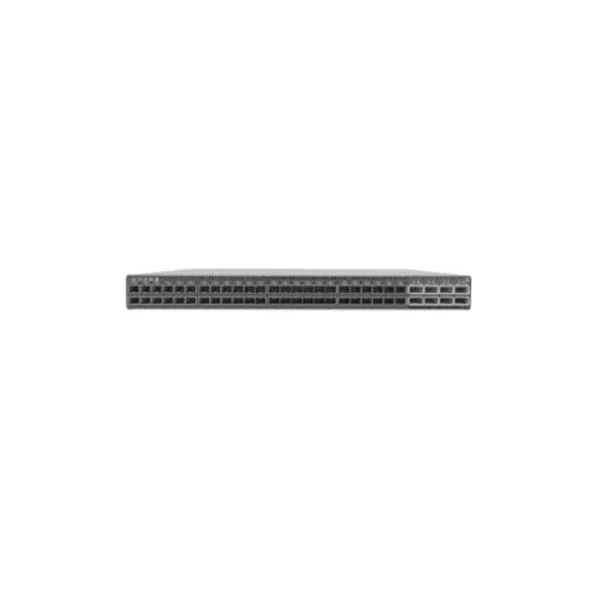

The Mellanox 920-9N112-00F7-0C2 is an enterprise-class rack-mounting switch built for modern, high-demand networking environments. This model is engineered to meet advanced Layer 3 networking needs, enabling efficient routing, segment control, and security. With its significant 25GbE SFP28 port density, it supports large volume, low-latency enterprise switch deployments, making it suited for high-performance computing and data center expansion. Integrated support for 48 x SFP28 25GbE and 8 x QSFP28 100GbE connectors provides both agile scaling and future-proof backbone performance. The switch’s architecture is purposefully designed for low latency—just 300 ns—delivering optimized data flow for mission-critical tasks in enterprise core networks. Backed by a robust dual-core x86 CPU, 8 GB of system memory, and 32 GB SSD storage, it offers powerful processing and operational resilience. Redundant (1+1) hot-swap power supplies and N+1 hot-swappable fans maximize uptime for business continuity. These characteristics, combined with high throughput of 2 Tb/s, make the 920-9N112-00F7-0C2 an exceptional solution when agility, stability, and speed are paramount for growing enterprises and solution integrators. The focus on Layer 3 features, massive 25GbE SFP28 deployment, enterprise switch reliability, and true rack-mounting capability ensures streamlined installation, high availability, and seamless integration in large-scale networking infrastructures.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | 920-9N112-00F7-0C2 | 920-9N100-00R7-0N0 | Arista CCS-720XP-24Y6-F | C9200L-48P-4X-A |
| Brand | Mellanox | Mellanox | Arista | Cisco |
| Port Configuration | 48 x SFP28 25GbE, 8 x QSFP28 100GbE | 18 x SFP28 25GbE, 4 x QSFP28 100GbE | 24 x 1 Gigabit Ethernet PoE RJ-45, 6 x 25 Gigabit Ethernet SFP28 | 48 ports full PoE+, 4x 10G fixed uplinks |
| Switching Capacity | 2 Tb/s | 850 Gb/s | 400 Gbps | 176 Gbps |
| Forwarding Rate | 2.97 Bpps | 1.26 Bpps | 259 Mpps | 261.9 Mpps |
| PoE Budget | n/a | n/a | 583W (default 650W AC PSU) | n/a |
| Stacking Capability | n/a | n/a | Yes (via SFP28, up to 200 Gbps per switch) | Stacking bandwidth 80 Gbps |
Optional Add-ons
| Model Number | Description |
| SFP-25G-SR | Mellanox SFP28 25GbE SR transceiver module for high-speed short-range connectivity. |
| MCX623105AN-ADAT | Mellanox ConnectX-6 Dual-Port 25GbE network interface card for server integration. |
| PSU-920W-AC | Mellanox 920-Series 1+1 redundant AC power supply for maximum uptime. |
Nvidia 920-9N112-00F7-0C2 Specification
| Model | 920-9N112-00F7-0C2 |
| Brand | Mellanox |
| Connectors | 48 x SFP28 25GbE, 8 x QSFP28 100GbE |
| Max 100GbE Ports | 8 |
| Max 50GbE Ports | 16 |
| Max 40GbE Ports | 8 |
| Max 25GbE Ports | 64 |
| Max 10GbE Ports | 64 |
| Throughput | 2 Tb/s |
| Packet Per Second | 2.97 Bpps |
| Latency | 300 ns |
| CPU | Dual-core x86 |
| System Memory | 8 GB |
| SSD Memory | 32 GB |
| Packet Buffer | 16 MB |
| Management Ports | 1 x 100/1000 Mbps |
| Serial Ports | 1 x RJ45 |
| USB Ports | 1 |
| Hot-Swap Power Supplies | 2 (1+1 redundant) |
| Hot-Swappable Fans | 4 (N+1 redundant) |
| Reversible Airflow Option | Yes |
| Power | 165 W, 50??0 Hz, 100??64 V AC, 4.5??.9 A |
| Size | 1.72 in x 16.84 in x 17 in (43.9 mm x 428 mm x 432 mm) |
| 920-9N112-00F7-0C2 | 920-9N112-00F7-0C2 |
