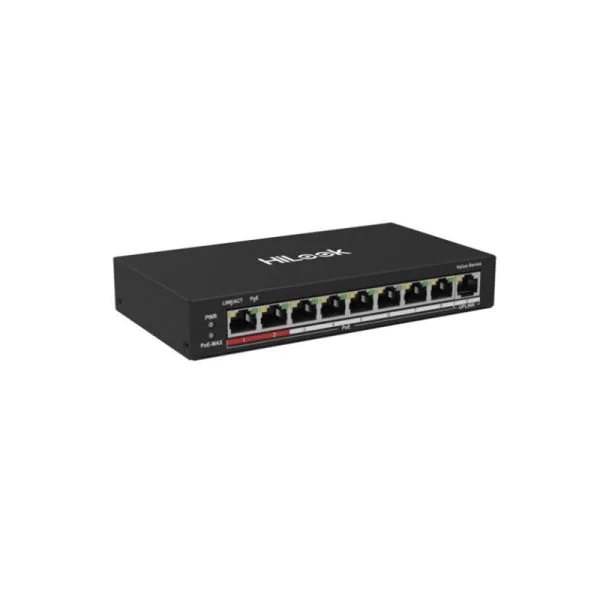

The Hikvision NS-0109P-60(B) is an 8 Port Fast Ethernet Unmanaged POE Switch designed to meet the diverse networking needs of businesses. Ideal for small to medium-sized enterprises, this robust switch offers seamless connectivity and power over Ethernet (POE) functionality. With the capacity to power connected devices, it ensures efficient and streamlined networking operations.
Quick Spec
| Brand | Hikvision |
| Model | NS-0109P-60(B) |
| Ports | 8 Fast Ethernet ports |
| POE Budget | 60W |
| Switching Capacity | 1.8Gbps |
Product Features
- Eight 10/100Mbps ports with full duplex support
- 60W total POE power budget
- Compliant with IEEE 802.3af/at standards
- Fanless design for silent operation
- Plug and play installation with no configuration required
Product Applications
- IP surveillance systems in small to medium-sized businesses
- Wireless access point deployment in offices
- VoIP phones for enterprise communication networks
Supported Options
| Adapter | DSA-60P-48 |
| Mounting Kit | MK-1405 |
| POE Injector | PI-300AT |
Compare to Similar Items
| Model | Differences |
| Hikvision DS-3E0105P-E | 5 ports, 40W POE budget |
| TP-Link TL-SF1008P | 8 ports, 53W POE budget, limited to 100Mbps |
| Cisco SF110D-08HP | 8 ports, 32W POE budget, fanless |
Get more information
Check Hikvision NS-0109P-60(B) price and NS-0109P-60(B) datasheet, buy Hikvision NS-0109P-60(B) with best price and fast shipping. Free Live Chat are supported. For further information, contact us through Live Chat or email us at sales@router-switch.com.
Hikvision NS-0109P-60(B) Specification
NS-0109P-60(B) Specifications |
|
| Brand | Hikvision |
| Model | NS-0109P-60(B) |
| Number of Ports | 8 |
| Port Type | Fast Ethernet |
| Switch Type | Unmanaged |
| PoE Ports | 8 |
| Total PoE Power Budget | 60W |
| Standard Compliance | IEEE 802.3af/at |
| Switching Capacity | 1.8 Gbps |
| MAC Address Table | 1K |
| Forwarding Rate | 1.34 Mpps |
| Main Chipset | Realtek RTL8309G |
| Input Voltage | DC 52V |
| Dimensions | 180 x 140 x 45 mm |
| Operating Temperature | 0��C to 40��C |
| Storage Temperature | -40��C to 70��C |
| Operating Humidity | 10% to 90% non-condensing |
| LED Indicators | Power, Link/Act, PoE |
| Certifications | CE, FCC |
| MTBF | 100,000 hours |
| Casing | Metal |
