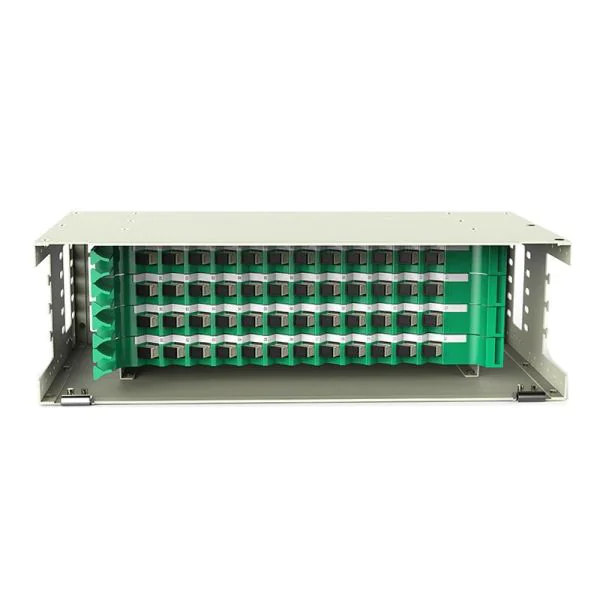

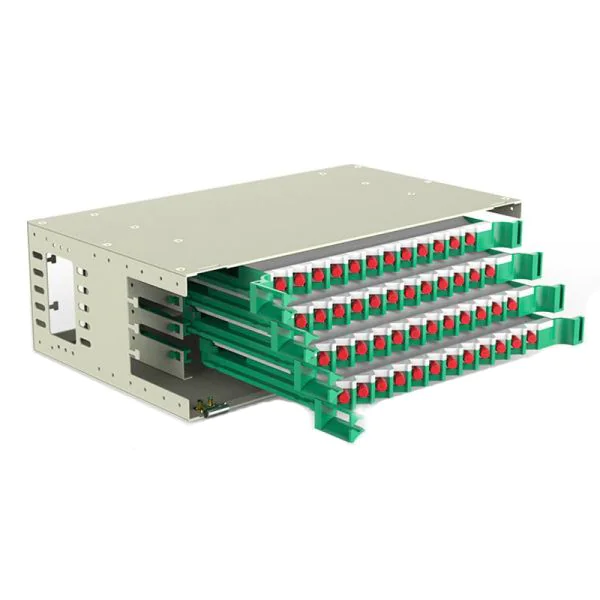

The Neutral-ODU-A-48C from Default brand is a high-performance ODF unit box designed for efficient fiber optic management. Offering superior flexibility with optional adapters (SC, LC, FC, E2000) and a 48-core capacity, it’s perfect for data centers and telecommunications setups. Ideal for network engineers and procurement personnel aiming to bolster their infrastructure.
Neutral-ODU-A-48C Product Highlights
- 48-core capacity
- Optional adapters

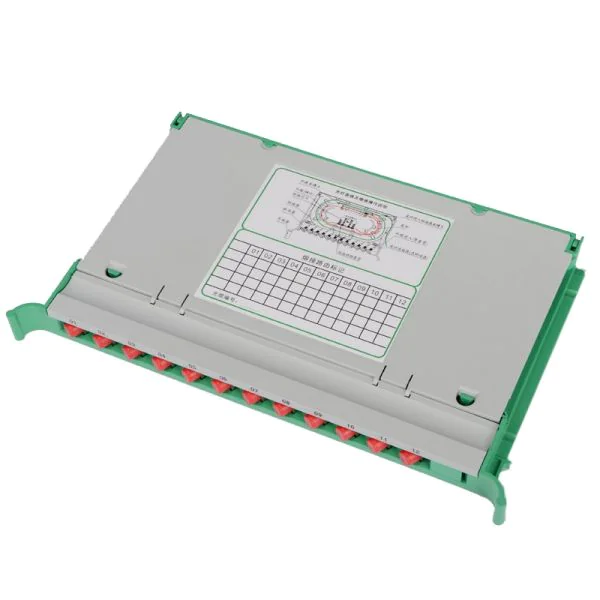

- Include welding module tray
- Compact A-type box
- Optical pigtail not included
Product Features Comparison
| Model | Neutral-ODU-A-48C | FiberHome OTB-144A | Huawei ODF-EF-WY | ZTE ODF-FX-A | Corning FSU-120 | Molex DPO-240 | 3M FSU-180 |
|---|---|---|---|---|---|---|---|
| Core Capacity | 48 | 144 | 288 | 96 | 120 | 240 | 180 |
| Adapter Types | SC, LC, FC, E2000 | SC, LC | LC, FC | SC, LC, FC | LC, SC | LC, E2000 | SC, FC |
| Welding Module Tray | Included | Not included | Included | Not included | Included | Included | Not included |
| Box Type | A-type | Rack-mount | Wall-Mount | Rack-mount | A-type | Wall-Mount | Rack-mount |
| Optical Pigtail | Not included | Included | Not included | Included | Included | Not included | Included |
Neutral-ODU-A-48C Product Application Scenarios
- Data centers
- Telecommunications rooms
- Enterprise network setups
Optional Add-ons
| Model | Description |
|---|---|
| SC-APC-ADPT | SC adapter with APC polish |
| LC-UPC-ADPT | LC adapter with UPC polish |
| FC-LC-PTL | FC to LC optical patch cord |
Get More Information
Discover unbeatable prices and fast shipping for the Default Neutral-ODU-A-48C. Access the detailed Neutral-ODU-A-48C datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
Other ODU-A-48C Specification
Neutral-ODU-A-48C Specifications |
|
| Brand | Default |
| Product Name | Neutral-ODU-A-48C |
| Product Type | ODF Unit Box |
| Core Capacity | 48 Core |
| Welding Module Tray | Included |
| Adapter Options | SC, LC, FC, E2000 (optional) |
| Optical Pigtail | Not Included |
| Material | High-Quality Metal |
| Color | Gray |
| Dimensions (mm) | 430 x 300 x 150 |
| Mounting Type | Rack Mount |
| Number of Ports | 48 |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -45°C to 75°C |
| Humidity | ??95% (non-condensing) |
| Compliance | RoHS, REACH |
| Protection Level | IP20 |
| Connector Type | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, E2000/UPC |
| Installation Method | Semi-Flush, Surface |
| Service Life | 25 Years |
| Application | Telecommunications, Datacenters, Optical Networks |
