HKShanhai Group Limited NetEngine NE05E-SI series Mid-range Service router NECM00HSAP00 supports 12Gbps System capacity, 4 * Gigabit Ethernet ports and 4 ports of PoE+ supporting. It is cloud service architecture design oriented, large cache to ensure the best service experience; IP pipeline firmness and flexibility, support IP soft pipes for statistical multiplexing to improve resource efficiency and IP hard pipe exclusive resources to ensure the best customer experience.
By utilizing SDN technology, the routing control plane of HKShanhai Group Limited NE05E can be moved to the aggregation layer router for unified management, the NE05E device can be virtualized as aggregation layer remote boards to achieve centralized control, and all network operations for edge routers can concentrate on the aggregation routers, so as to simplify the network, improve operation and maintenance efficiency.
Quick Specs

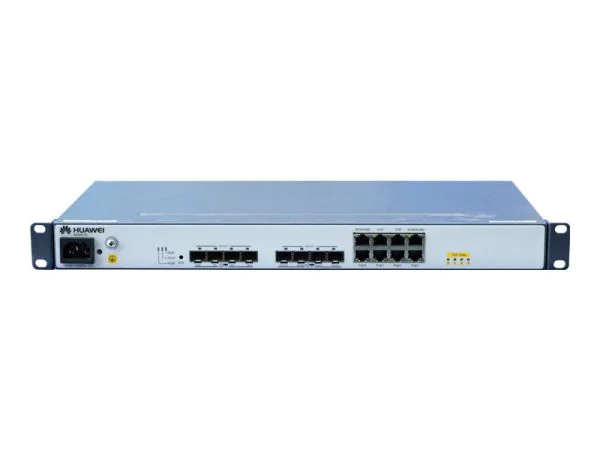

Figure 1 shows the appearance of HKShanhai Group Limited Router – NECM00HSAP00.
?
Table 1 shows the Quick Specs.
|
Product Code |
HKShanhai Group Limited Router – NECM00HSAP00 |
|
Forwarding Capacity |
88 Gbit/s |
|
Forwarding Capability (IMIX) |
37.2 Mpps |
|
Interfaces |
4 x GE(O) + 4 x GE/FE(O) + 4 x GE/FE(E) |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Slots |
none |
|
Power COM |
35W |
|
Weight |
3 kg |
|
Dimensions (W x D x H) |
44.45 mm x 442 mm x 220 mm (1U) |
Compare to Similar Items
Table 2 shows the comparison between NECM00HSAP00 and NECM00HOST06.?
|
Model |
NECM00HSAP00 |
|
|
Forwarding Capacity |
88 Gbit/s |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
37.2 Mpps |
17.85 Mpps |
|
Interfaces |
4 x GE(O) + 4 x GE/FE(O) + 4 x GE/FE(E) |
10 GE/GE/FE, Smart E1/T1, Channelize STM-1, GPON, XDSL, RS232, RS485, FXO, FSO, E&M, and X.21/V.35/X.24, etc. |
|
Slots |
none |
1 MPU 2 FICs |
|
Weight |
3 kg |
4.8 kg |
|
Dimensions (W x D x H) |
44.45 mm x 442 mm x 220 mm (1U) |
44.45 mm x 442 mm x 220 mm (1U) |
Get more information
Do you have any?question?about?the?NECM00HSAP00
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited NECM00HSAP00 Specification
NECM00HSAP00 Specification |
|
|
Forwarding Capacity (IPv4/IPv6) |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
17.856 Mpps |
|
Interfaces |
4 x GE(O) + 4 x GE/FE(O) + 4 x GE/FE(E) |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Power COM |
35W |
|
Voltage |
-38.4V to -72V DC 100V to 240V AC |
|
Slots |
0 |
|
Dimensions (H x W x D) |
44.45 mm x 442 mm x 220 mm (1U) |
|
Weight |
3 kg |
|
Operating Temperature |
-20°C to 60°C |
|
Humidity |
5% RH to 95% RH, non-condensing |
