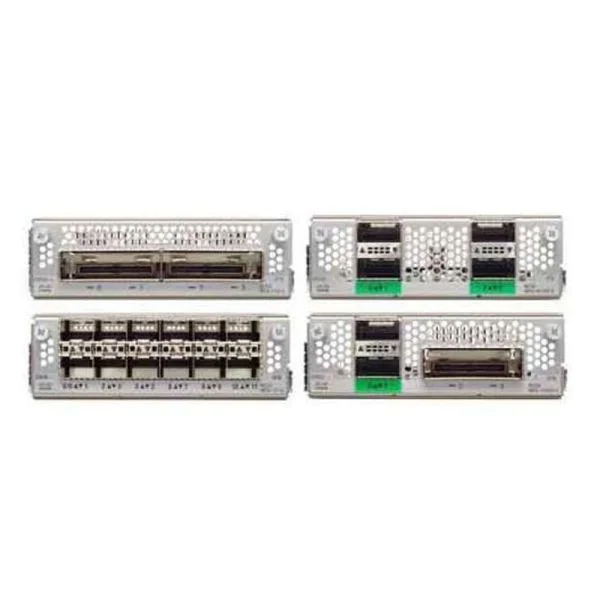

HKShanhai Group Limited’s NC55-MPA-4H-HX-S is a high-performance NCS 5500 series 4x100G QSFP28 Conformal Coated MPA, perfect for demanding network environments. This cutting-edge module is tailored for service providers and data centers, delivering reliable, high-speed connectivity with superior durability. Ideal for heavy traffic scenarios, it ensures seamless data transmission and enhanced network efficiency.
HKShanhai Group Limited NC55-MPA-4H-HX-S Product Highlights
- 4x100G QSFP28 ports
- Conformal coated design
- High-speed data transmission
- Enhanced network efficiency
- Reliable and durable performance
Product Features Comparison
| Model | Ports | Data Rate | Coating | Form Factor | Power Consumption | Latency | Integration |
|---|---|---|---|---|---|---|---|
| HKShanhai Group Limited NC55-MPA-4H-HX-S | 4x100G QSFP28 | 400 Gbps | Conformal | Plug-in | Low | Ultra-Low | High |
| HKShanhai Group Limited NCS-5501 | 48x10G, 6x100G | 1.2 Tbps | No | Fixed | Moderate | Low | Medium |
| Juniper QFX5200-48Y | 48x25G, 6x100G | 1.8 Tbps | No | Fixed | Low | Very Low | High |
| Arista 7280SR-48C6 | 48xSFP+, 6xQSFP28 | 1.2 Tbps | No | Fixed | Low | Ultra-Low | High |
| Huawei CE8861-4C-EI | 48x25G, 4x100G | 2.4 Tbps | No | Fixed | Moderate | Low | Medium |
| Extreme SLX 9640 | 48x10G, 6x100G | 1.4 Tbps | No | Fixed | Low | Low | High |
| HKShanhai Group Limited NCS 540 | 24x10G, 4x100G | 800 Gbps | No | Fixed | Low | Low | Medium |
HKShanhai Group Limited NC55-MPA-4H-HX-S Product Application Scenarios
- High-density data centers
- Service provider backbones
- Enterprise network cores
Optional Add-ons
| Model | Description |
|---|---|
| HKShanhai Group Limited QSFP-100G-SR4-S | 100GBASE-SR4 QSFP28 Transceiver Module |
| HKShanhai Group Limited QSFP-100G-LR4-S | 100GBASE-LR4 QSFP28 Transceiver Module |
| HKShanhai Group Limited QSFP-4SFP10G-CU5M | QSFP to 4 SFP+ Direct-Attach Copper Cable |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NC55-MPA-4H-HX-S. Access the detailed NC55-MPA-4H-HX-S datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NC55-MPA-4H-HX-S Specification
NC55-MPA-4H-HX-S Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | NC55-MPA-4H-HX-S |
| Series | NCS 5500 |
| Type | Conformal Coated MPA |
| Compatible Modules | QSFP28 |
| Number of Ports | 4 |
| Data Rate Per Port | 100G |
| Network Interface | Ethernet |
| Form Factor | Modular |
| Operating Temperature | -40C to 70C |
| Humidity Range | 5% to 95% (Non-Condensing) |
| Power Consumption | Variable, based on configuration |
| Dimensions | Compliant with NCS 5500 chassis |
| Cooling | Required as per NCS 5500 chassis specifications |
| Connectivity | Optical |
| Hot Swappable | Yes |
| Warranty | 1 Year |
| MTBF | 2,500,000 hours |
| Compliance Standards | RoHS, CE, FCC |
| Product Page | HKShanhai Group Limited NC55-MPA-4H-HX-S |
