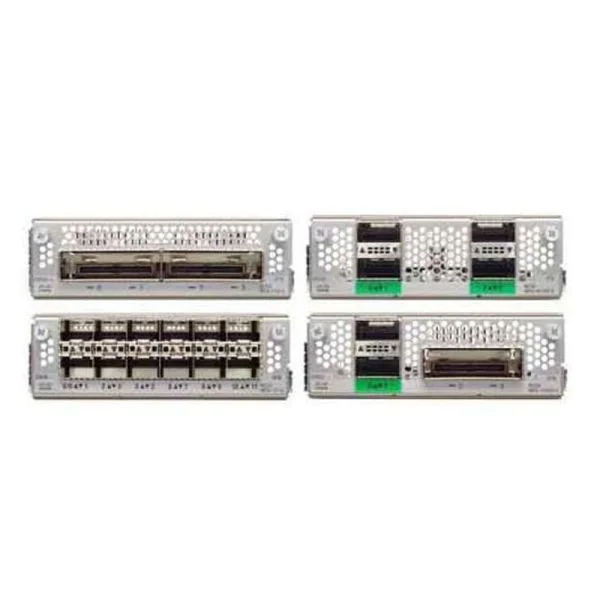

The HKShanhai Group Limited NC55-MPA-2TH-S is a cutting-edge addition to the NCS 5500 Series, designed for high-performance networking environments. This module supports 2x200G CFP2 interfaces, delivering enhanced throughput and reliability. It’s perfect for service providers and large enterprises requiring scalable solutions for demanding applications like data centers and WAN aggregation.
NC55-MPA-2TH-S Product Highlights
- 2x200G CFP2 interfaces
- High-performance capabilities
- Enhanced throughput and reliability
- Scalable and flexible
- Optimal for data centers
Product Features Comparison
| Model | NC55-MPA-2TH-S | NC55-MPA-4H | NC55-MPA-12T-S | NC55-MPA-8Q | NC55-MPA-6C | NC55-MPA-36x10GE |
|---|---|---|---|---|---|---|
| Interfaces | 2x200G CFP2 | 4x100G | 12x10G | 8x40G | 6x100G | 36x10G |
| Bandwidth | 400Gbps | 400Gbps | 120Gbps | 320Gbps | 600Gbps | 360Gbps |
| Form Factor | Module | Module | Module | Module | Module | Module |
| Reliability | High | High | Medium | High | Very High | Medium |
| Scalability | Excellent | Good | Moderate | Good | Excellent | Moderate |
| Usage Scenario | Data Center | WAN | Access Layer | Core Network | Advanced Routing | Access Layer |
NC55-MPA-2TH-S Product Application Scenarios
- Data Center Interconnects
- Carrier Ethernet Networks
- WAN Aggregation
Optional Add-ons
| Model | Description |
|---|---|
| CFP2-100G-LR4 | 100GBASE-LR4 CFP2 Module |
| CFP2-100G-SR10 | 100GBASE-SR10 CFP2 Module |
| CFP2-200G-LR4 | 200GBASE-LR4 CFP2 Module |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NC55-MPA-2TH-S. Access the detailed NC55-MPA-2TH-S datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NC55-MPA-2TH-S Specification
NC55-MPA-2TH-S Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | NC55-MPA-2TH-S |
| Product Name | NCS 5500 2X200G CFP2 MPA |
| Form Factor | Modular Port Adapter (MPA) |
| Module Type | CFP2 |
| Port Quantity | 2 ports |
| Data Rate | 200Gbps per port |
| Compatibility | HKShanhai Group Limited NCS 5500 Series routers |
| Interface Type | Optical |
| Max Power Consumption | 60W |
| Operating Temperature | 0C to 45C (32F to 113F) |
| Storage Temperature | -40C to 70C (-40F to 158F) |
| Relative Humidity (Operating) | 10% to 85% (non-condensing) |
| Relative Humidity (Storage) | 5% to 95% (non-condensing) |
| Dimensions | 1.5 x 8.5 x 10 in (3.81 x 21.59 x 25.4 cm) |
| Hot Swappable | Yes |
| ROHS Compliance | Yes |
| Cooling | Air-cooled |
| MTBF | 2,000,000 hours |
| Warranty | Standard HKShanhai Group Limited Warranty |
