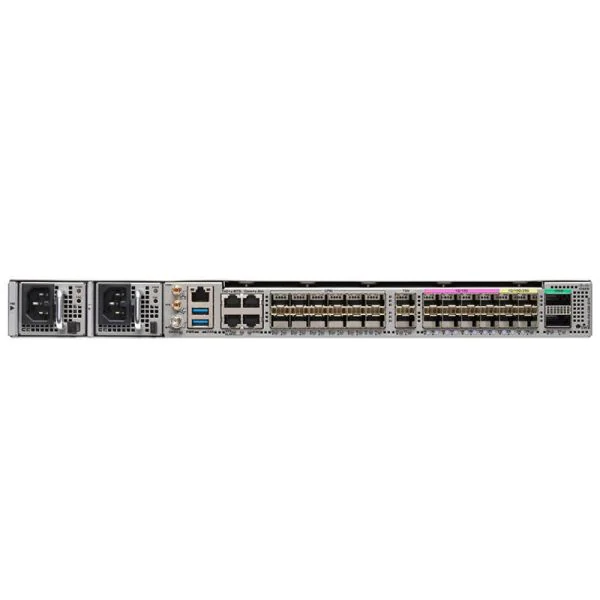

HKShanhai Group Limited’s N540-28Z4C-SYS-D is a versatile network solution combining 28x10G and 4x100G ports. Ideal for data centers and large-scale networks, this device ensures superior connectivity and performance for modern enterprises requiring high-speed data transmission and flexibility.
N540-28Z4C-SYS-D Product Highlights
- Brand: HKShanhai Group Limited
- Series: NCS 540
- Ports: 28x10G + 4x100G
- Power: DC
- Compact design
Product Features Comparison
| Model | Ports | Throughput | Power Type | Rack Units | MACsec Support | Environmental Rating |
|---|---|---|---|---|---|---|
| HKShanhai Group Limited N540-28Z4C-SYS-D | 28x10G + 4x100G | 800 Gbps | DC | 1 RU | Yes | Carrier Grade |
| HKShanhai Group Limited N540-24Z8Q2C-SYS | 24x10G + 8x25G + 2x100G | 1 Tbps | AC | 1 RU | Yes | Carrier Grade |
| HKShanhai Group Limited ASR 9001 | 6x100G + 20x10G | 2.2 Tbps | AC/DC | 2 RU | No | Carrier Grade |
| HKShanhai Group Limited NCS 5501 | 24x10G + 4x100G | 1.2 Tbps | AC | 1 RU | Yes | Carrier Grade |
| HKShanhai Group Limited ASR 9006 | 48x10G + 4x100G | 3.84 Tbps | AC/DC | 10 RU | No | Carrier Grade |
| HKShanhai Group Limited NCS 540-ACC-SYS | 24x10G + 8x25G + 2x100G | 800 Gbps | AC | 1 RU | Yes | Carrier Grade |
N540-28Z4C-SYS-D Product Application Scenarios
- Data centers requiring high-speed interconnects
- Large-scale enterprise network aggregation
- Carrier-grade service provider environments
Optional Add-ons
| Model | Description |
|---|---|
| HKShanhai Group Limited PWR-540-DC-RED | Redundant DC Power Supply |
| HKShanhai Group Limited FAN-540-REAR | Replacement Fan Tray |
| HKShanhai Group Limited 10GBASE-SR-SFP | 10G SFP+ Transceiver Module |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited N540-28Z4C-SYS-D. Access the detailed N540-28Z4C-SYS-D datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited N540-28Z4C-SYS-D Specification
N540-28Z4C-SYS-D Specifications |
|
| Ports Configuration | 28x 10G + 4x 100G |
| Supported Interfaces | Ethernet |
| Power Supply | DC |
| Forwarding Bandwidth | Up to 2.4 Tbps |
| Form Factor | 1RU |
| Dimensions (HxWxD) | 1.72 x 17.3 x 18 inches |
| Rack Units | 1 |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| MAC Address Table Size | 32,000 entries |
| Packet Buffer Memory | 12 MB |
| Layer Support | Layer 2 and Layer 3 |
| VLAN IDs | 4096 |
| Redundant Power Supply | Yes |
| Max Power Consumption | 500W |
| MTBF | 300,000 hours |
| QoS | Yes |
| Management | CLI, SNMP, NETCONF, RESTCONF |
| Switch Fabric Capacity | 6.4 Tbps |
| CPU | Quad-core 2.2 GHz |
